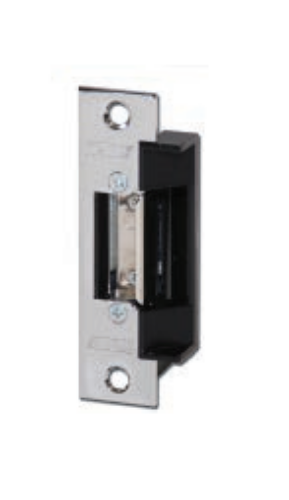

Trine 2012 Adjustable Face Plate - 4-7/8" x 1-1/4" - Brass Powder Coated

Trine 2012 Adjustable Face Plate - 4-7/8" x 1-1/4" - Brass Powder Coated

Features & Description:

For use in new or replacement,, aluminum or hollow, metal jamb installations with locksets having up to 5/8" throw, based on 1/8" door gap.

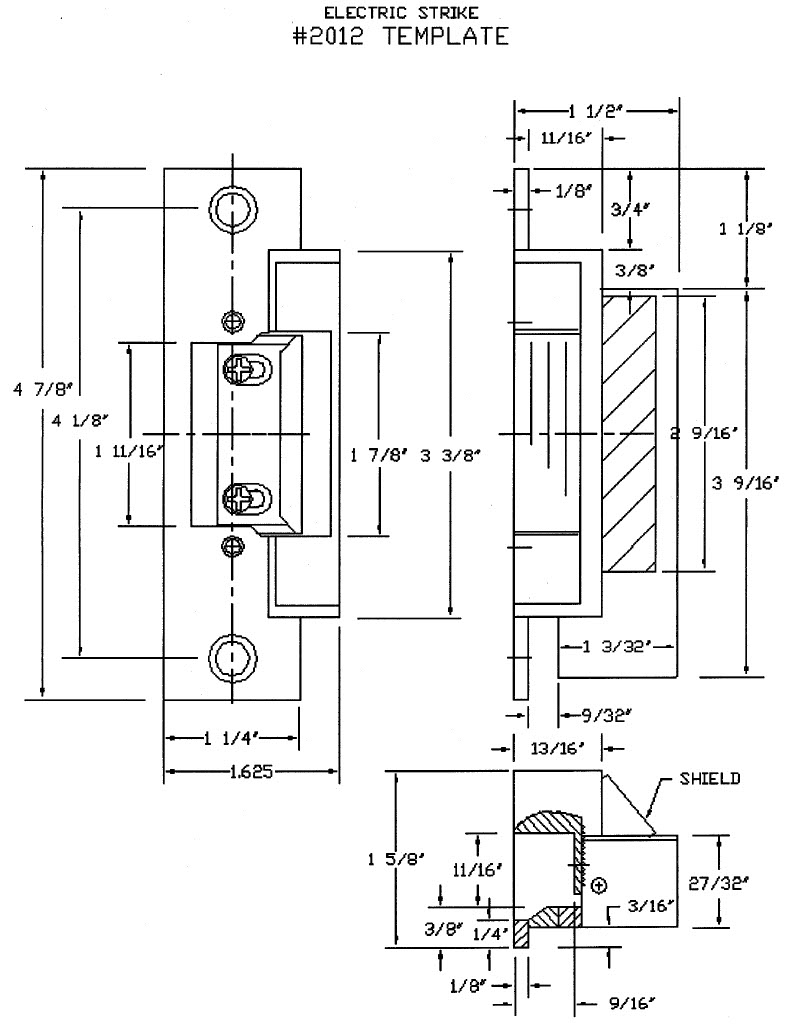

Steel Face Plate 4-7/8" x 1-1/4"

Auxiliary Ramp 3-3/8"

Mortise Backset 1-9/16"

Cavity Depth 9/16"

Cavity Width 5/8"

Cavity Height 1-11/16"

Allows adjustment for wider latch bolts & poorly aligned doors & locksets

1/8" Horizontal Latch Adjustment

Releases Under Slight Door Preload

Life Cycles - 500,000

Holding Force - 900 lbs

Solid Cast Latch - Chrome Plated

Non-Handed Operation

Model: 201212DC, 201216-24AC/DC, 201224DC, 20126-14AC/DC
