Trine 323478FX-LC Electric Strike, for Timely & Redi Frames, Fire Rated, 12/24VAC/DC, 2-3/4" and 4-7/8" Faceplates, LC-100

Timely and Redi frames have a specific ANSI cutout that most electric strikes don't fit cleanly without extensive frame modification. Installers who've put a standard electric strike into a Timely or Redi frame know the problem: the faceplate doesn't bridge the cutout properly, the frame gets overcut, or the strike body doesn't seat correctly in the opening. The Trine 323478FX-LC solves all of that. It's a fire-rated Grade 1 electric strike built specifically for Timely, Redi, Raco, and IDP frames, requiring up to 60% less frame cutting on the 478 faceplate and up to 80% less cutting on the 234 faceplate compared to installing a standard electric strike in the same frame.

This is also the smallest electric strike that fits both Timely and Redi frame ANSI cutouts. The FX designation means the kit includes the 478X-375 faceplate specifically dimensioned for Timely frame geometry, instead of the standard 478 faceplate. For all compatible electric strikes and access control hardware, view our full catalog.

What's in the 323478FX-LC Kit

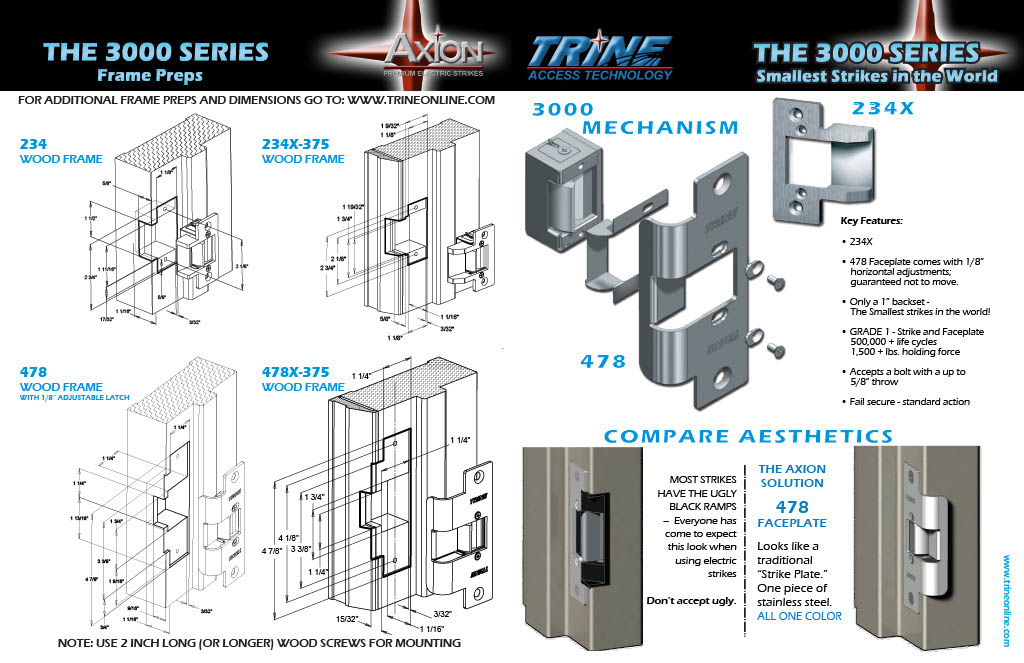

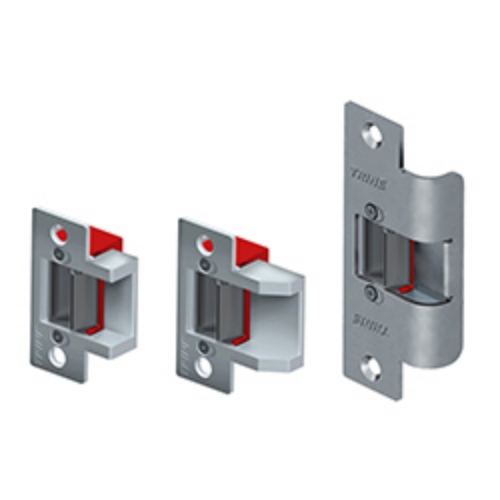

The kit ships with everything needed for the installation. One 234-26D faceplate (2-3/4" standard). One 234X-375-26D faceplate (2-3/4" with extended ramp, for Timely frame geometry). One 478X-375 faceplate in 32D Satin Stainless for Timely, Redi, Raco, and IDP frames. One 30LC Fire Rated mechanism (11 to 29 VAC/DC). One 478-32D faceplate (4-7/8" standard). One 478-CCFP Competitor Filler Plate for installations converting from a competing strike. The included faceplate variety lets the installer select the correct configuration on site without a return trip for parts.

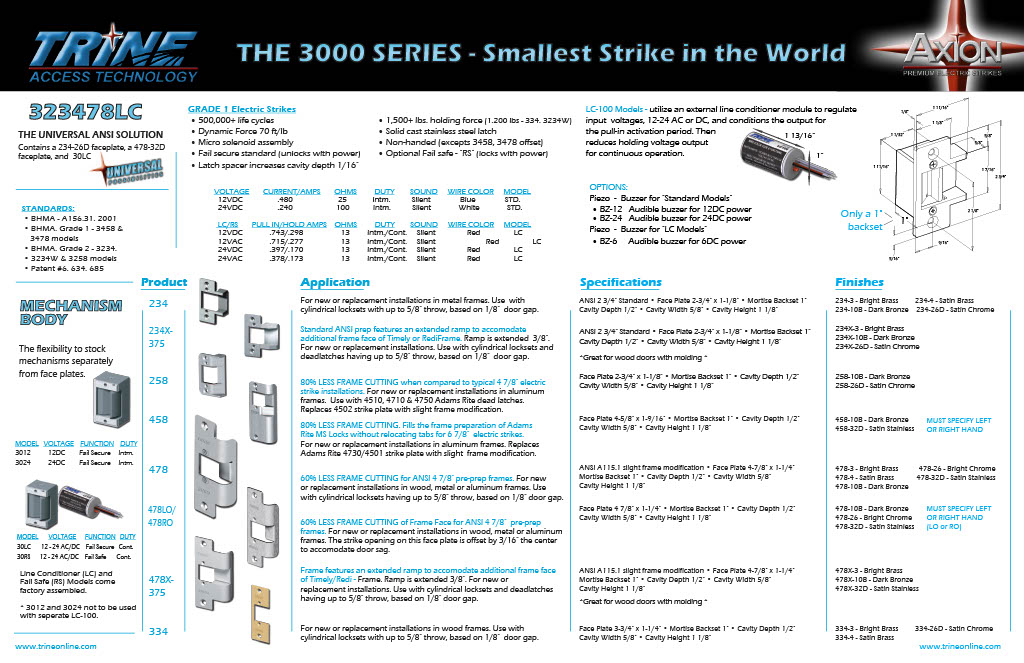

Trine 323478FX-LC Technical Specifications

SKU: 323478FX-LC. Series: Trine 3000 Series. Frame compatibility: Timely, Redi, Raco, and IDP frames. Function: Electric strike, fail secure (locked when de-energized). Fire rating: 3-hour, UL10C, Fire Tests of Door Assemblies. Grade: Grade 1, Heavy Duty (ANSI/BHMA tested). Voltage: 12V or 24V, AC or DC (11 to 29VAC/DC range on the 30LC mechanism). Surge and kickback protection: included. Construction: All solid stainless steel. Horizontal adjustment: 1/8" on both 478 and 234 faceplates. Cutting reduction: 478 faceplate requires up to 60% less frame cutting; 234 faceplate requires up to 80% less frame cutting vs. standard electric strike installation. Available finishes: 32D Satin Stainless Steel standard; DKBRZ Dark Bronze available.

Fail Secure and Fire Rating: Critical Configuration Note

The 323478FX-LC fire rating is listed and valid only in the fail-secure (FS) configuration. Fail secure means the strike is locked when de-energized: power off equals door locked. When power is applied by the access control panel, the strike releases and allows entry.

The fire listing is void when using fail-safe (RS or FA) action. Fail-safe configuration (door unlocked when power fails) is not compatible with this fire listing. If your project requires a fail-safe electric strike on a fire-rated opening, a different product is required. Confirm with your AHJ which fail mode is required for the specific opening before specifying.

The Cutting Reduction Advantage

Standard electric strikes require significant frame cutting to seat properly in the opening. On older frames like Timely and Redi installations, excessive cutting weakens the frame and creates gaps that affect both security and weather sealing. The 323478FX-LC's faceplate engineering reduces the cutting footprint dramatically: up to 60% less for the 478 faceplate and up to 80% less for the 234 faceplate. Less cutting means faster installation, less frame damage, and a cleaner final appearance.
