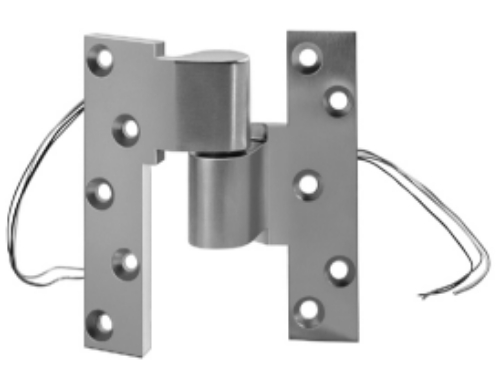

Norton Rixson EM19 8W Electrified Intermediate Pivot, 3/4 Offset, 8 Wires

Product Details

Norton Rixson *EM19 8W Electrified Intermediate Pivot, 3/4 Offset, 8 Wires*

Application:

 Offset Hung Electric Pivot for Power Transfer Handed

Description/Features:

 Not load-bearing Door and jamb portion are factory assembled and cannot be separated Always use M19 intermediate pivot to install door eight wires ElectroLynx® option available, suffix “QC#" (number of wires) 24-gauge wire is rated at 2 amps for low voltage, class II wiring applications 3/4" (19mm) offset Door edges must be beveled in 1/8" in 2" Furnished with wood and machine screws

Models:EM19 LH 8W 626, EM19 RH 8W 626, EM19LH8W626, EM19-LH-8W-626, EM19-RH-8W-626



Norton Rixson EM19 8W Electrified Intermediate Pivot, 3/4 Offset, 8 Wires

SKU: EM19 8W

In Stock

Finish *

626 - Satin Chrome
626 - Satin Chrome
613 - Oil Rubbed Bronze
613 - Oil Rubbed Bronze

Handing *

$594.84

$898.00

You saved $303.16

About this item

Electrified Intermediate Pivots are used for power transfer and/or door position monitoring.

Resources

Norton Rixson *EM19 8W Electrified Intermediate Pivot, 3/4 Offset, 8 Wires*

Application:

 Offset Hung Electric Pivot for Power Transfer Handed

Description/Features:

 Not load-bearing Door and jamb portion are factory assembled and cannot be separated Always use M19 intermediate pivot to install door eight wires ElectroLynx® option available, suffix “QC#" (number of wires) 24-gauge wire is rated at 2 amps for low voltage, class II wiring applications 3/4" (19mm) offset Door edges must be beveled in 1/8" in 2" Furnished with wood and machine screws

Models:EM19 LH 8W 626, EM19 RH 8W 626, EM19LH8W626, EM19-LH-8W-626, EM19-RH-8W-626



EM19inter
Norton Rixson EM19 8W Electrified Intermediate Pivot, 3/4 Offset, 8 Wires

Product code: EM19 8W

In Stock

$898.00

$594.84

EM19inter
Norton Rixson EM19 8W Electrified Intermediate Pivot, 3/4 Offset, 8 Wires

Product code: EM19 8W

In Stock

$898.00

$594.84
