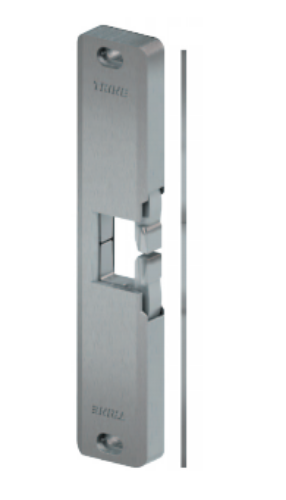

Trine 4800F Fire Rated Electric Strike For Rim Exit Device - 3/4"

About this item

Trine 4800F Fire Rated Electric Strike For Rim Exit Device - 3/4"

3 Hour fire rated electric strike For use with surface mounted rim exit devices with up to 1" throw. For use in new or replacement installations in wood or metal door frames and tight installs.

Features:

• Fail-safe/Fail-secure - field selectable (Like all electric strikes, it is not fire rated in Fail safe mode).

• Built-in electronics automatically allow 11 thru 28 AC & DC Voltage input - with surge and kickback protection

• Comes with Trines Patented 4-Pin Anchoring System for strength and stability.

• The cavity is completely open - which means the 4800F allows for a full 3/4" depth and upto a 1" throw with the included two (2) spacer plates - competitor backplates do not allow for this versatility.

• Contains a one piece locking mechanism with one Solenoid

• BHMA Grade 1 Electric Strike - 1,500,000+ Life cycles - 3,000+ lbs. Holding Force

Standards:

Warnok Hershey Fire Rated Logo

Class A, 3 Hour Single door / frame configuration

- UL10C, Fire Tests of Door Assemblies

- UBC 7-2, Uniform building Code

- CAN4 S104, Standard Method for Fire Tests of Door Assemblies NFPA 252

Issue: 1999/01/01 Standard Methods of Fire Tests of Door Assemblies

NOTE: WH fire listing is void when using fail safe action.

BHMA Grade 1 Electric Strike - 1,500,000+ Life cycles - 3,000+ lbs. Holding Force

Model: 4800FUS10, 4800FUS10B, 4800FUS3, 4800FUS4, 4800FUS32D
