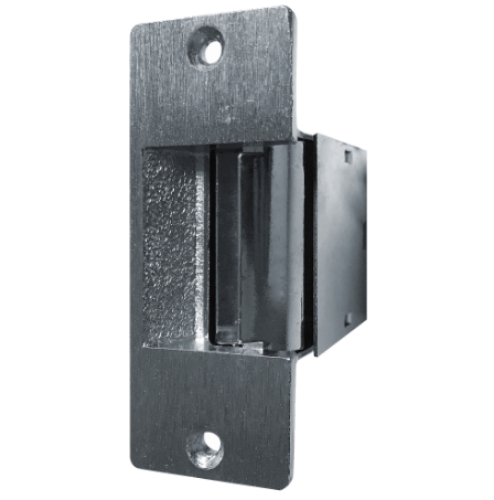

Trine S005C 8-16AC/46-DC Electric Strike - 3-1/2" x 1-3/8" - Faceplate - Satin Chrome

Trine S005C 8-16AC/46-DC Electric Strike - 3-1/2" x 1-3/8" - Faceplate*- Satin Chrome*

FEATURES:

For use in replacement installations in wood jambs and iron gates.

Use with bored cylindrical locksets having up to 3/4" throw, based on 1/8" door gap.

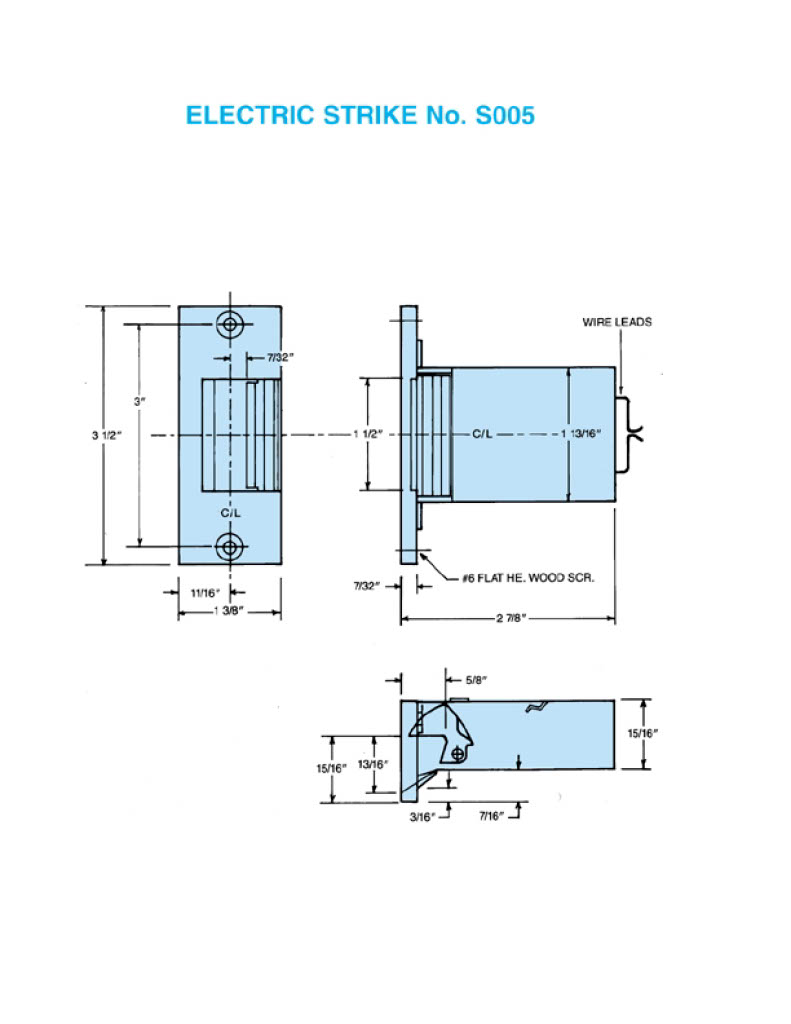

Face Plate 3-1/2" x 1-3/8"

Mortise Backset 2-7/8"

Cavity Depth 5/8"

Cavity Width 23/32"

Cavity Height 1-1/2"

Durability - 500,000 Life Cycles

Holding Force - 1000 lbs

Only 1 Moving Part in Locking Mechanism

Non-Handed Operation

Heavy Duty Latch Spring

Model: S005C-12DC, S005C8-16AC/4-6DC
