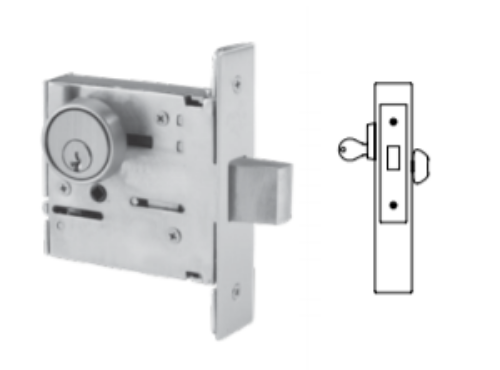

PDQ MJ134LH Extra Heavy Duty Single Cylinder (Classroom) Left Hand Mortise Cylinder Deadbolt

PDQ MJ134LH Extra Heavy Duty Single Cylinder (Classroom) Left Hand Mortise Deadbolt

Function:Single Cylinder (Classroom) Left Hand. . -Key outside extends/retracts deadbolt. -Inside cylinder turn retracts but does not extend deadbolt. -Thumbturn rotates clockwise.

ANSI: E06091 (F29).

FOR DOORS:  1-3/4" BACKSET:  2-3/4" CASE:  Steel  Dichromated for corrosion resistance FACEPLATE:  1-1/4" x 5-5/8" FRONT:  2-1/4" x 1"   -  Stainless Steel. STRIKE:  1-1/8" x 3-1/2" DEADBOLT:  1" Throw  -  Stainless Steel. THUMBTURN OPTION:  ADA Compliant. INDICATOR:  Vacant/Occupied available. HAND: Non-handed except for function MJ134 Classroom. KEYS:  Two (2) per Lock. KEYWAYS:  SCC standard (Schlage C Compatible)    Also available in keyways of other manufacturers INTERCHANGEABLE CORE:  6 or 7-pin.   Compatible with Best, Falcon & Arrow.   Large Format IC Cores compatible with Schlage. CYLINDER:  6 or 7-pin Mortise Cylinder KEYING: Options:MK, CMK or GMK .   Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA)   Can be keyed into existing master key systems FINISHES: 630 (US32D) - Satin Stainless Steel.   Also available in many other finishes.   Optional antimicrobial coating not available with 605 finish CERTIFICATIONS, LISTINGS, COMPLIANCES: UL listed for 3 hours, for single doors up to 4"0"x 8"0". Meets requirements of the Buy American Act. WARRANTY:  10-Year Limited Warranty.

PDQ MJ134, MJ134 PDQ, PDQ MJ134630, PDQ MJ134 630, 605, 606, 612, 613, 629
