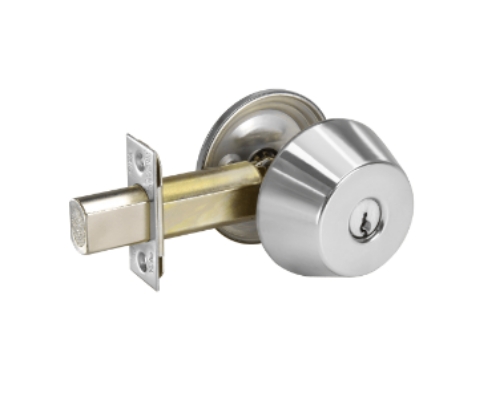

Accentra D161 Grade 1 Classroom Deadbolt, 2 3/8" Backset

Accentra *D161 *Classroom Deadbolt, Grade 1, 2-3/8" Backset, 2-1/4" X 1" Face, Satin Chrome

Function - D161

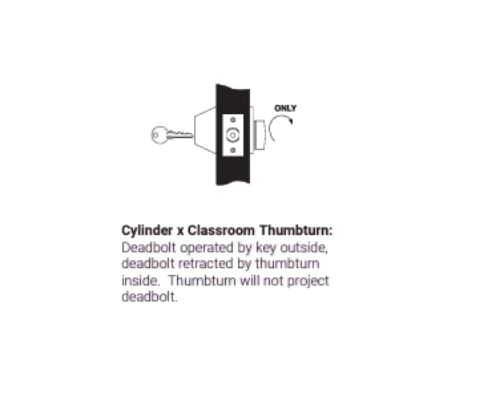

Deadbolt operated by key outside.Blank rose with exposed screws inside.SFIC or LFIC available.2-3/8" backset.

Model:D61 - 2-3/8" Backset,

Deadbolt:1" (25mm) throw, solid steel deadboltwith hardened, free spinning, steel pininsert.

Front:2-1/4" x 1" (57mm x 25mm) front and1-1/8" (29mm) latch front filler suppliedstandard with each D series deadbolt.

Strikes:2-3/4" x 1-1/8" (70mm x 29mm) metaland wood door strikes with strikereinforcement supplied standard.

Installation:Can be installed on doors prepared toANSI/BHMA A156.115 specificationsusing a simple bored-hole installation forsquare or beveled doors, opening in orout.

Backset:The D series deadbolts are available witheither 2-3/4" (70mm) or 2-3/8" (60mm)backset.

Door thickness:Standard for 1-3/8" (35mm) to1-3/4" (44mm) thick doors.

Handing:Functions are non-handed and easily field reversible.

Warranty:The D series deadbolts carry a one yearmechanical warranty

ANSI/BHMA:Certified ANSI/BHMA A156.5 Grade 1.

Fire listings:D series deadbolts, when used in conjunction with the primary latching device, are UL - cUL listed for use on fire doors having a rating up to and including 3 hours. In addition, D Series are cUL listed for use on wood doorsm having a rating up to and including 90 minutes.
