Accentra (Yale) SDA16-1 Stand Alone Door Alarm

Accentra (Yale)* SDA16-1 Stand Alone Door Alarm*

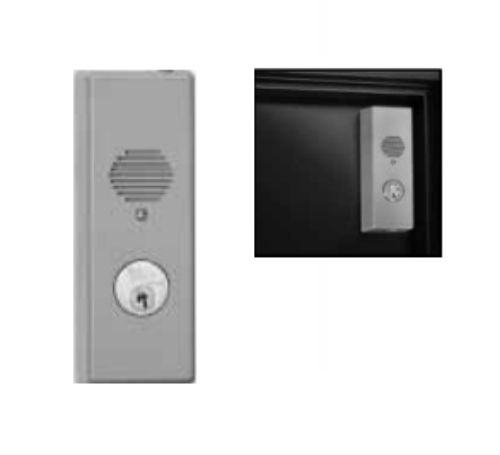

This unit is ideal for emergency doors as well as stairwell doors and rear exit doors in retail environments. The unit, which can also be hardwired, easily complements existing hardware, making any opening alarmed. The SDA16 door alarm is typically mounted on the interior of the door frame or door and is paired with a magnet mounted on the opposing side of the door gap.

Dimensions: 8.3"L x 3.1"W x 2.0"D (210mm L x 79mm W x 52mm D)Non-handed unit (field reversible)Unit powered by 9V battery Unit can be hardwired by using WH-11 wire harness and 784 power supplyNo battery is required in unit with hard-wire option – if power is lost, optional gel-cell battery in power supply will give approximately 10,000 operationsReverse battery protection safeguards the unit if the battery is incorrectly installedA low-voltage battery is indicated by an audible signal every 30 secondsPiezo horn blasts at 105+ decibels if the door is used with out proper authorizationThe LED will flash every 30 seconds, indicating either the unit is armed or, if under auto reset, that the door has been violatedVarious field-adjustable features by dip switch including automatic alarm reset, REX and passage time delay, and LED color preferenceA tamper switch provides instantaneous signal to sound horn in the event the cover is removed. Horn will sound until the unit is reset by the key or remote reset/arm switchConformally coated electronics for weather resistanceCover is held in place by cam lock which protects mounting screws, electrical system and internal sensorsAccepts external Rim cylinder (not included)Accepts standard mortise cylinders (not included)
