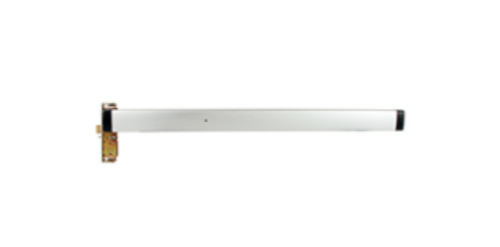

Adams Rite 8320 Mortise Exit Device - Dark Bronze Anodized, Flat Faceplate

Adams Rite 8320 Mortise Exit Device -*Dark Bronze Anodized,*Flat Faceplate

Specifications:

Stile Width: Minimum 5".

Certifications: UL 305 Panic Hardware, ANSI/BHMA A156.3 Grade 1, California State Fire Marshall, New York City MEA

Handing: Specify handing and bevel if applicable.

Pushbar Length: Standard sizes: dimensioned for 36", 42", and 48" openings. Standard width bars can be field cut to the next smallest opening width.

Door Thickness: Suits 1-3/4" standard. Can be modified for thicker doors.

Cylinder x Fixed Pull: (Function 03): Accepts any standard mortise cylinder with MS® cam (not included)

For Mortise CylindersClick Here.

Projection: 2-5/8" when fully projected.

Fasteners: Standard self-tapping screws.

Faceplate: Flat Face Shape, Dark Bronze Anodized Finish

Strikes: Made of stainless steel. Supplied with exit device.

Warranty: Five year limited..

Features:

  - Heavy duty deadlatching mechanism

  - Strong, durable construction for a high level of security

  - Easy to install

  - Clean, unobtrusive design

Model: 8320-7142, 8320-8142, 8320-7136, 8320-8136, 8320-7148, 8320-8148
