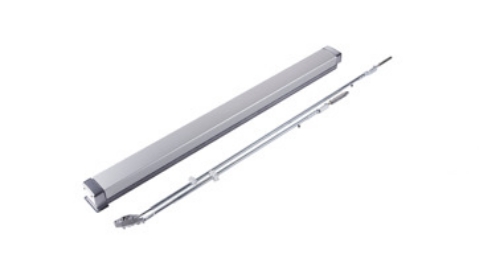

Adams Rite 8600C-36-US32D Narrow Stile Concealed Vertical Rod Exit Device - Cylinder Dogging - Satin Stainless - 36"

Adams Rite 8600C-36-US32D Narrow Stile Concealed Vertical Rod Exit Device - Cylinder Dogging - Satin Stainless - 36"

Description:

Cylinder Dogging: For management control of dogging exit devices for life-safety exit devices only.

Handing: Device is non-handed. Lever Entry Trim is field reversible.

Pushbar Length: dimensioned for 36" openings. Standard width bars can be field cut to the next smallest opening width.

Bar Height: Standard model adjusts from 30" to 44".

Door Height:Standard unit adjustable for doors up to 66" above the selected bar height. For doors over 66" above bar height, up to 10 ft use 8655 Tall Door Kit.

Door Thickness: Suits 1-3/4" standard, up to 2-1/4". Device requires modification when used with cylinder in doors over 1-3/4".

Stile Width: Minimum 2" Stile. Fits narrow, medium, and wide stile aluminum doors.

Stile Wall: Doors with stile walls other than 1/8" require modification.

Projection: 2-5/8" when fully projected, 1-5/8"when dogged.

Fasteners: Standard self-tapping screws.

Cylinder x Fixed Pull (Function 03): Accepts any standard mortise cylinder with MS® cam.

For Mortise CylindersClick Here.

Warranty: Five year limited.

Features:

• Patented top latching mechanism interlocks door to frame

• Strong, durable construction for a high level of security

• Adjustable steel rods protected in contoured covers

• Easy to install

• Clean, unobtrusive design

Specifications:

8600 Series Certifications:

• UL 305 Panic Hardware

• California State Fire Marshall

• ANSI/BHMA A156.3 Grade 1

• New York City MEA
