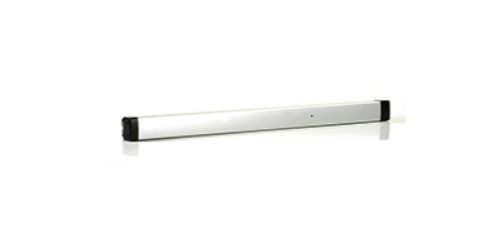

Adams Rite 8700-36 Rim Exit Device - 36"

Adams Rite 8700-36 Rim Exit Device - 36"

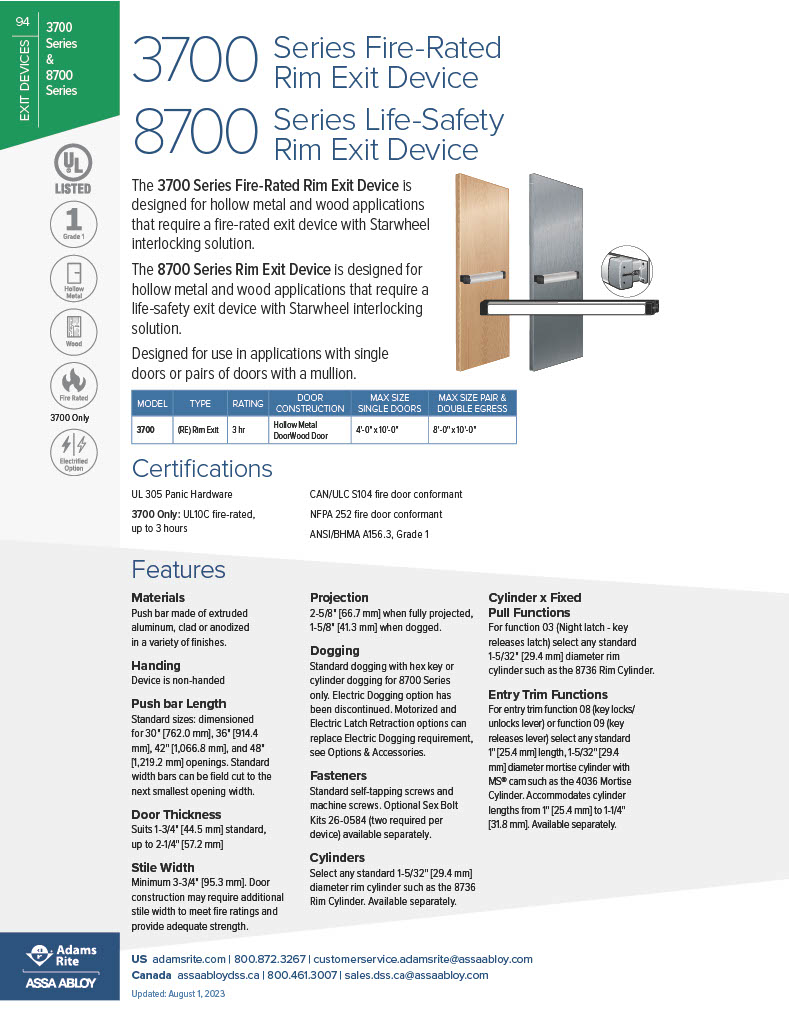

Features and description:**

• Patented “Starwheel" bolt interlocks door to frame

• Strong, durable construction for a high level of security

• Easy to install

• Unobtrusive design for clean sight lines

• Materials: Pushbar made of extruded aluminum

• Handing: Device is non-handed. Lever Entry Trim is field reversible.

• Pushbar Length: dimensioned for 36" openings. Standard width bars can be field cut to the next smallest opening width.

• Door Thickness: Suits 1-3/4" standard, up to 2-1/4".

• Stile Width: 8700 – Minimum 3-3/4".

• Projection: 2-5/8" when fully projected, 1-5/8"when dogged.

• Dogging: Standard dogging with hex key or cylinder dogging for 8700 Series only.

• Fasteners: Standard self-tapping screws.

• Cylinder x Fixed Pull: (Function 03): Accepts any standard rim cylinder.(Not Included)

• 3080 Entry Trim (Functions 08, 09): Accepts any standard diameter mortise cylinder with MS® cam. Accommodates cylinder lengths from 1" to 1-1/4". (Available separately).

• Warranty: Five year limited.

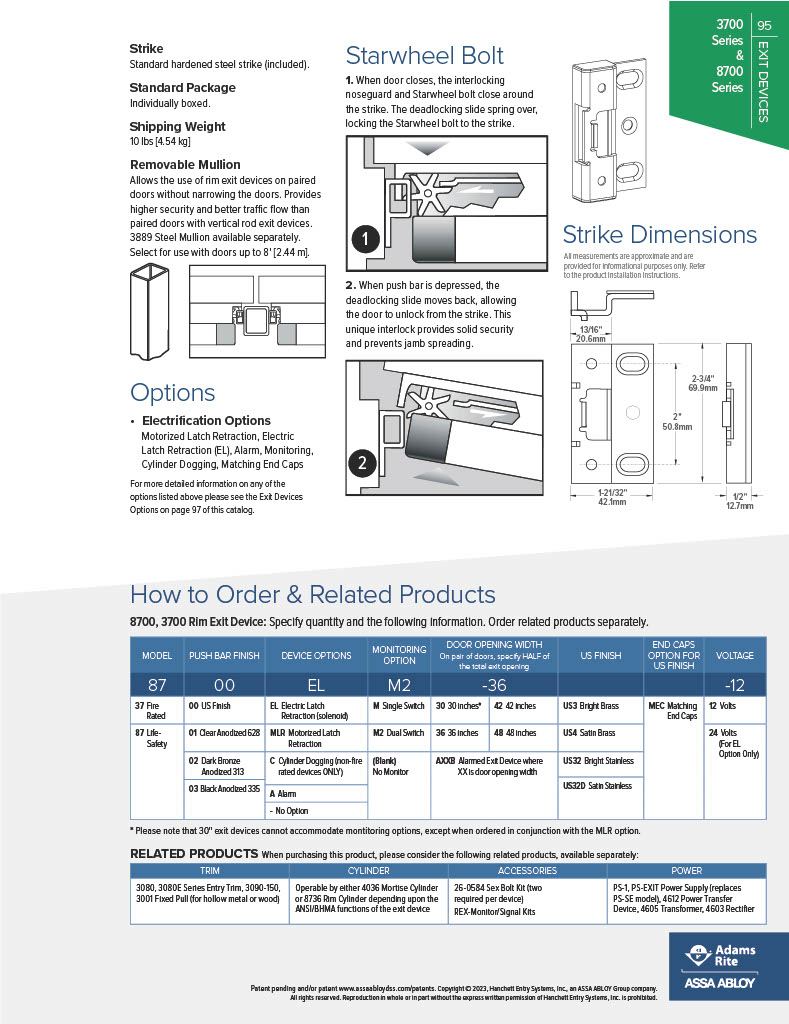

• Starwheel Bolt:   1. When door closes, the interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide spring over, locking the starwheel bolt to the strike.

  2. When pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike. This unique interlock provides solid security and prevents jamb spreading.

• Strike: Standard hardened steel strike (included).

Specifications:

8700 Series Certifications:

• UL 305 Panic Hardware

• ANSI/BHMA A156.3 Grade 1

• California State Fire Marshall

• New York City MEA*

Model: 8700-36-US32D, 8700-36-US3
