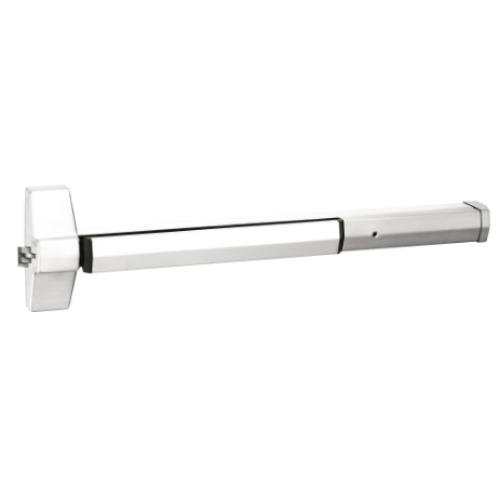

Accentra (Yale) 7150 Square Bolt Rim Panic Exit Device - 36"

About this item

The Accentra Yale 7150 is a Grade 1 wide style SquareBolt rim panic exit device from the Accentra ASSA ABLOY 7000 Series, configured for 36-inch door width. Also referenced as the Yale 7150 and formerly marketed under the Yale Security brand. The patented SquareBolt design (Patent No. 5,605,362) provides significantly greater forced-entry resistance than a standard rim latchbolt without sacrificing any life-safety egress function. American Locksets is an authorized Accentra ASSA ABLOY dealer stocking the 7150-36 with same-day shipping and free shipping on all orders over $300.

Yale 7150 SquareBolt: What Makes It Different from a Standard Rim Exit Device

The standard rim exit device uses a deadlocking curved latchbolt to hold the door closed. A latchbolt is inherently rounded and can be defeated by shimming, credit carding, prying with a flat tool, or sustained door rattling that allows the latch to walk off the strike roller over time.

The Yale 7150 replaces this with the patented SquareBolt deadbolt. The SquareBolt is a square-profile bolt that locks into the roller strike with a positive mechanical engagement. When the door closes, the SquareBolt seats into the strike and deadlocks in position. The flat-sided geometry physically resists the shimming and prying techniques that defeat curved latchbolts. Door rattling and shaking cannot work the SquareBolt off the strike the way they can with a standard latchbolt. Credit cards, crowbars, and push-pull forcing are all resisted by the SquareBolt's geometry and the roller strike's positive locking plate.

The SquareBolt operates exactly like a standard latchbolt from the egress side. Pushing the touchpad retracts the bolt and the door swings open. No additional force, no special technique, no training required for occupants. Life-safety egress compliance is maintained at all times.

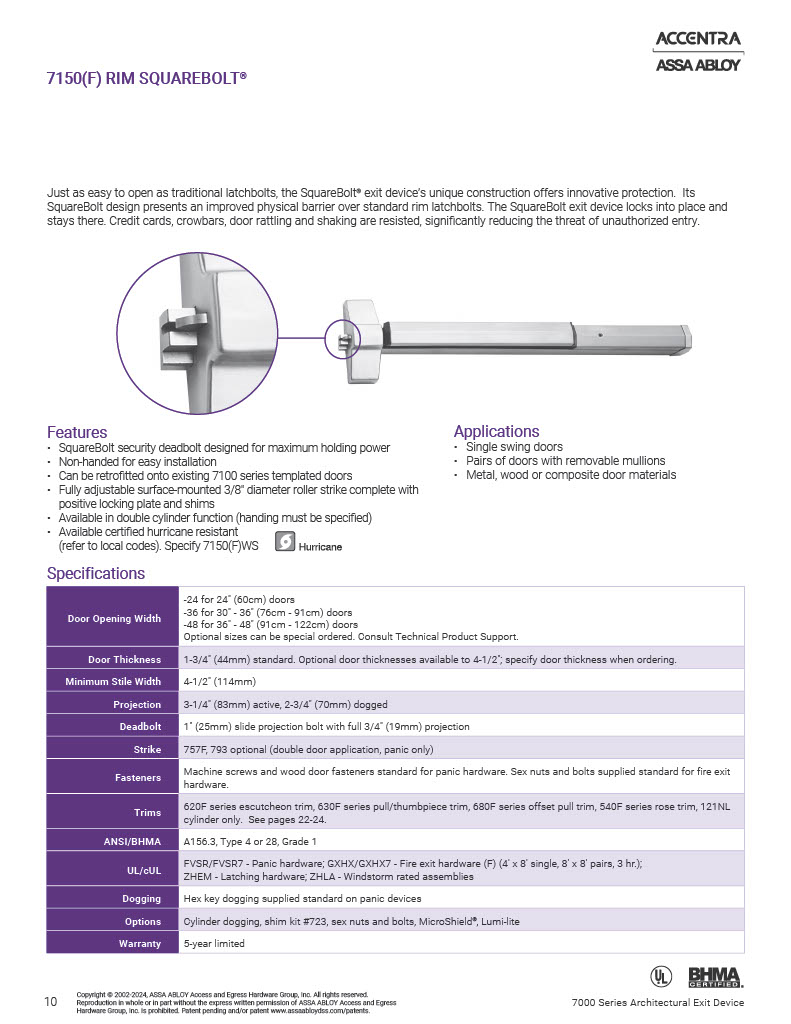

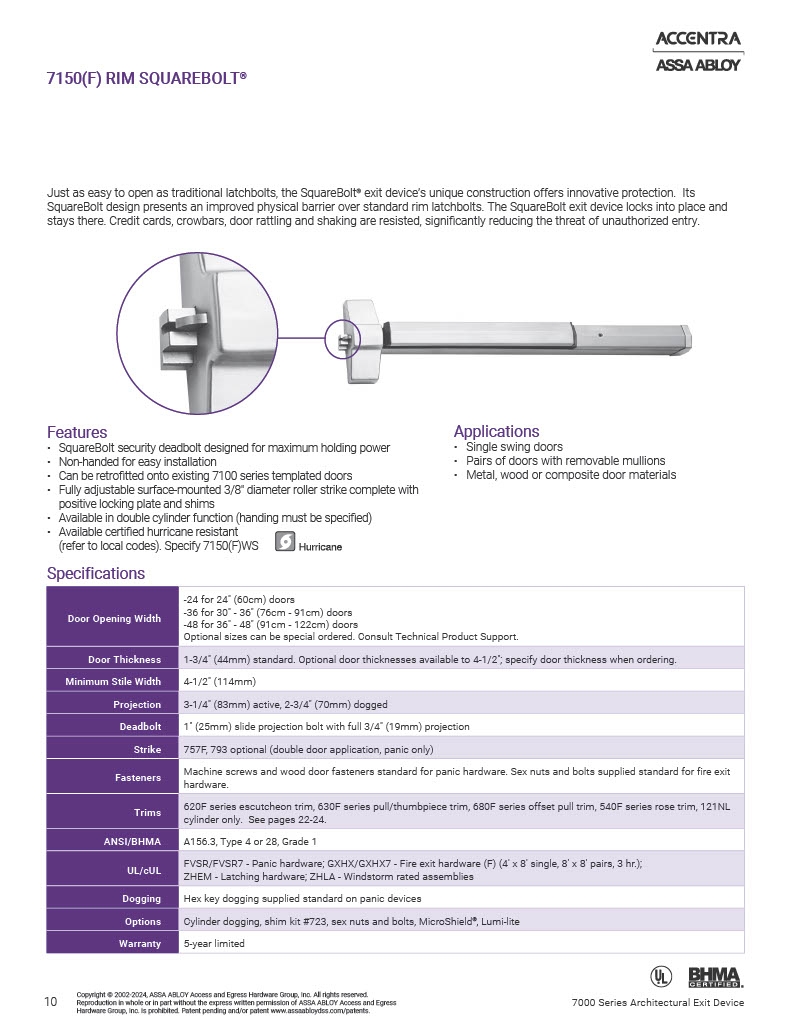

Accentra Yale 7150 Specifications

• SKU: 7150-36

• Series: Accentra (Yale) 7000 Series

• Type: Wide stile SquareBolt rim exit device

• Door Width: 36-inch (fits 30-inch to 36-inch door width)

• Grade: ANSI/BHMA Grade 1

• UL: UL listed for panic hardware. Fire-rated F model (7150F) UL listed for fire hardware

• Bolt Type: Patented SquareBolt security deadbolt, Patent No. 5,605,362

• Strike: Fully adjustable surface-mounted 3/8-inch diameter roller strike, complete with positive locking plate and shims included

• Trim: Less trim (exit only). Accentra/Yale exit device trim sold separately

• Dogging: Hex key dogging standard

• Handing: Non-handed. No field reversal required

• Retrofit: Designed to retrofit directly onto existing 7100 Series templated doors. No re-cutting of the door required when upgrading from the standard Yale 7100 rim device

• Chassis: Steel chassis with heavy-duty components. Electroplated ferrous components for corrosion resistance

• Quality System: Designed and manufactured under ISO 9001 certified quality system

• Hurricane Resistant: Available hurricane-resistant certified version (refer to local codes for applicability)

• Integration: Integrates with existing security and fire alarm systems via available electromechanical options on the 7000 Series platform

7150 vs. 7100: When to Specify the SquareBolt

The Yale 7100 is the standard rim exit device in the 7000 Series using a conventional deadlocking latchbolt. It meets Grade 1 requirements for standard commercial applications. The 7150 uses the SquareBolt deadbolt and is specified when the opening requires enhanced forced-entry resistance beyond what a standard latchbolt provides.

Retail entries with high theft-by-forced-entry risk, perimeter doors on government and healthcare facilities, school exit doors on isolated corridors, and any opening where the hardware schedule specifically calls for a SquareBolt or high-security rim device are the primary 7150 applications. The retrofit compatibility with existing 7100 door preps makes it a cost-effective security upgrade on existing openings.
