Adams Rite 8801SE Rim Exit Device - Silent Electrification Latch Retraction

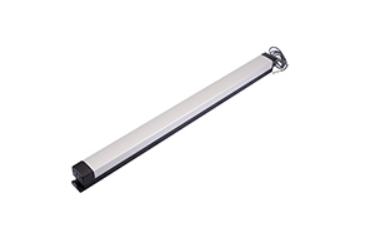

Adams Rite 8801SE Narrow Stile Rim Exit Device - Silent Electrification Latch Retraction*- Clear Anodized (628)*

Silent Electrification Motorized Latch Retraction:The SE Motorized Latch Retraction option provides near-silent operation for quiet environments such as hospitals, offices, hotels, and libraries where solenoid-driven devices would be disruptive.

The high speed/low current draw motor (0.4 Amps inrush current, 0.2 Amps hold current) offers a powerful yet efficient system that allows for lighter gauge wiring and an energy-saving reduced amperage powersupply.

The device also features electric latch retraction with electric dogging which minimizes hardware projection and noise.

The SE option is available with 3000/8000 Series Exit Devices and the RITE Door®.

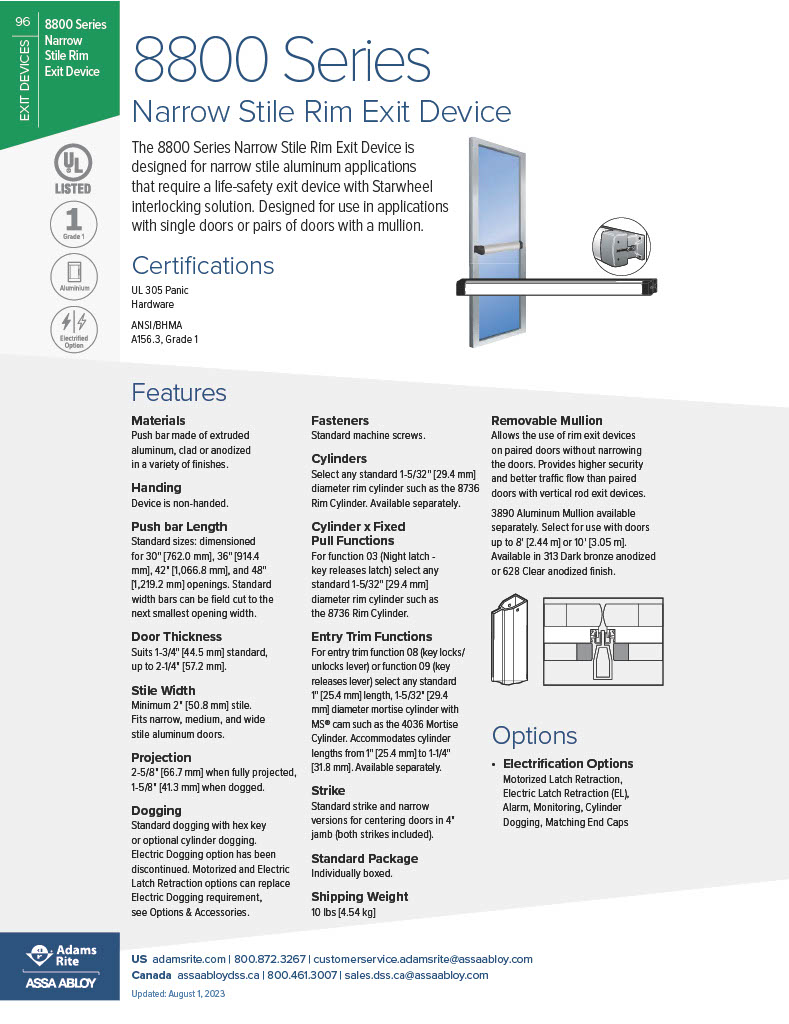

Features and description:

 Patented “Starwheel" bolt interlocks door to frame

 Strong, durable construction for a high level of security

 Easy to install

 Unobtrusive design for clean sight lines

 Materials: Pushbar made of extruded aluminum

 Handing: Device is non-handed. Lever Entry Trim is field reversible.

 Pushbar Length: dimensioned for 36" and 48" openings. Standard width bars can be field cut to the next smallest opening width.

 Door Thickness: Suits 1-3/4" standard, up to 2-1/4".

 Stile Width: Minimum 2" Stile. Fits narrow, medium, and wide stile aluminum doors.

 Projection: 2-5/8" when fully projected, 1-5/8"when dogged.

 Fasteners: Standard self-tapping screws.

 Cylinder x Fixed Pull: (Function 03): Accepts any standard rim cylinder.(Not Included)

 3080 Entry Trim (Functions 08, 09): Accepts any standard diameter mortise cylinder with MS® cam. Accommodates cylinder lengths from 1" to 1-1/4". (Available separately).

 Warranty: Five year limited.

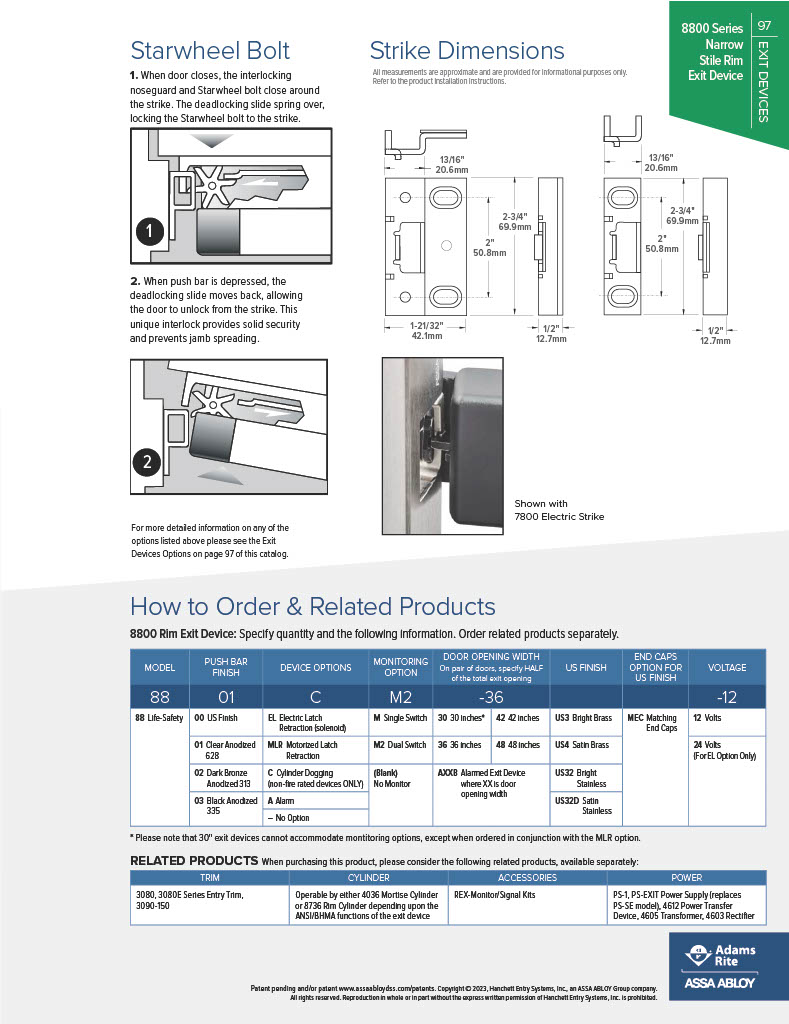

 Starwheel Bolt:   1. When door closes, the interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide spring over, locking the starwheel bolt to the strike.

  2. When pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike. This unique interlock provides solid security and prevents jamb spreading.

Strike: Made of hardened steel. Standard strike and narrow versions for centering doors in 4" jamb. (Both strikes are included).

Specifications:

 UL 305 Panic Hardware

 ANSI/BHMA A156.3 Grade 1

 California State Fire Marshall

 New York City MEA*

Model: 8801SE-36, 8801SE-48
