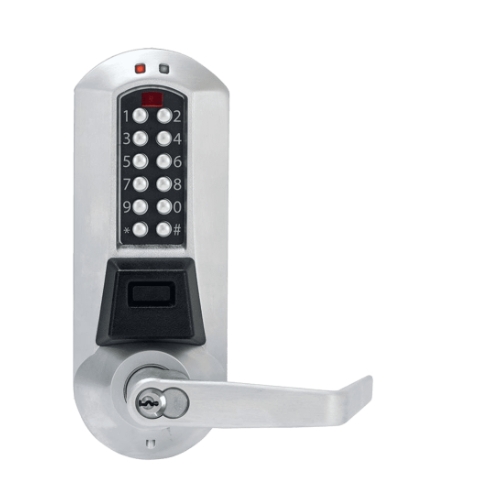

Dormakaba E5710BWL-626-41, Electronic Keypad - Prox - Exit Trim, IC for BEST

Dormakaba* E5710-B-WL-626-41 Exit Device Trim*With Pin/Prox Access, IC Core for BEST - Satin Chrome

Key Override - Small Format "Best or Equivalent Interchangeable Core (6 or 7 Pin), Core not Included

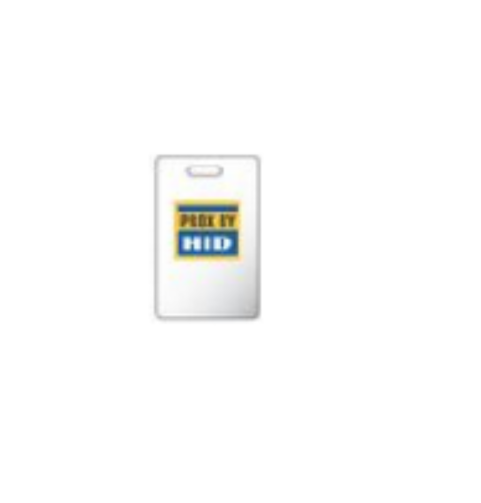

Access Control:Electronic lock with dual credential capability—PIN and/or PROX card (HID, 125 kHz, 26 to 84-bit format). Lock is scheduled to require credentials based on security and convenience requirements.

PIN onlyPROX card onlyPIN + PROX card

No Wires:E-Plex’s LectroBolt eliminates running wires to or through the door—no risk of damage from pinched wires that can result in costly callbacks

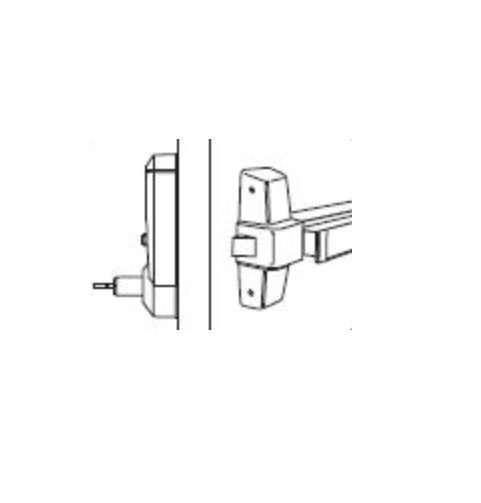

Locking Device Options: Rim Exit Device: Compatible with most leading brands of Exit Devices (Exit Device and Mounting Hardware not included)

Number of Users: Multiple Users—300 with LearnLok feature; 3,000 with optional software

Programming:Locks are programmed simply via keypad using LearnLok Feature without any software, or with optional E-Plex Enterprise Software to manage a large number of doors and users

Handing:Non-handed, pre-assembled for left-hand door installations—easily changed in the field

Scheduling:Access schedules—up to 16 different access schedules may be programmed into lock Holiday/Vacation—up to 32 different holiday/ vacation blocks may be programmed into lock

Operation Modes: - PIN access - Passage - can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours Lockout

Battery Operation:Batteries located in interior housing cover; offers quick and easy battery replacement for institutions; four AA Alkaline batteries provide up to 120,000 cycles; 400,000 cycles with high capacity "C" battery pack. Lock data is maintained if batteries fail.

 Exit Device Compatibility:Arrow S1250, Arrow S3883F/S3800, Black & Decker (K-2) QED111/112, Cal Royal 9800, Cal Royal 2200, Corbin Russwin ED5200/5200A, Detex 1001 BP1, Detex 10/F10 Series, Dorex 8500R/8500F, Dorex 9500PR/9500FR, Dorma 9300/F9300, Dorma 9400B/F9400, Monarch 18R,F18R, Precision 21/FL21, Sargent 2828, Sargent 3828, Sargent 8810E/8800, Sargent 8888, Von Duprin 22/22F, Von Duprin 98/98F, Von Duprin 99/99F, Von Duprin XP98/99, Yale YME2100/2100, Yale 7100.*(requires special K-Hub Adapter)(Exit Device not included)

Minimum Stile Required:5" (127 mm)

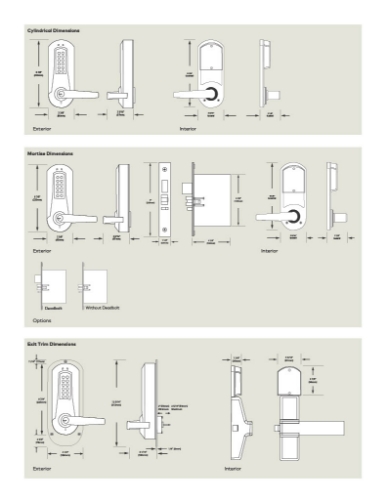

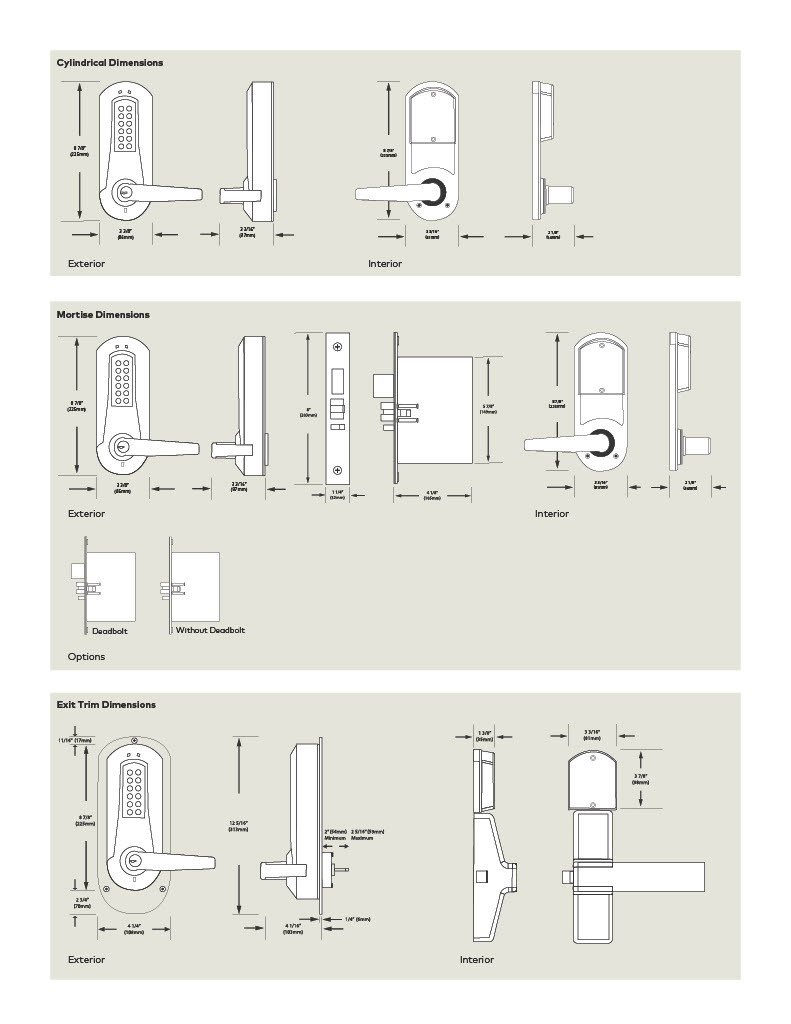

Door Thickness: Exit Trim: 1¾" (44 mm) to 2¼" (57 mm). Pre-assembled to accommodate doors 1¾" (44 mm) to 2⅛" (54 mm).

Audit Capability:30,000 Events

Certification and Testing: Accessibility Standard:Americans with Disabilities Act (ADA) Fire Rating: 3-hour, UL/ULC fire door rating for "A" labeled doors Durability:ANSI/BHMA Grade 1 Certified (A156.25, A156.2, A156.13, A156.3) Environmental:Indoor/Outdoor Approved Front Housing: -31 Degree F (-35  Degree C) to 151 Degree F (66 Degree C) Rear Housing: -31 Degree F (-35  Degree C) to 130 Degree F (55  Degree  C)

Warranty:3-year warranty from date of installation; built-in warranty counter in lock memory

Model: Dormakaba E5710-B-WL, E5710BWL, E5710-BWL, E5710-B-WL-626-41, E5710BWL626-41, E5710BWL-626-41,
