Aiphone C-123LW Dual Master Chime Com Set - 1 Door, 2 Master

Aiphone C-123LW Dual Master Chime Com Set - 1 Door, 2 Master

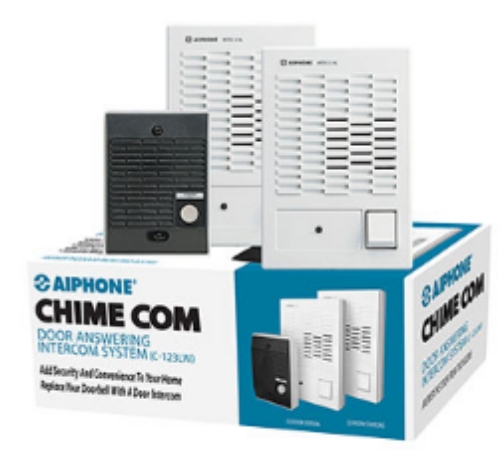

C-123LW: Dual master set Set includes a door station (C-D) and a 2 master stations (C-ML/A). Additional masters may be added. Each master requires a separate power supply, either the SKK-620 or 4 "C" batteries. The door station calls the masters by pressing a call button that initiates a chime. Communication is is Push to talk/release to listen at the master and hands free at the door station. Communication times out after being idle for twenty seconds..

Features:

Open voice door answering with door release

Adjustable communication volume

Automatically turns off in 20 seconds

Battery or DC power supply

Optional door stations for replacement of C-D: any LE or LS Series

Second inside room station

Specification:

Power Source: 6V DC - Use SKK-620 or 4 "C" Batteries

Door Release: Contact rating: 50V AC @ 1A

Wiring: Door to master: 2-cond., overall shield Between masters: 2-cond., overall shield

Distance: Door to farthest master: 245’(22AWG) 490’(18AWG)

Wire Type: Aiphone #822202  or Aiphone #821802
