Aiphone JPS-4AEDF, 7" touchscreen handset / hands-free 4 x 8 color video set

Aiphone JPS-4AEDF, 7" touchscreen handset / hands-free 4 x 8 color video set (JP-4MED, JP-DVF, PS-2420UL)

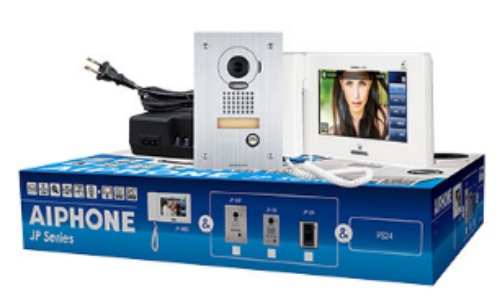

The JPS-4AEDF Set Includes: JP-4MED, JP-DVF, PS-2420UL

Features:

Digital PanTilt and Zoom camera eliminates blind spots with 170° wide angle lens (video door stations)

7" touchscreen panel

Hands‑free (VOX) or handset communication

Camera position and zoom can be set for call‑in

Includes two N/O door release contacts (add RY‑3DL for 3~4 doors)

Color LCD screen

Camera can be adjusted to compensate for bright illumination

Picture memory records up to 20 calls to internal memory and max. 1,000 calls to removable SD / SDHC card (not included)

Entry can be monitored via the master station

1 output to control a secondary device like a light, gate, or additional door

Video out to DVR via supplied connector

Specification:

Power Source:24V DC – use PS‑2420UL

Communication:Hands-free (VOX) or handset (full-duplex)

Video:Display 7" color LCD touchscreen

Picture Memory:Internal / Built‑In: record max. 20 calls (6 images per call) with up to 5 calls protected from overwriting SD / SDHC card: record max. 1,000 calls (40 images per call) with up to 100 calls protected from overwriting

Camera:Type: 1/4" color CMOS View Area: 100° vert. x 170° horiz.

Door Release:N/O dry contact, 24V AC/DC, 500mA – use EL‑12S (use RY‑24L for larger contact rating and use RY‑3DL for 3~4 doors)

Wire Type:Door Station to Master Station: 2‑cond., mid cap, solid, non‑shielded – use Aiphone #871802 Power Supply to Master Station: 2‑cond., mid cap, solid, non‑shielded – use Aiphone #871802 Master Station to Adaptor: CAT‑5e or CAT‑6 Adaptor to Sub Master Station: CAT‑5e or CAT‑6

Distance:Door Station to Master Station: 330', Master Station to Distribution Adaptor: 650', Distribution Adaptor to Sub Master Station: 165', Power Supply to Master Station: 16'(22AWG) 33'(18AWG), Power Supply to Distribution Adaptor: 16'(22AWG) 33'(18AWG)
