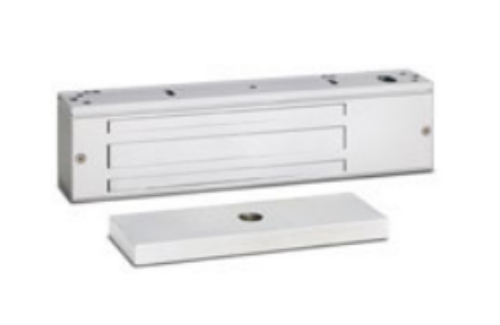

SDC 1571X Single Electromagnetic Lock, Surface Mount , 1200lbs - Dark Bronze Powder Coat

Product Details

SDC 1571X Single Electromagnetic Lock, Surface Mount , 1200lbs , 12/24VDC -*Dark Bronze Powder Coat*

FEATURES:

  • 1200lbs Holding Force

  • Voltage 12/24VDC Voltage Sensing Input  125mA @ 24VDC; 250mA @ 12VDC

  • 11"L x 2-3/4"H x 1-9/16"D

  • ANSI/BHMA Grade 1 Compliant

  • BHMA Certified Holding Force

  • UL, CSFM, MEA Listed

  • Modular Design

  • Modular Upgrade Kits

  • Field Upgradeable without removing from the frame

  • Uniform Design & Installation

  • Identical Housing, Template & Accessories

  • Quick Mount Assembly

  • STANDARD MOUNTING FASTENERS: Self Drilling & Tapping Sheet Metal Screws and 10/32 Machine Screws supplied for different application needs.











SDC 1571X Single Electromagnetic Lock, Surface Mount , 1200lbs - Dark Bronze Powder Coat

SKU: 1571X

In Stock

$428.40

$594.00

You saved $165.60

About this item

Energy Saver, ANSI Grade 1, Modular Magnetic Lock, 1200 lbs Holding Force with only 3 Watts power consumption. Field upgradeable monitoring outputs and servicing without removing from the door frame.





Resources

No resources added to this product.

SDC 1571X Single Electromagnetic Lock, Surface Mount , 1200lbs , 12/24VDC -*Dark Bronze Powder Coat*

FEATURES:

  • 1200lbs Holding Force

  • Voltage 12/24VDC Voltage Sensing Input  125mA @ 24VDC; 250mA @ 12VDC

  • 11"L x 2-3/4"H x 1-9/16"D

  • ANSI/BHMA Grade 1 Compliant

  • BHMA Certified Holding Force

  • UL, CSFM, MEA Listed

  • Modular Design

  • Modular Upgrade Kits

  • Field Upgradeable without removing from the frame

  • Uniform Design & Installation

  • Identical Housing, Template & Accessories

  • Quick Mount Assembly

  • STANDARD MOUNTING FASTENERS: Self Drilling & Tapping Sheet Metal Screws and 10/32 Machine Screws supplied for different application needs.
