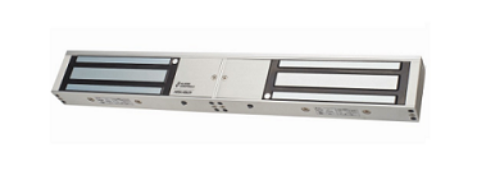

Alarm Controls 1200D Electromagnetic Lock - For Double Doors - 1200 lbs holding force Per Leaf

Alarm Controls 1200D Electromagnetic Lock  - For Double Doors - 1200 lbs holding force Per Leaf

Specifications:

1200 lbs holding force Per Leaf

Magnet size: 21" L x 2-7/8" H x 1-1/2" W

Armature size: 7-1/2" L x 2-3/8" H x 5/8" W

Operates on 12 or 24 VDC, switch selectable

Low current draw: 400 mA at 12 VDC, 200 mA at 24 VDC

Operating temperature: +14 to +131F [-10 to +55C]

UL and Canadian UL listed, R16759

SPDT 3A relay contacts

Features:

Bond sensor and door status sensor signals a powered and securely locked door

Bi-colored (red & green) status LED

Self drilling TEC screws

Built-in arc suppression

E-Z mount system, no special tools required

Non-aluminum parts are plated to resist corrosion

Limited lifetime warranty

Clear anodized, (US28) finish
