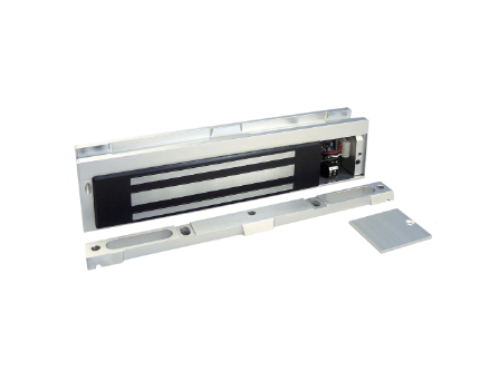

Securitron M38DL Magnalock Door Position Switch(DPS) - LED Indicator - 600 lbs

Securitron M38DL Magnalock - Door Position Switch (DPS) - LED Indicator - 600 lbs

Features: Patented instant release circuit - no residual magnetism Surface mounts easily with a minimum of tools Internal wire access chamber Automatic dual voltage - no field adjustment required Efficent, low power usage Fully sealed electronics - tamper proof and weatherproof Mounted using steel machine screws into blind finishing nuts All ferrous metal surfaces plated to MIL specification Hardware accessories available to configure any opening Dress Covers available Ten feet [3.05m] of jacketed, stranded conductor MagnaCare Lifetime Replacement No Fault Warranty UL Listed

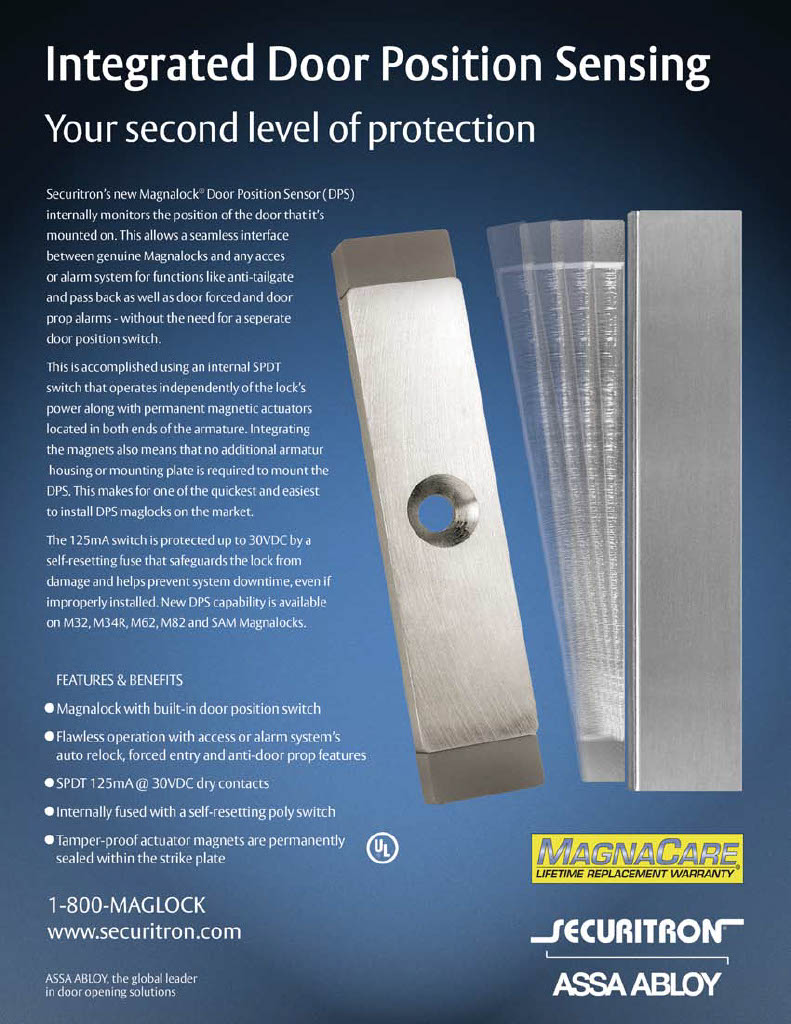

Description: Door Position Switch (DPS):The Door Position Switch (DPS) provides a signal to an access control system indicating whether the door is open or closed.

LED Indicator:The LED provides a local visual indicator of the status of the lock.

Holding Force:600 lbs. [272 kg]

Dimensions: Magnalock: 10-1/2"L x 1-11/16"D x 2-1/2"H Strike: 6-1/4"L x 1/2"D x 1-5/8"H

Current Draw and Voltage:350mA at 12VDC; 170mA at 24VDC

Operating Temperature:+32 to +110F [0 to +43C] Recommended for indoor use

Shipping Weight:8 lbs [3.63kg]

Finishes:US28/628 - Brushed Aluminum, US32/629 - Polished Stainless (Dress Cover), US03/605 - Polished Brass (Dress Cover), BK - Black (Dress Cover)

Model:M38DL

? UL 10C Listed ? CAN4-S104, CAN/ULC - S533 Listed ? ANSI/UL 294 Listed ? CSA - C22.2 No.205 Listed ? ANSI/BHMA 156.23, Grade 1; E18501-1000 ? NFPA 101 ? CSFM - California State Fire Marshal Approved
