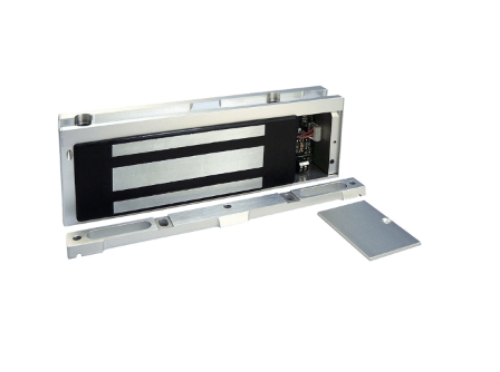

Securitron M68D Magnalock - Door Position Switch (DPS) - 1200 lbs

Securitron M68D Magnalock - Door Position Switch (DPS) - 1200 lbs

Features: Strong hold and low maintenance Patented instant release circuit - no residual magnetism Efficent, low power usage Surface mounts easily with mounting bracket using minimal tools Internal wire access chamber Mounted using steel machine screws into blind finishing nuts All ferrous metal surfaces plated to MIL specification Automatic dual voltage - no field adjustment required Dress Covers available MagnaCare Lifetime Replacement No Fault Warranty UL Listed

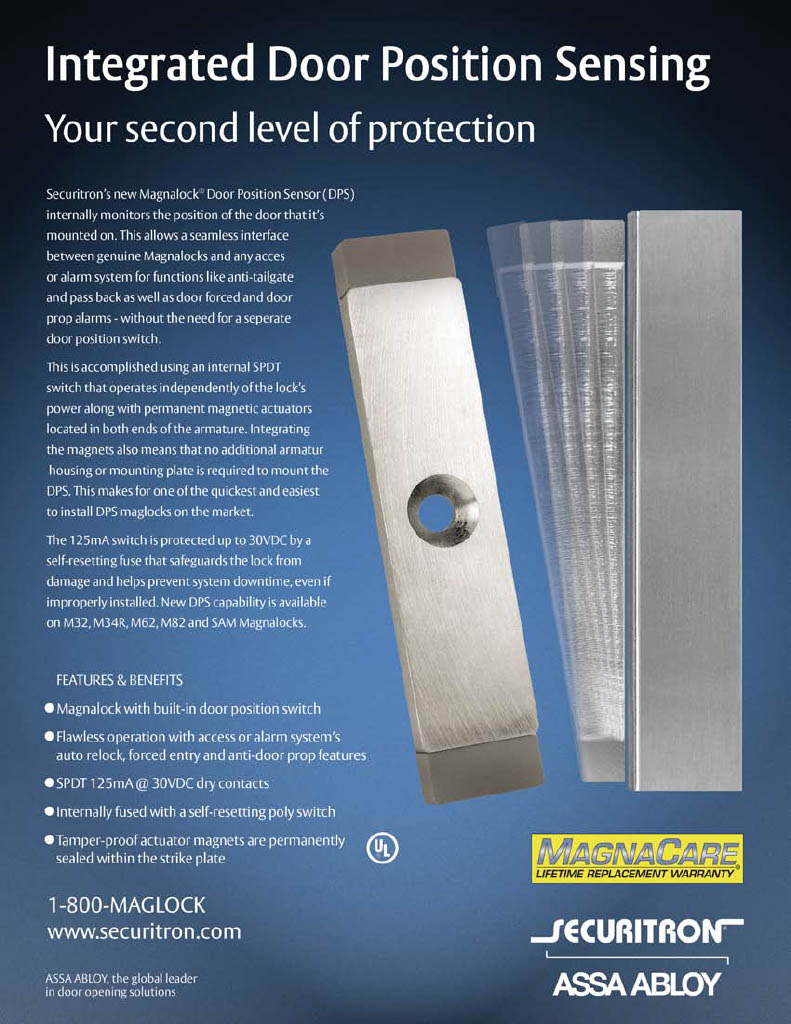

Description: Door Position Switch (DPS): The Door Position Switch (DPS) provides a signal to an access control system indicating whether the door is open or closed.

Holding Force:1200 lbs. [544 kg]

Dimensions: Magnalock: 10-1/2"L x 2"D x 3-5/8"H Strike: 6"L x 1/2"D x 2-3/4"H

Current Draw and Voltage:250mA at 12VDC; 125mA at 24VDC

Operating Temperature:+32 to +110F [0 to +43C] Recommended for indoor use

Shipping Weight:13 lbs [5.44kg]

Finishes:US28/628 - Brushed Aluminum, US32/629 - Polished Stainless (Dress Cover), US03/605 - Polished Brass (Dress Cover), BK - Black (Dress Cover)

Model:M68D

UL 10C Listed

 CAN4-S104, CAN/ULC - S533 Listed ANSI/UL 294 Listed CSA - C22.2 No.205 Listed ANSI/BHMA 156.23, Grade 1; E18501-1000 NFPA 101 CSFM - California State Fire Marshal Approved
