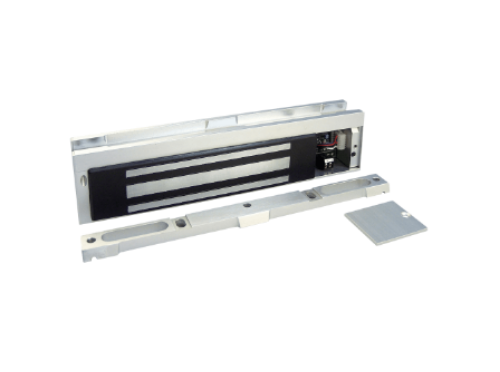

Securitron M38 Magnalock - Model 38 - Bracket Mounted with Easy Installation for Interior Applications - 600 lbs

Securitron M38 Magnalock - Model 38 - Bracket Mounted with Easy Installation for Interior Applications - 600 lbs

Features: Patented instant release circuit - no residual magnetism Surface mounts easily with a minimum of tools Internal wire access chamber Automatic dual voltage - no field adjustment required Efficent, low power usage Fully sealed electronics - tamper proof and weatherproof Mounted using steel machine screws into blind finishing nuts All ferrous metal surfaces plated to MIL specification Hardware accessories available to configure any opening Dress Covers available Ten feet [3.05m] of jacketed, stranded conductor MagnaCare Lifetime Replacement No Fault Warranty UL Listed

Holding Force:600 lbs. [272 kg]

Dimensions: Magnalock: 10-1/2"L x 1-11/16"D x 2-1/2"H Strike: 6-1/4"L x 1/2"D x 1-5/8"H

Current Draw and Voltage:350mA at 12VDC; 170mA at 24VDC

Operating Temperature:+32 to +110F [0 to +43C] Recommended for indoor use

Shipping Weight:8 lbs [3.63kg]

Finishes:US28/628 - Brushed Aluminum, US32/629 - Polished Stainless (Dress Cover), US03/605 - Polished Brass (Dress Cover), BK - Black (Dress Cover)

Model:M38

 UL 10C Listed CAN4-S104, CAN/ULC - S533 Listed ANSI/UL 294 Listed CSA - C22.2 No.205 Listed ANSI/BHMA 156.23, Grade 1; E18501-1000 NFPA 101 CSFM - California State Fire Marshal Approved
