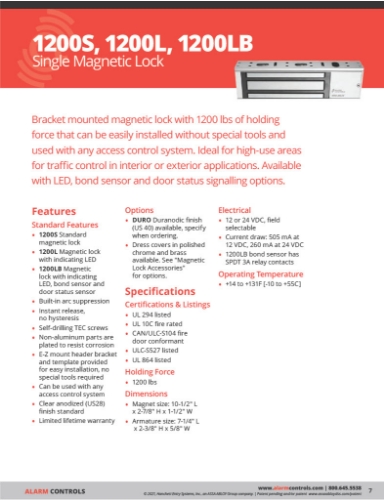

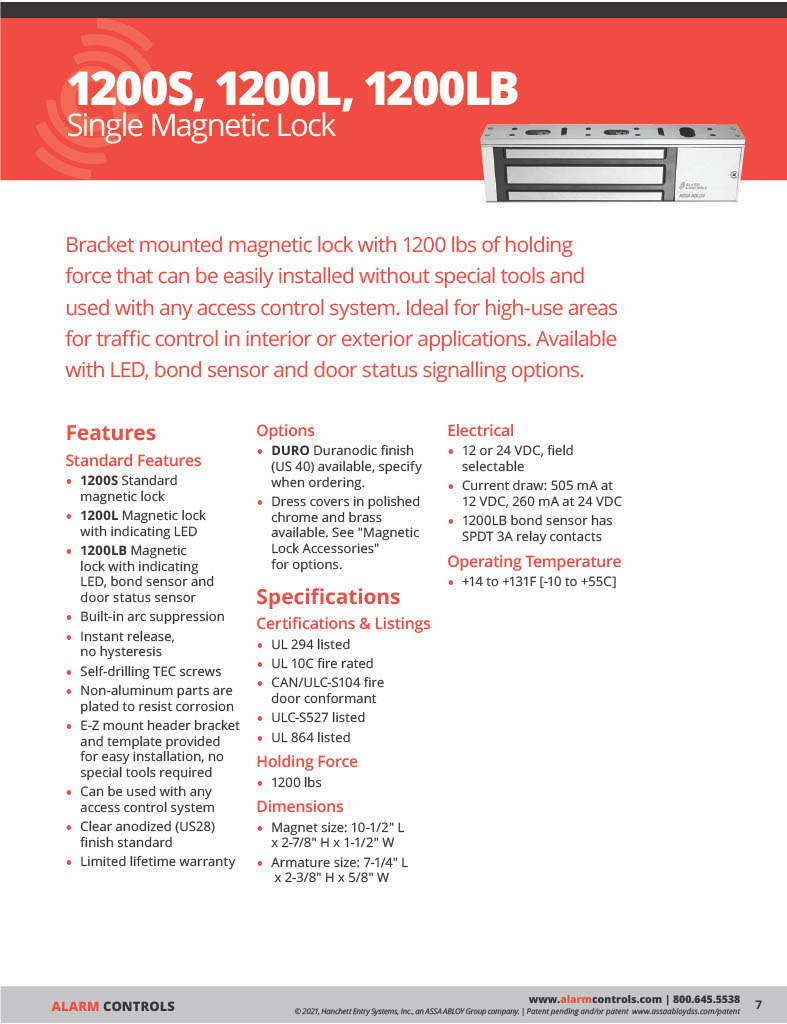

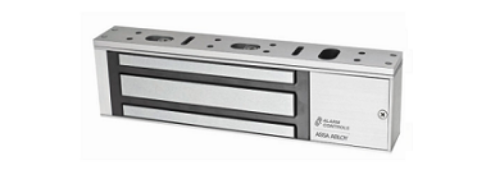

Alarm Controls 1200S Electromagnetic Lock - For Single Door - 1200 lbs holding force

Alarm Controls 1200S Electromagnetic Lock  - For Single Door - 1200 lbs holding force

Specifications:

 1200 lbs holding force Magnet size: 10-1/2" L x 2-7/8" H x 1-1/2" W Armature size: 7-3/8" L x 2-3/8" H x 9/16" W Operates on 12 or 24 VDC, selectable Low current draw: 400 mA at 12 VDC, 200 mA at 24 VDC Operating temperature: +14 to +131F [-10 to +55C]Features:

 Instant release, no hysteresis Can be used with any access control system Self drilling TEC screws Built-in arc suppression E-Z mount system, no special tools required Non-aluminum parts are plated to resist corrosion Clear anodized (US28) finish Limited lifetime warrantyCertifications & Listings:

 UL 10C fire rated CAN4-S104 (ULC-S104) fire door conformant ULC-S527 listed UL 864 listed
