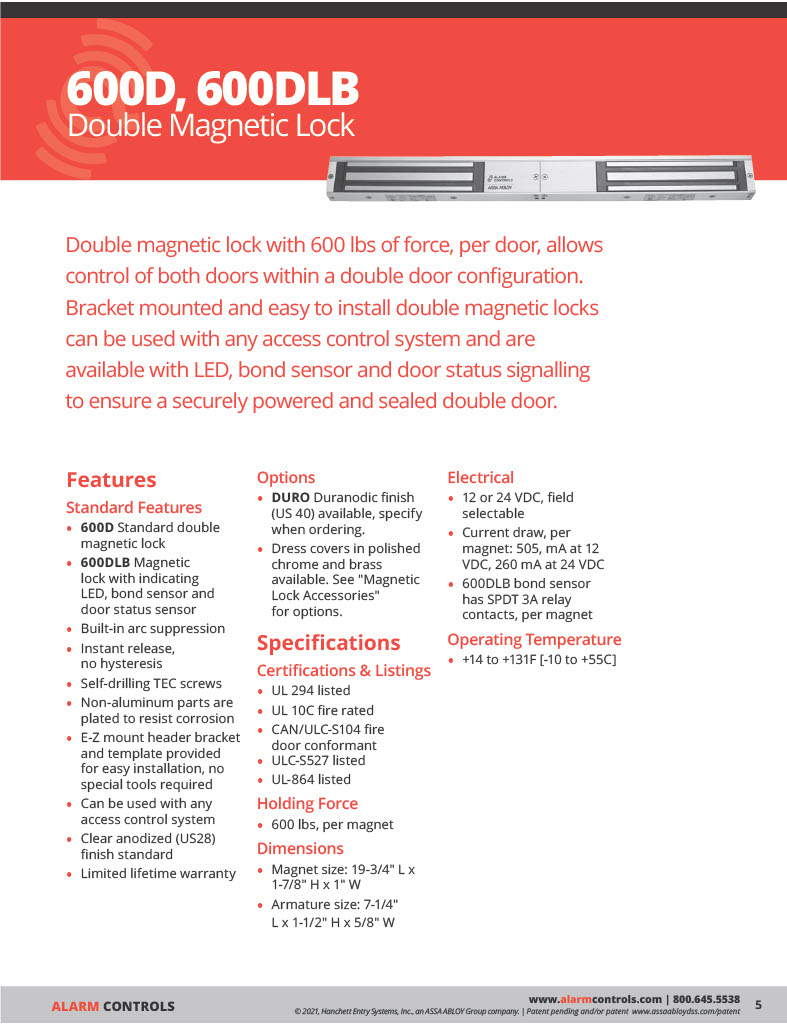

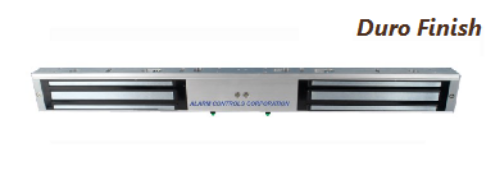

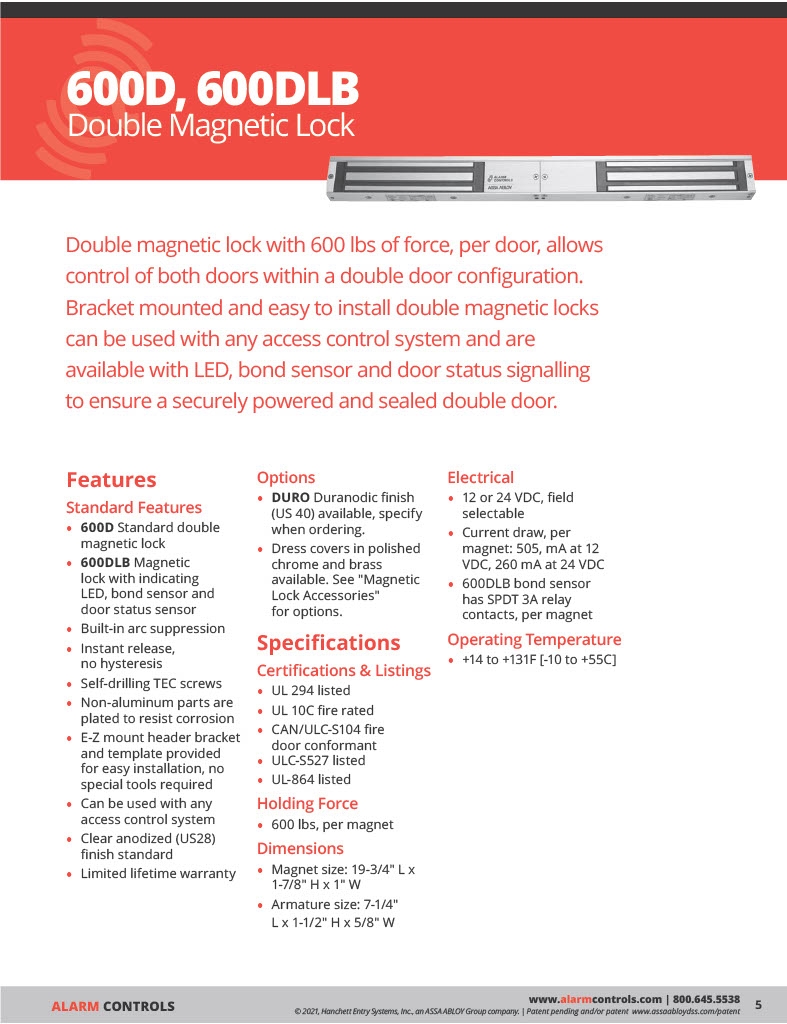

Alarm Controls 600DLBDURO Electromagnetic Lock with Bond Sensor, Door Status Sensor & Status LED - 600 lbs, For Double Door, Dark Bronze

Alarm Controls 600LB Electromagnetic Lock with Bond Sensor, Door Status Sensor & Status LED- For  Double Door - 600 lbs Holding Force, Dark Bronze Finish

Bond sensor and door status sensor signal a powered and securely locked door,

Specifications:

600 lbsholding force

Magnet size:19-3/4" L x 1-7/8" H x 1" W

Armature size:7-1/4"L x 1-1/2" H x 5/8" W

Operateson 12 or 24 VDC, selectable

Current draw, per magnet:505 mA at 12 VDC, 260 mA at 24 VDC

Finish: Dark Bronze

Operating temperature:+14 to +131F [-10 to +55C]

Bond sensorhas SPDT 3A relay contacts, per magnet.

Bond Sensor:The bond sensor uses a hall effect sensor that detects a magnetic field. When the magnetic lock is energized and the door is closed, a SPDT relay turns on. When the door is open the relay does not turn on.

Product Features:

Self drilling TEC screws

Built-in arc suppression

Instant release, no hysteresis

E-Z mount system, no special tools required

Bi-colored status LED signals a powered and securely sealed door

Limited lifetime warranty

Certifications & Listings

294 listed UL 10C fire rated CAN/ULC-S104 fire door conformant ULC-S527 listed UL-864 listed
