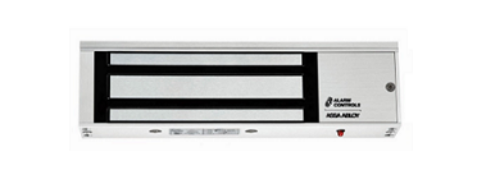

Alarm Controls 600LB Electromagnetic Lock with Bond Sensor, Door Status Sensor & Status LED- For Single Doors - 600 lbs

Alarm Controls 600LB Electromagnetic Lock with Bond Sensor, Door Status Sensor & Status LED- For Single Doors - 600 lbs Holding Force

 Bond sensor and door status sensor signal a powered and securely locked door

Specifications:

 600 lbs holding force Magnet size: 9-7/8" L x 1-11/16" H x 1" W Armature size: 7-1/4" L x 1-1/2" H x 1/2" W Operates on 12 or 24 VDC, selectable Low current draw: 400 mA at 12 VDC, 200 mA at 24 VDC Operating temperature: +14 to +131F [-10 to +55C] Sensors have SPDT 3A relay contacts LED Green: Door Closed and magnetic lock energized#No value#LED Off: No power to lock#No value#LED Red: Door open and magnetic lock energized Bond Sensor: The bond sensor uses a hall effect sensor that detects a magnetic field. When the magnetic lock is energized and the door is closed, a SPDT relay turns on. When the door is open the relay does not turn on.Product Features:

 Self drilling TEC screws Built-in arc suppression Instant release, no hysteresis E-Z mount system, no special tools required Bi-colored status LED signals a powered and securely sealed door Limited lifetime warranty Clear anodized (US28) finishCertifications & Listings

 UL 10C fire rated CAN4-S104 (ULC-S104) fire door conformant ULC-S527 listed UL 864 listed
