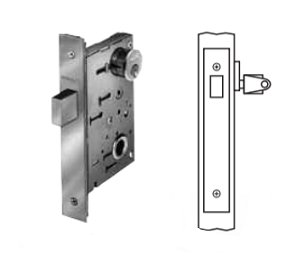

Arrow AM40 26D Cylinder One Side Deadbolt Mortise Lock, Satin chrome

Arrow AM40 US26D Cylinder One Side Deadbolt Mortise Lock, Satin chrome

Deadbolt operated only by key outside. (No trim)

Features:Handing:

Handed; field reversible. The lockset can be re-handed without disassembling the lock case.

Door Thickness:1-3/4" (4mm) standard. Optional door thickness available; consult factory.

Backset:2-3/4" (70mm).

Lockcase:Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Armored Front:Heavy gauge steel, 8" (203 mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

Faceplate:Brass, bronze, or stainless steel, attached by machine screws to lockcase front.

Deadbolt:One-piece stainless steel, 19/32" (15mm) x 1 1/4" (32mm) x 1" (25mm) throw.

Keys:Two nickel silver standard.

Warranty:Five-year limited.

model: arrow am40, am40 Arrow, am40 us26d
