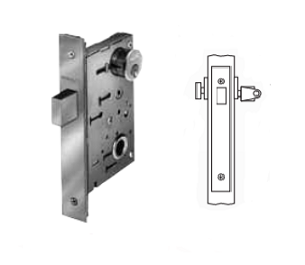

Arrow AM41 26D key outside and turnpiece inside, Deadbolt Mortise Lock - Satin chrome

Arrow AM41 key outside and turnpiece inside, Deadbolt Mortise Lock

Deadbolt operated by key outside and turnpiece inside. (No trim)

Features:Handing:

Handed; field reversible. The lockset can be re-handed without disassembling the lock case.

Door Thickness:1-3/4" (4mm) standard. Optional door thickness available; consult factory.

Backset:2-3/4" (70mm).

Lockcase:Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Armored Front:Heavy gauge steel, 8" (203 mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

Faceplate:Brass, bronze, or stainless steel, attached by machine screws to lockcase front.

Deadbolt:One-piece stainless steel, 19/32" (15mm) x 1 1/4" (32mm) x 1" (25mm) throw.

Keys:Two nickel silver standard.

Warranty:Five-year limited.

model: arrow am41, am41 Arrow, am41 us26d, am4126d
