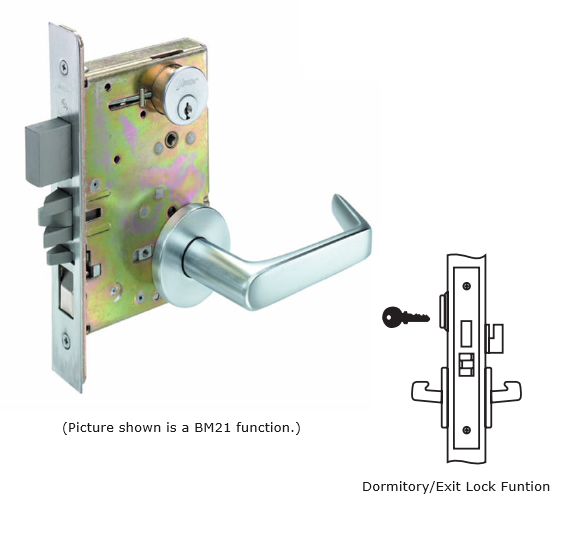

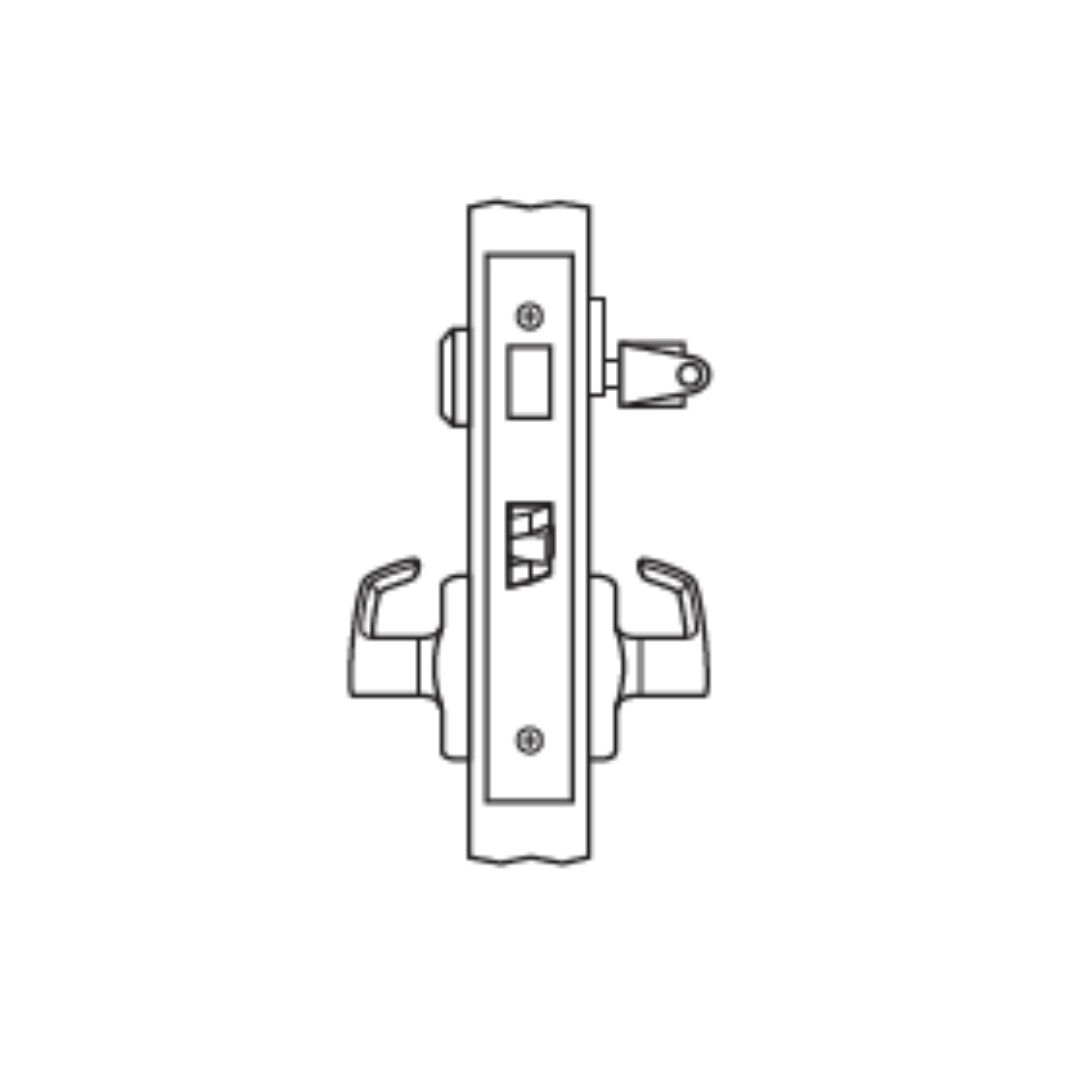

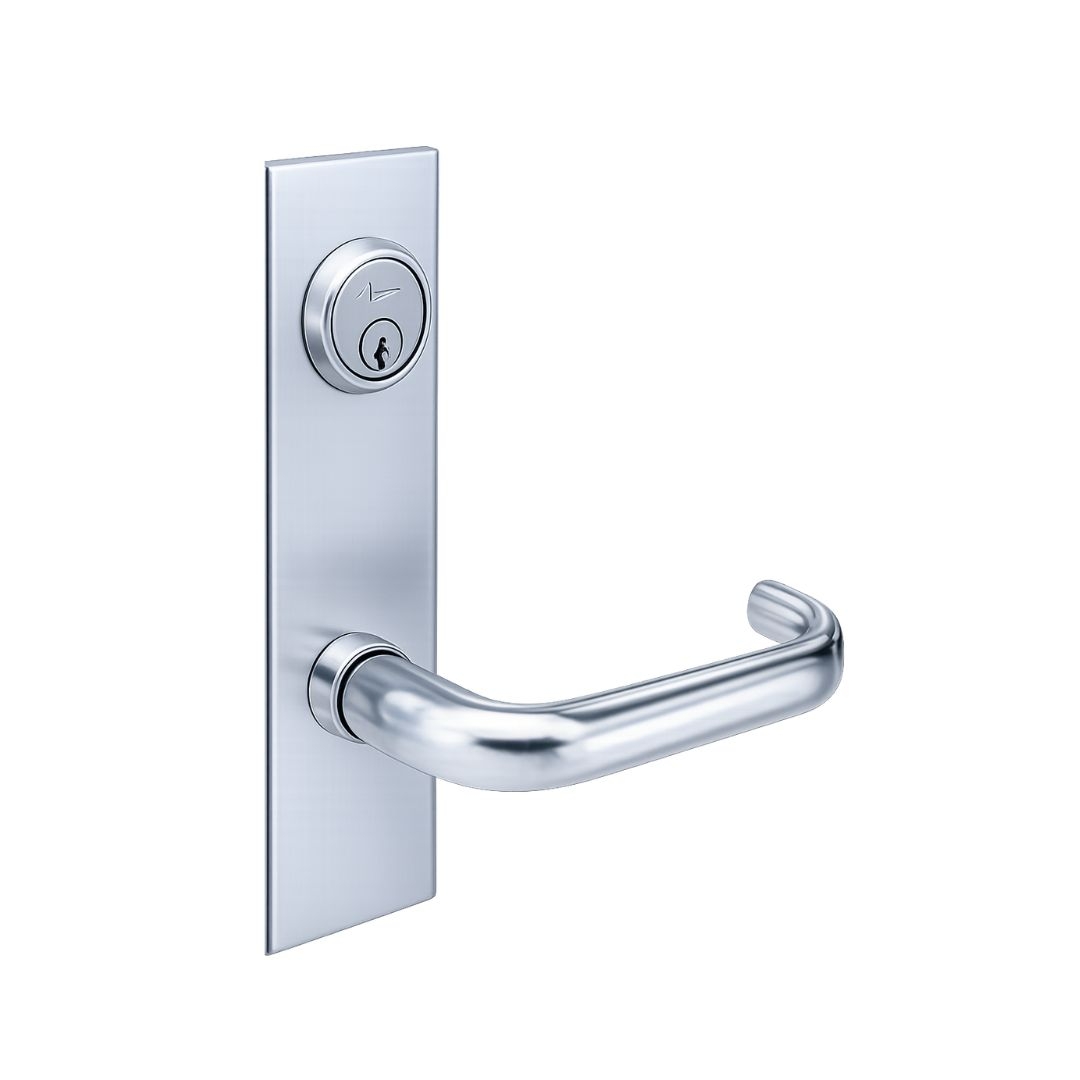

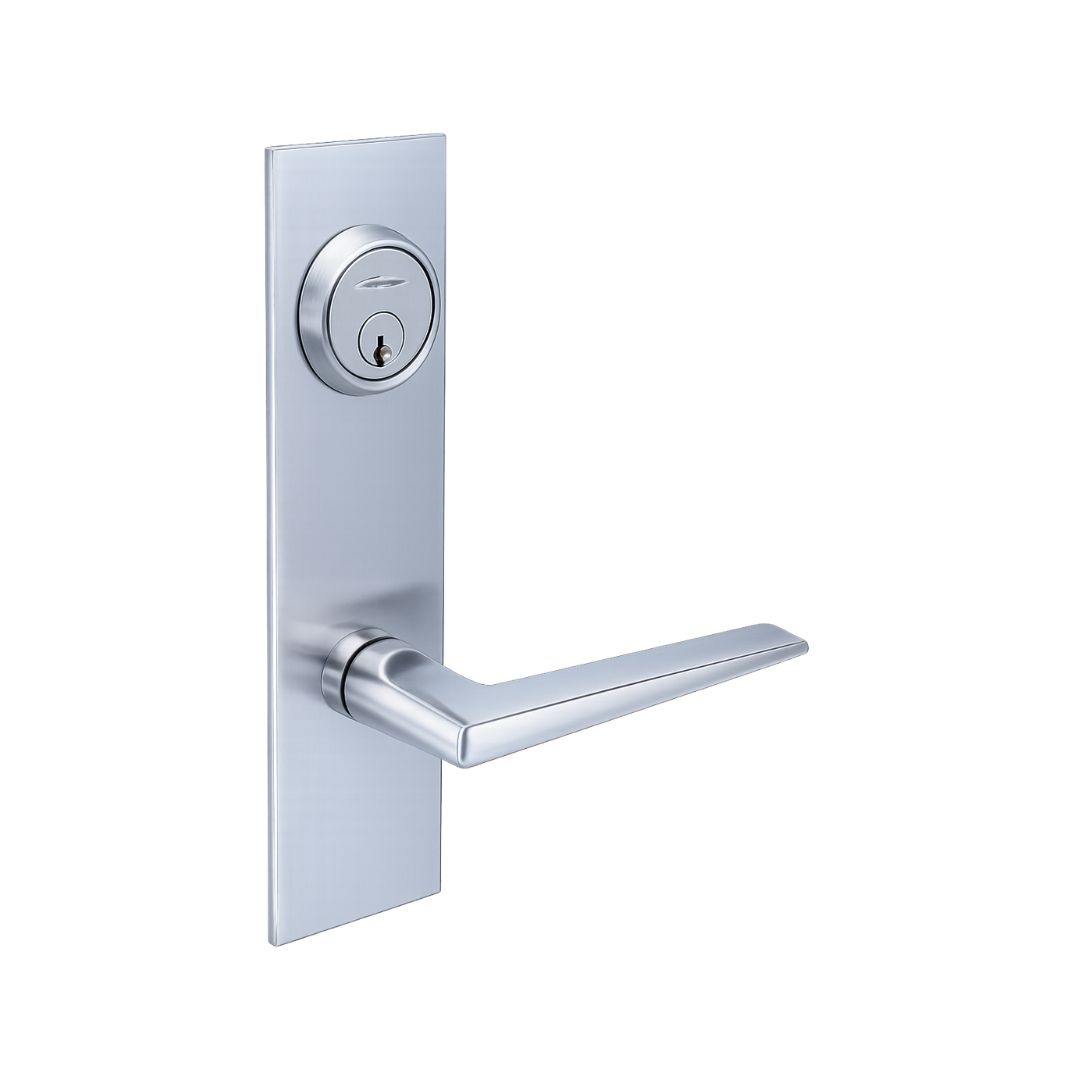

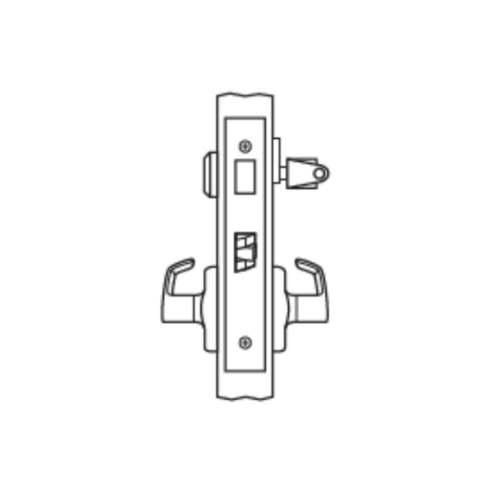

Arrow BM19 Dormitory/Exit Lock - ANSI F13
Latchbolt operated by lever either side. When outside lever is locked by projected deadbolt, (by inside turnpiece or outside key) key outside will retract deadbolt, then latchbolt. Turning inside lever will retract latchbolt and deadbolt simultaneously, which will unlock outside lever. When deadbolt is projected, the latchbolt is deadlocked.
BM/AM Series Features:
Handing: Handed; field reversible. The lockset can be re-handed without disassembling the lock case.
Door Thickness: 1-3/4" (4mm) standard.
Backset: 2-3/4" (70mm).
Lockcase: Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).
Armored Front: Heavy gauge steel, 8" (203 mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
Faceplate: Wrought brass, bronze or stainless steel. Attached by machine screws to lockcase front.
Latchbolt: Stainless steel, 2 piece mechanical with anti-friction insert. 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
Auxiliary Latchbolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.
Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1 1/4" (32mm) x 1" (25mm) throw.
Hub Knob: nickel steel, 5/16" (8mm) and 9/32". Lever: nickelsteel, 5/16" (8mm).
Spacing: Center to center, hub to cylinder: 3-5/8" (92mm). Center to center, hub to turnpiece 2-7/16" (62 mm).
Strike: Wrought brass, bronze or stainless steel. ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strikebox available.

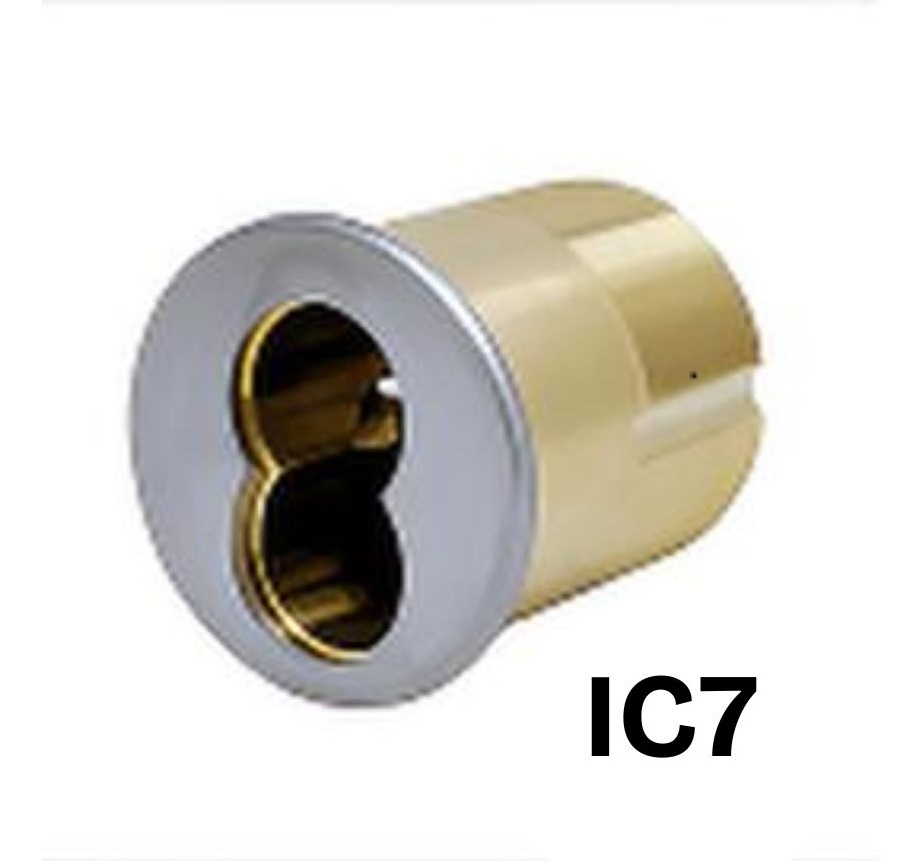

Keyway - A keyway standard.
Keys: Two nickel silver standard.
Warranty: Five-year limited.
Model: Arrow BM19, XH, VH, JH, HSH, BRH, XL, VL, JL, HSL, BRL, 26D, US26D, 03, 3, US3, 10B, US10B, 10, US10, BM19XH, BM19VH, BM19JH, BM19HSH, BM19XH26D, BM19XHUS26D, BM19XH03, BM19XHUS3, BM19XH10B, BM19XHUS10B, BM19XH10, BM19XHUS10, BM19VH26D, BM19VHUS26D, BM19VH03, BM19VHUS3, BM19VH10B, BM19VHUS10B, BM19VH10, BM19VHUS10, BM19JH26D, BM19JHUS26D, BM19JH03, BM19JHUS3, BM19JH10B, BM19JHUS10B, BM19JH10, BM19JHUS10,BM19VHD26D, BM19HSHUS26D, BM19HSH03, BM19HSHUS3, BM19HSH10B, BM19HSHUS10B, BM19HSH10, BM19HSHUS10 BM19BRHUS26D, BM19BRH03, BM19BRHUS3, BM19BRH10B, BM19BRHUS10B, BM19BRH10, BM19BRHUS10 BM19XLUS26D, BM19XL03, BM19XLUS3, BM19XL10B, BM19XLUS10B, BM19XL10, BM19XLUS10 BM19VLUS26D, BM19VL03, BM19VLUS3, BM19VL10B, BM19VLUS10B, BM19VL10, BM19VLUS10 BM19JLUS26D, BM19JL03, BM19JLUS3, BM19JL10B, BM19JLUS10B, BM19JL10, BM19JLUS10 BM19HSLUS26D, BM19HSL03, BM19HSLUS3, BM19HSL10B, BM19HSLUS10B, BM19HSL10, BM19HSLUS10 BM19BRLUS26D, BM19BRL03, BM19BRLUS3, BM19BRL10B, BM19BRLUS10B, BM19BRL10, BM19BRLUS10.
