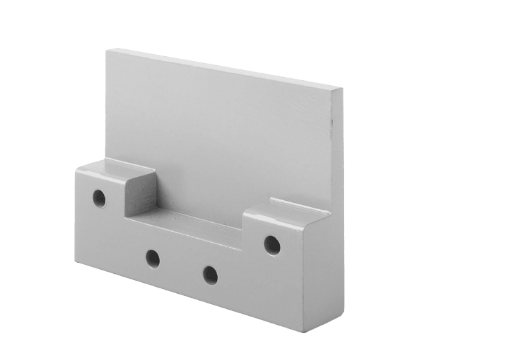

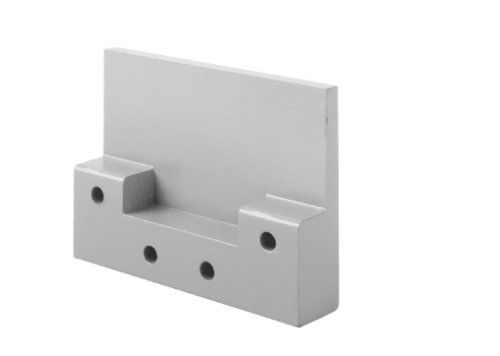

Ives MB1 Mounting Bracket, Stop Widths Over 2-1/2"

**Ives MB1 Mounting Bracket, Stop Widths Over 2-1/2"

**Allows stop mounted hardware to be properly installed without damaging the COR coordinator, such as a parallel arm closer or a non-fire-rated surface vertical rod strike.

Stop mounted hardware will need to be lowered to compensate for the height of the coordinator and mounting bracket.

MB mounting brackets are made of aluminum

Jamb Depth:4-3/4" Min.

Stop Width:Over 2-1/2"

Dimensions:4" W x 3" D x 15/16" T

Finish: USP Prime Coat (600) SP28 - Aluminum Painted (689) SPBLK - Black Painted (622)

Model: MB1, MB1USP, MB1SP28, MB1SPBLK
