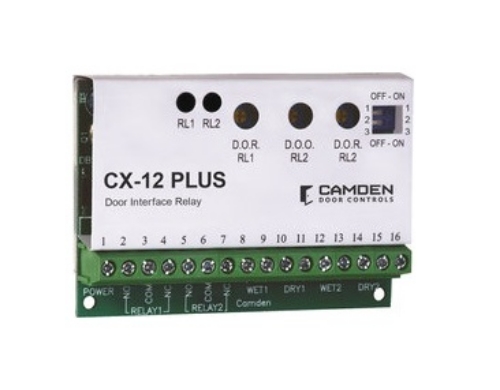

Camden CX-12 Plus Door Interface Relay

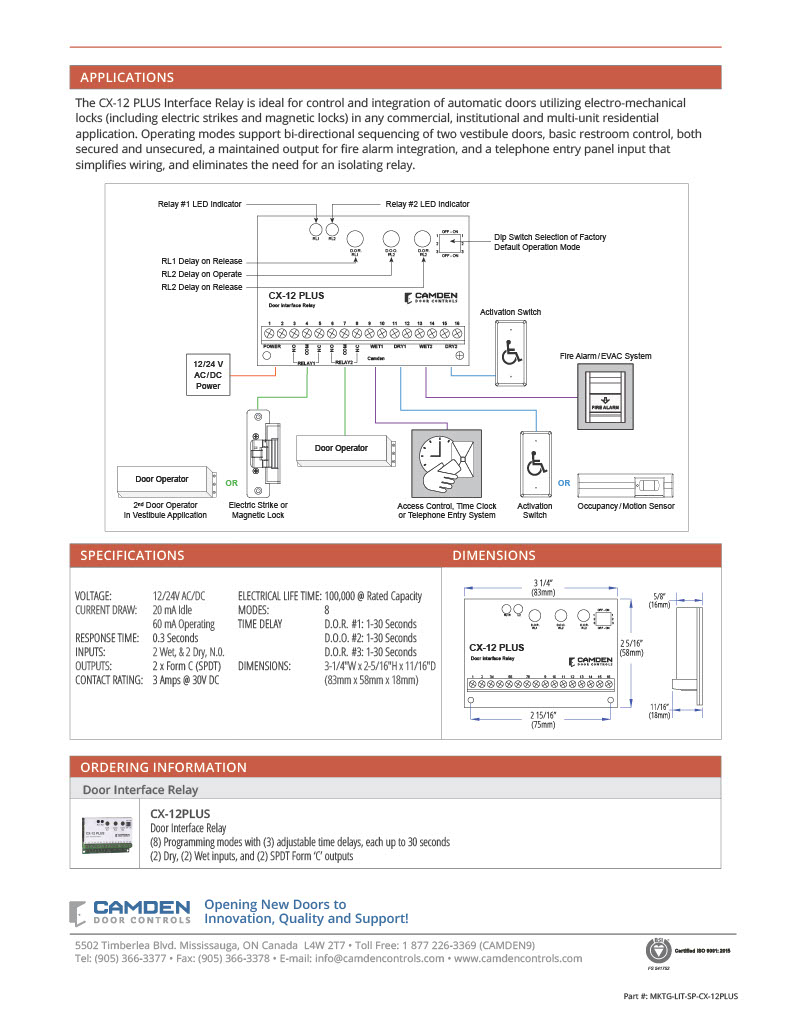

Camden CX-12Plus Door Interface Relay, 12/24 VDC/AC, Includes (2) Dry/(2) Wet/(2) SPDT Relays, 1-30 Second Adjustable Time Delay Options, 8 Programming Modes, Bi-Directional SequencingAPPLICATIONS

The CX-12 PLUS Interface Relay is ideal for control and integration of automatic doors utilizing electro-mechanical locks (including electric strikes and magnetic locks) in any commercial, institutional and multi-unit residential application. Operating modes support bi-directional sequencing of two vestibule doors, basic restroom control, both secured and unsecured, a maintained output for fire alarm integration, and a telephone entry panel input that simplifies wiring, and eliminates the need for an isolating relay.

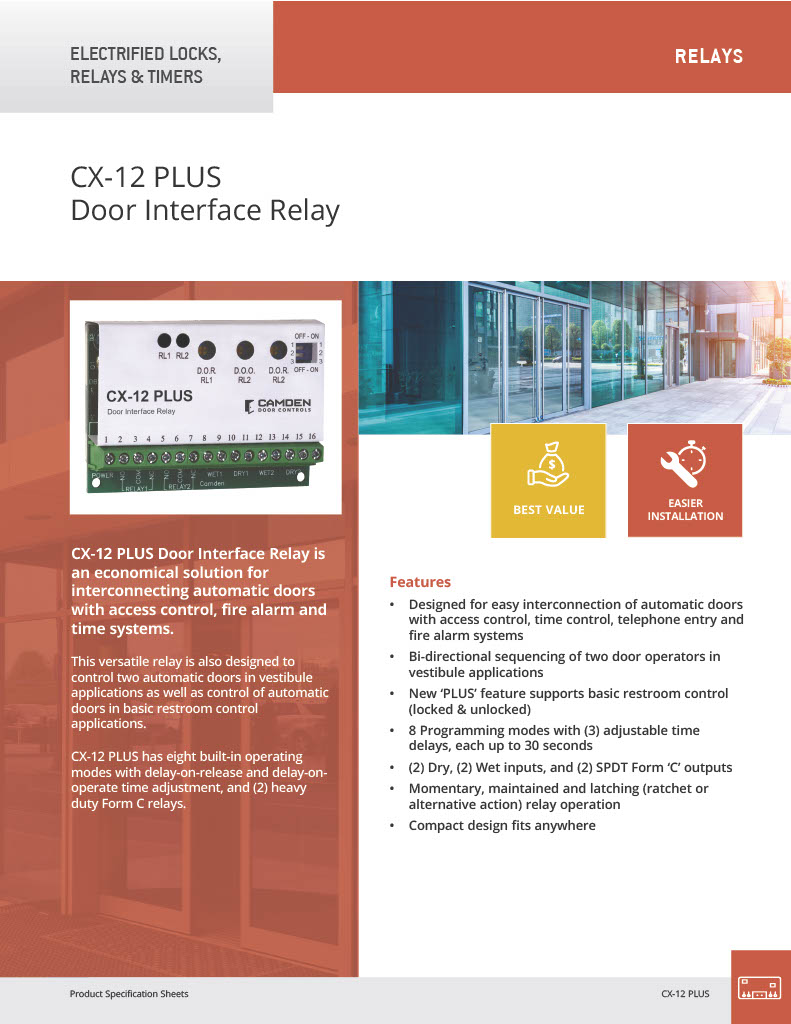

CX-12 PLUS has eight built-in operating modes with delay-on-release and delay-onoperate time adjustment, and (2) heavy duty Form C relays.

FEATURES

• Designed for easy interconnection of automatic doors with access control, time control, telephone entry and fire alarm systems.

• Bi-directional sequencing of two door operators in vestibule applications.

• New 'PLUS' feature supports basic restroom control (locked & unlocked).

• 8 Programming modes with (3) adjustable time delays, each up to 30 seconds.

• (2) Dry, (2) Wet inputs, and (2) SPDT Form 'C' outputs.

• Momentary, maintained and latching (ratchet or alternative action) relay operation.

• Compact design fits anywhere.   SPECIFICATIONS

Voltage: 12/24V AC/DC.

Current Draw: 20 mA Idle, 60 mA Operating.

Response Time: 0.3 Seconds.

Inputs: 2 Wet, & 2 Dry, N.0.

Outputs: 2 x Form C (SPDT).

Contact Rating: 3 Amps @ 30V DC.

Electrical Life: 100,000 @ Rated Capacity.

Modes: 8.

Time Delay D.O.R #1: 1-30 Seconds Time Delay D.O.O #2: 1-30 Seconds Time Delay D.O.R #3: 1-30 Seconds

Dimensions: 3-1/4"W x 2-5/16"H x 11/16"D (83mm x 58mm x 18mm)

CX-12 PLUS Camden, Camden CX-12 PLUS, CamdenCX-12 PLUS, CX-12 PLUSCamden, CX-12 PLUS, CX12PLUS, CX-12 PLUS Camden, Camden CX12 PLUS, CamdenCX12 PLUS, CX12 PLUSCamden, CX12 PLUS, CX12PLUS, CX-12PLUS Camden, Camden CX12PLUS, CamdenCX12PLUS, CX12PLUSCamden, CX12PLUS, CX12PLUS

Camden has combined the industry leading features of our CX-12 Switch Network, including easy system interconnection, and our CX-22 Dual Function Relay, providing bi-directional door sequencing and basic restroom control.

CX-12 Plus Door Interface Relay has 8 programming modes with (3) adjustable time delays, each up to 30 seconds. There are (2) Dry and (2) Wet inputs, with (2) SPDT Form 'C' outputs.

The release of CX-12 Plus Door Interface Relay makes CX-12 and CX-22 model relays obsolete. Please contact Camden customer service for assistance with any questions or concerns you may have.
