About this item

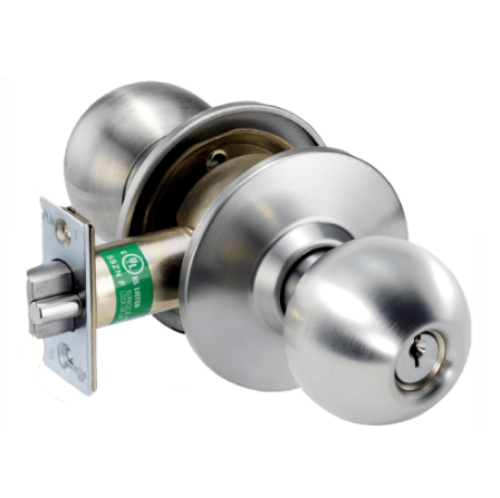

The Arrow HK12 BB 32D is a Grade 1 commercial storeroom cylindrical knob lock from the Arrow HK Series, Arrow's heavy-duty cylindrical platform engineered for the most robust commercial and institutional applications. The full part number breaks down as: HK (HK Series Grade 1 cylindrical knob platform), 12 (function digit for storeroom ANSI F86), BB (ball knob trim), 32D (US32D satin stainless steel finish). The HK12 carries ANSI function F86 (storeroom): the latchbolt is operated by key in the outside knob or by the inside knob; the outside knob is always rigid and cannot be unlocked by push button or thumbturn. This is the standard institutional security function for any door that must be locked from the outside at all times. ANSI/BHMA A156.2 Series 4000 Grade 1 certified. UL and CUL listed for use on 3-hour A-label single swinging fire doors. Backed by Arrow's 10-year warranty. SKU HK12BB32D. In stock under Arrow Knob Locks within Cylindrical Knob Locks in Commercial Locks.
ANSI F86 Storeroom Function Explained

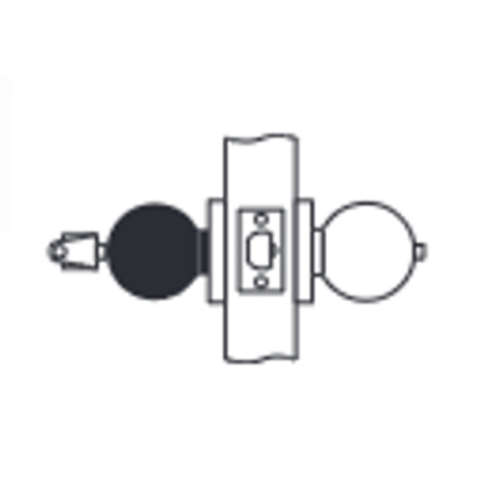

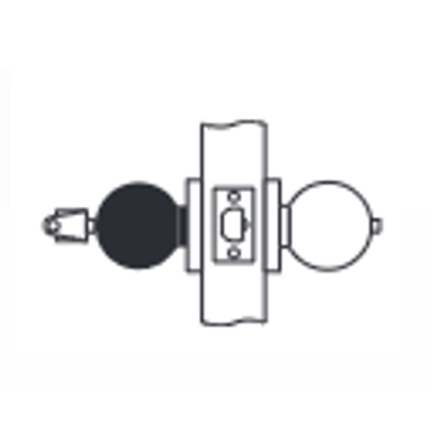

Storeroom (F86) is one of the most-specified ANSI functions in commercial hardware because it is simple, secure, and code-compliant. The outside knob stays rigid until a key turns the cylinder. The key retracts the latch and the knob turns. Release the key and the outside knob locks again automatically. The inside knob is always free for unobstructed egress, which is what makes this an ANSI Grade 1 code-compliant function for occupied rooms. Specify the HK12 on supply and storage closets, IT and server rooms, mechanical and electrical rooms, drug storage in healthcare facilities, evidence rooms, school equipment closets, hospital storerooms, government storerooms, and any commercial opening where every entry needs a key and every exit needs to be free.
Where Arrow Sits in the Commercial Lockset Market
Arrow is part of the ASSA ABLOY family of brands and competes directly with BEST 8K, Schlage AL/ND, Sargent 7-Line/10-Line, Corbin Russwin CL3300, and Yale 5400LN. Arrow's value proposition is the longest standard warranty in the value-tier Grade 1 segment (10 years), full SFIC interchangeability with BEST and Falcon cores, and Schlage C-keyway compatibility for facilities standardizing on Schlage keying. For facility maintenance teams, locksmiths, and spec writers, that means the HK12 drops into existing keying environments without re-pinning the master system or replacing the cylinder hardware. See sister Arrow commercial cylindrical platforms in Arrow Lever Locks for ADA-compliant lever trim configurations.
Specifications

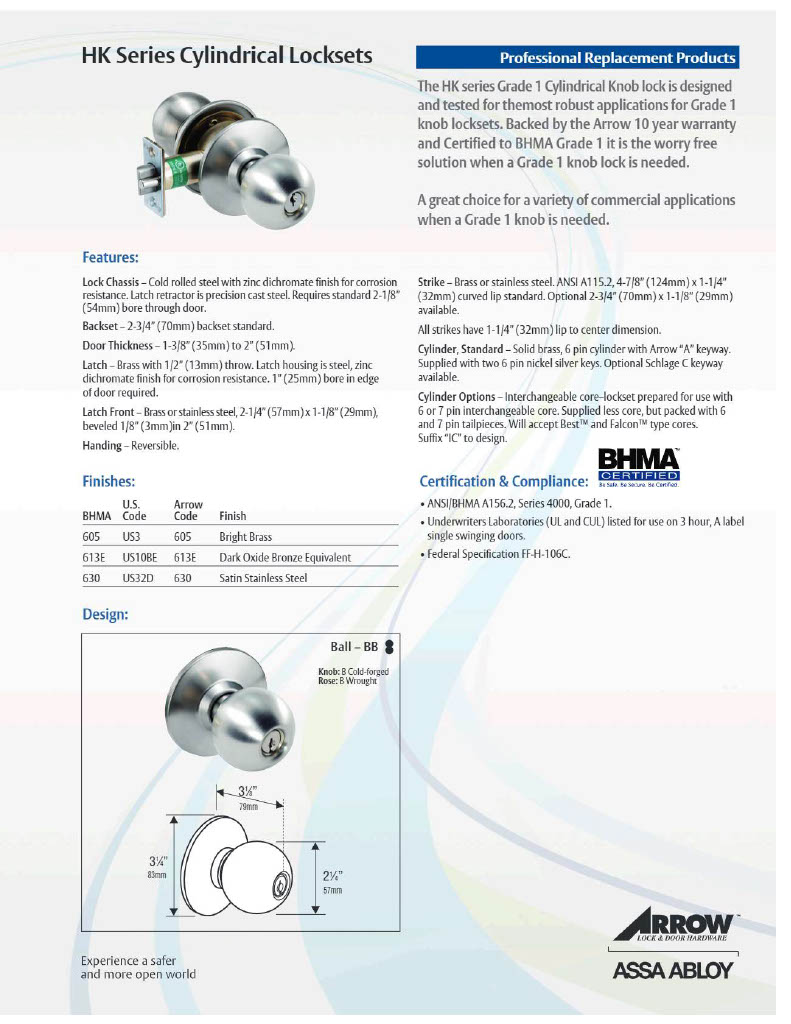

Function: ANSI F86 storeroom with deadlocking latchbolt, outside knob always rigid, inside knob always free for egress. Compliance: ANSI/BHMA A156.2 Series 4000 Grade 1; UL and CUL listed for use on 3-hour A-label single swinging fire doors. Lock chassis: cold rolled steel with zinc dichromate finish for corrosion resistance; latch retractor is precision cast steel; requires standard 2-1/8" cross-bore through door. Door thickness: 1-3/8" to 2". Backset: 2-3/4". Latch: stainless steel, 1/2" throw; latch housing is steel with zinc dichromate corrosion finish; requires 1" bore in door edge. Latch front: brass or stainless steel, 2-1/4" x 1-1/8", beveled 1/8" in 2". Strike: brass or stainless steel, ANSI A115.2, 4-7/8" x 1-1/4" curved lip standard with 1-1/4" lip-to-center dimension. Cylinder: solid brass 6-pin with Arrow "AR" or Schlage "C" keyway; supplied with two 6-pin nickel silver keys. Handing: reversible. Finish: US32D Satin Stainless Steel.
Cylinder and Keyway Options
Three cylinder configurations available at order. Standard Cylinder Arrow "A" keyway: ships with the Arrow proprietary keyway for facilities running an existing Arrow master key system. Standard Cylinder Schlage "C" keyway: ships with Schlage C-keyway compatible cylinder for facilities standardizing on Schlage keying without paying Schlage hardware pricing. IC prepped less core: ships less core, prepped to accept 6 or 7-pin SFIC cores compatible with Arrow, BEST, and Falcon. The IC option is the right purchase for any facility running BEST or Falcon SFIC keying because the lock body integrates directly into the existing system. Add the "IC" suffix to the SKU in order. Keying upgrades available at order: Standard, Keyed Alike (KA), or Master Keyed (MK).
Where the HK12 Sits in the Arrow HK Series
The HK Series covers every common ANSI cylindrical function on the same Grade 1 chassis. Sister SKUs available in BB 32D trim and finish: Arrow HK01 Passage Cylindrical Lock for non-locking passage doors, Arrow HK02 Privacy Cylindrical Lock for restroom and bedroom privacy, Arrow HK08 Dummy Cylindrical Lock for inactive doors, Arrow HK11 Turn-Pushbutton Entrance Cylindrical Lock for keyed-entry/inside-locking F109 entrance function, and Arrow HK17 Classroom Cylindrical Lock for classroom F84 function. For Grade 2 medium-duty applications, see Arrow MK Series alternatives like Arrow MK01 Passage and Arrow MK02 Privacy.
Where to Specify the HK12 BB 32D
Office building storage and supply closets, school equipment rooms and IT closets, university dormitory storerooms, hospital and clinic storerooms (drug storage, supplies, linen), retail back-of-house stockrooms, restaurant kitchen storerooms, hotel laundry and supply rooms, government office storage, multi-family building maintenance closets, mechanical and electrical rooms, server rooms, evidence rooms in police facilities, and any commercial opening that needs ANSI Grade 1 storeroom function with always-rigid outside knob and free interior egress.
Where This Sits in the Site Catalog
The HK12 BB 32D lives in the Arrow HK Series under Arrow Knob Locks within Cylindrical Knob Locks in the Commercial Locks catalog.
