Arrow HK11 BB 32D - Grade 1 Turn-Pushbutton Entrance Cylindrical Lock

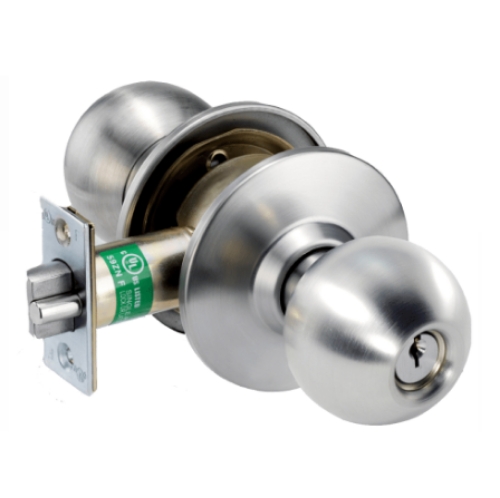

Arrow HK11 BB 32D - Grade 1 Entrance/Office Knob Lock - Satin Stainless Steel

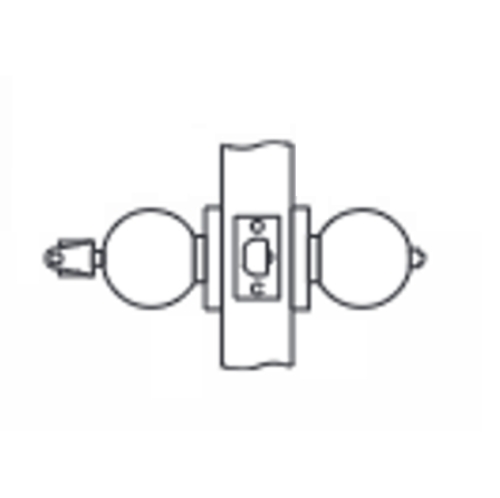

Entrance/Office - ANSI F109

Latchbolt operated by knob either side except when outside knob is locked by turnbutton inside. When outside knob is locked, latchbolt operated by key outside or turning inside knob. Pushing and turning inside button will cause outside knob to remain locked. Button will then need to be manually rotated to unlock outside knob.

Features*Lock Chassis:* Cold rolled steel with zinc dichromate finish for corrosion resistance. Latch retractor is precision cast steel. Requires standard 2-1/8" (53.97 mm) bore through door.

Door Thickness: 1-3/8" (35 mm) to 2" (50.80 mm)

Latch: Stainless steel with 1/2" (12.7 mm) throw. Latch housing is steel, zinc dichromate finish for corrosion resistance. 1" (25.4mm) bore in edge of door required.

Latch Front: Brass or stainless steel, 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm), beveled 1/8" (3.17 mm) in 2" (50.8 mm), 2-3/4" (69.85 mm) Backset

Strike: Brass or stainless steel. ANSI A115.2, 4-7/8" (123.82 mm) x 1-1/4" (31.75 mm) curved lip standard with a 1-1/4" (31.75mm) lip to center dimension.

Cylinder, Standard: Solid brass, 6 pin cylinder with Arrow “AR" keyway or "CS" keyway. Supplied with two 6 pin nickel silver keys.

Cylinder Options: Interchangeable core–lockset prepared for use with 6 or 7 pin interchangeable core. SFIC format. Supplied less core. Will accept Best™ and Falcon™ type cores. Suffix “IC" to design.

Handing: Reversible.

Finish: US32D.

CertificationANSI/BHMA A156.2, Series 4000, Grade 1Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors
