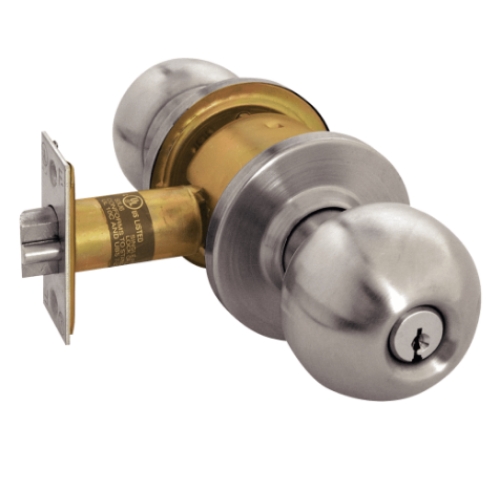

Arrow RK12BD - Grade 2 Storeroom Cylindrical Lock

Arrow RK12BD - Grade 2 Storeroom Knob Lock

Outside knob always rigid. Latchbolt operated by key in outside knob, or by turning inside knob.

Knob:Ball - BD

Finishes:605 US3 03 Bright Brass, 606 US4 04 Satin Brass, 612 US10 10 Satin Bronze, 613 US10B 10B Dark Oxide Bronze, Oil Rubbed, 630 US32D 32D Satin Stainless Steel

HandingNon-handed

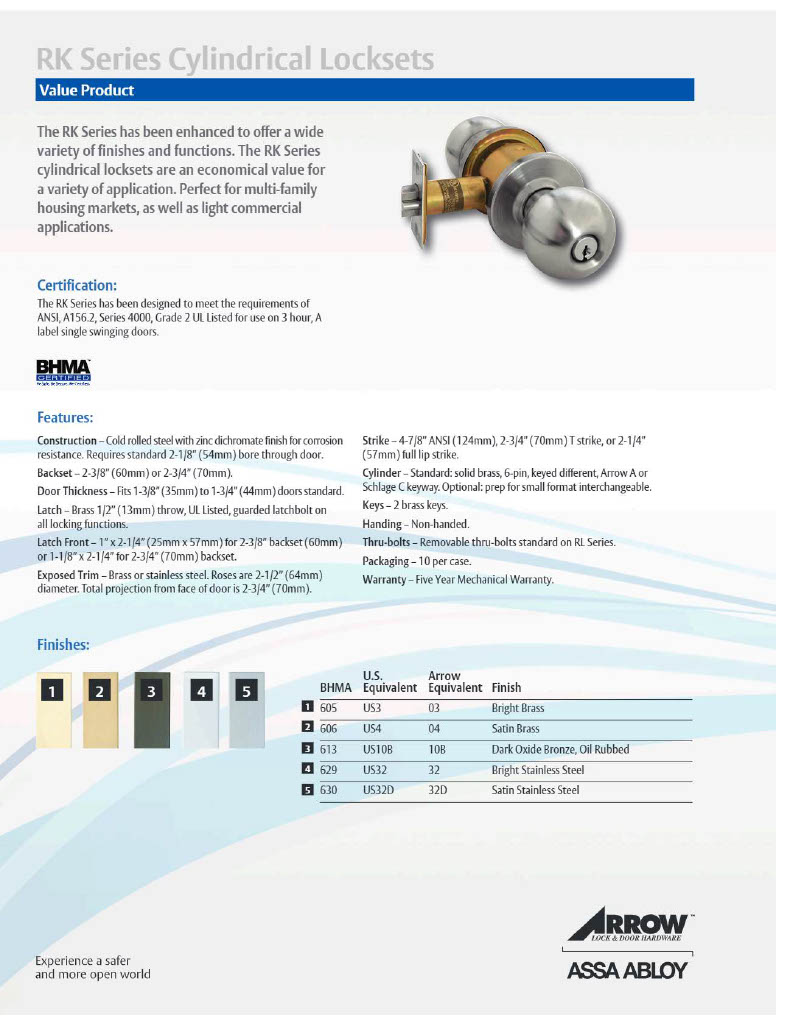

*Construction*Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.

Thru-boltsRemovable thru-bolts standard on RL Series

*Backset*2-3/8" (60.31mm) or 2-3/4" (69.85mm)

*Door Thickness*Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.

*Latch*Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions

*Latch Front*1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.

*Exposed Trim*RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm).

*Strike*4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.

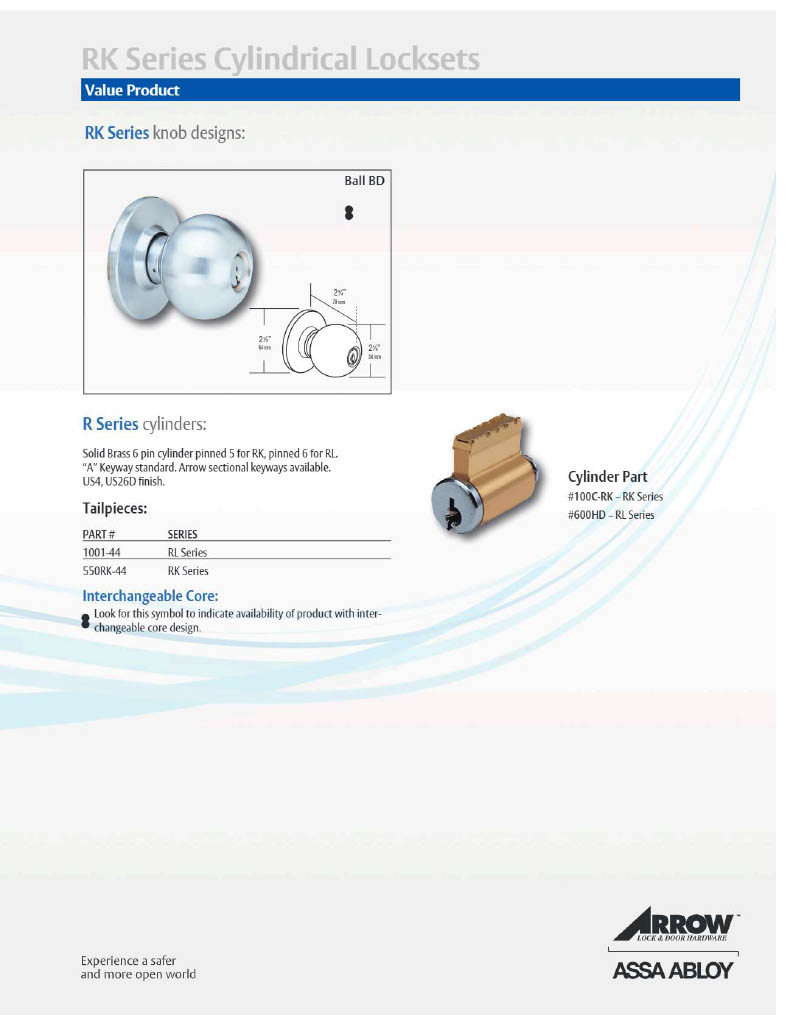

*Cylinder*Solid brass 6 pin. Arrow "A" keyway standard. C keyway optional.

*Keys*2 brass keys

*Warranty*Five Year Mechanical Warranty

Model:Arrow RK12, BD RK12BD, RK12BD26D, RK12BD3, RK12BD4, RK12BD10, RK12BD10B, RK12TA10B, RK12BD32D

Certification:The RK Series has been designed to meet the requirements of ANSI, A156.2, Series 4000, Grade 2 UL Listed for use on 3 hour, A label single swinging doors.
