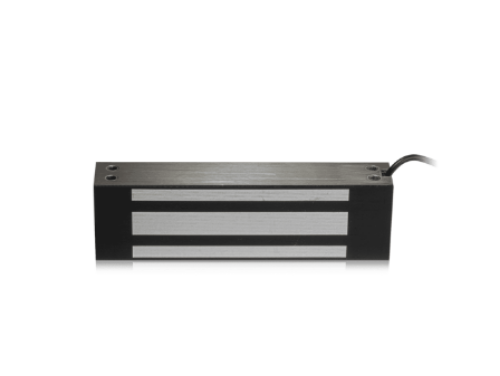

BEA 10GL1200SR Weather Resistant Swinging Door / Gate, Front Mount Electromagnetic Lock

BEA 10GL1200SR Weather Resistant Swinging Door / Gate,  Front Mount Electromagnetic Lock, With 3/4 In. Conduit Fitting, NEMA 4, 12 / 24 VDC (UL Listed Power Supply Required), 1200 Lb.

Model:*10GL1200SR-*1200 lb / Front mount for swinging door / gate.

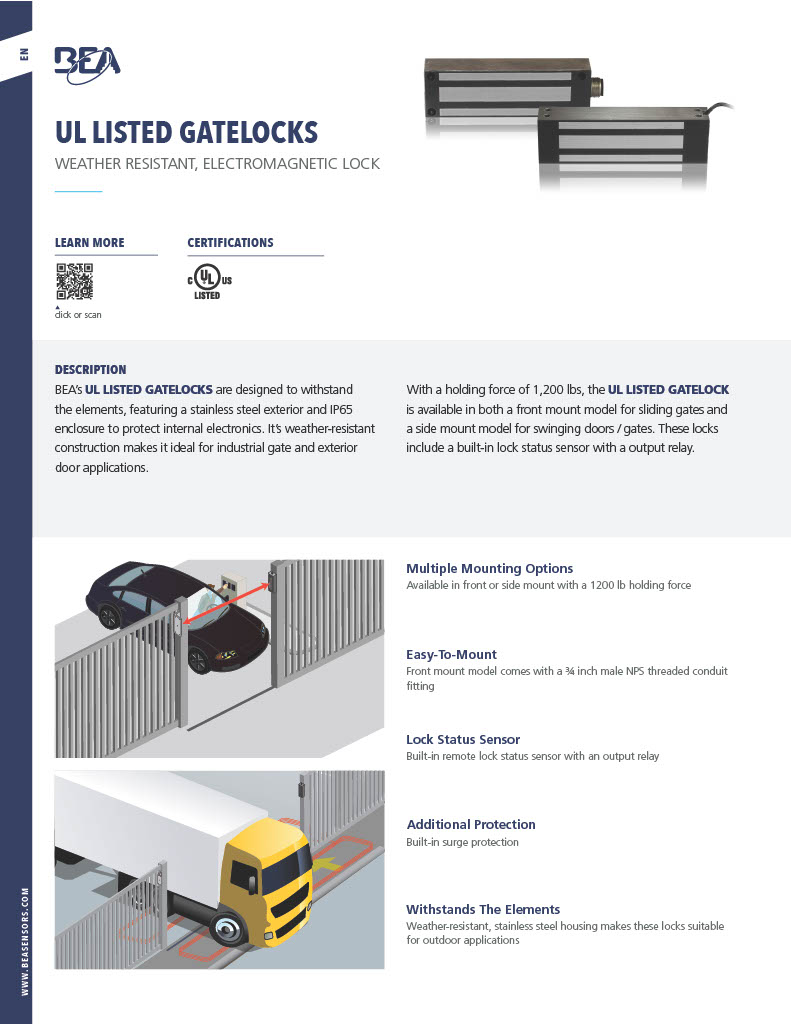

DESCRIPTION:

BEA's UL LISTED GATELOCKS are designed to withstand the elements, featuring a stainless steel exterior and IP65 enclosure to protect internal electronics. It's weather-resistant construction makes it ideal for industrial gate and exterior door applications.

With a holding force of 1,200 lbs, the UL LISTED GATELOCK is available in both a front mount model for sliding gates and a side mount model for swinging doors / gates.

These locks include a built-in lock status sensor with a output relay.

Features:

Multiple mounting options: Available in front or side mount with a 1200 lb holding force.

Easy-to-mount: Front mount model comes with a 3/4 inch male NPS threaded conduit fitting.

Lock status sensor: Built-in remote lock status sensor with an output relay.

Withstands the elements: Weather-resistant, stainless steel housing makes these locks suitable for outdoor applications.

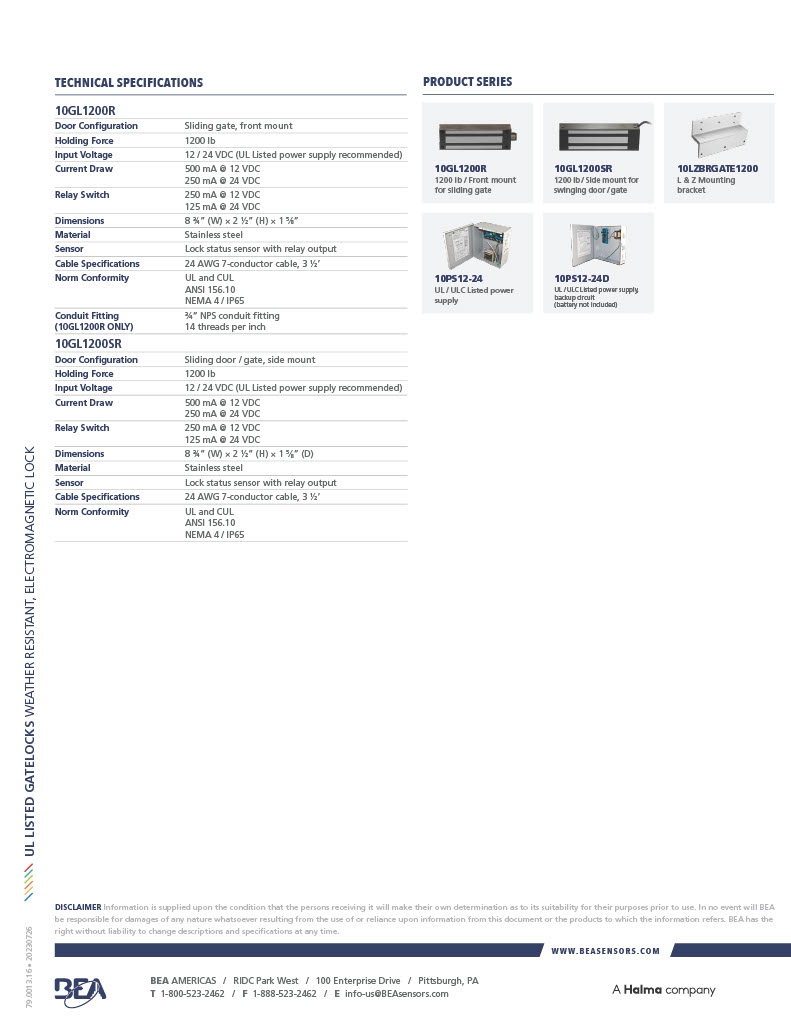

TECHNICAL SPECIFICATIONS:

Door Configuration:Sliding gate, front mount.

Holding Force:1200 lb.

Input Voltage:12 / 24 VDC (UL Listed power supply recommended).

Current Draw:   500 mA @ 12 VDC.   250 mA @ 24 VDC.

Relay Switch:   250 mA @ 12 VDC.   125 mA @ 24 VDC.

Dimensions:8 3/4" (W) x 2 1/2" (H) x 1 5⁄8".

Material:Stainless steel.

Sensor:Lock status sensor with relay output.

Cable Specifications:24 AWG 7-conductor cable, 3 1/2'.

Norm Conformity:   UL and CUL.   ANSI 156.10.   NEMA 4 / IP65.
