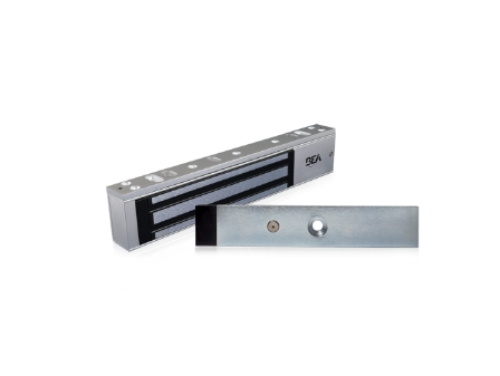

BEA 10MAGLOCK3ULDS Single Electromagnetic Surface Mount Lock - Lock Status Sensor / Door Status Sensor - LED Status - 600 lb / Single

10MAGLOCK3ULDS
10MAGLOCK3ULDS
naxt
prev

Product Details

BEA 10MAGLOCK3ULDS Single Electromagnetic Surface Mount Lock, UL / ULC Listed, LED Status, Lock Status Sensor / Door Status Sensor, 0 to 90 S Hold Open Timer (Relock), 12 / 24 VDC (UL Listed Power Supply Required), 600 Lb.

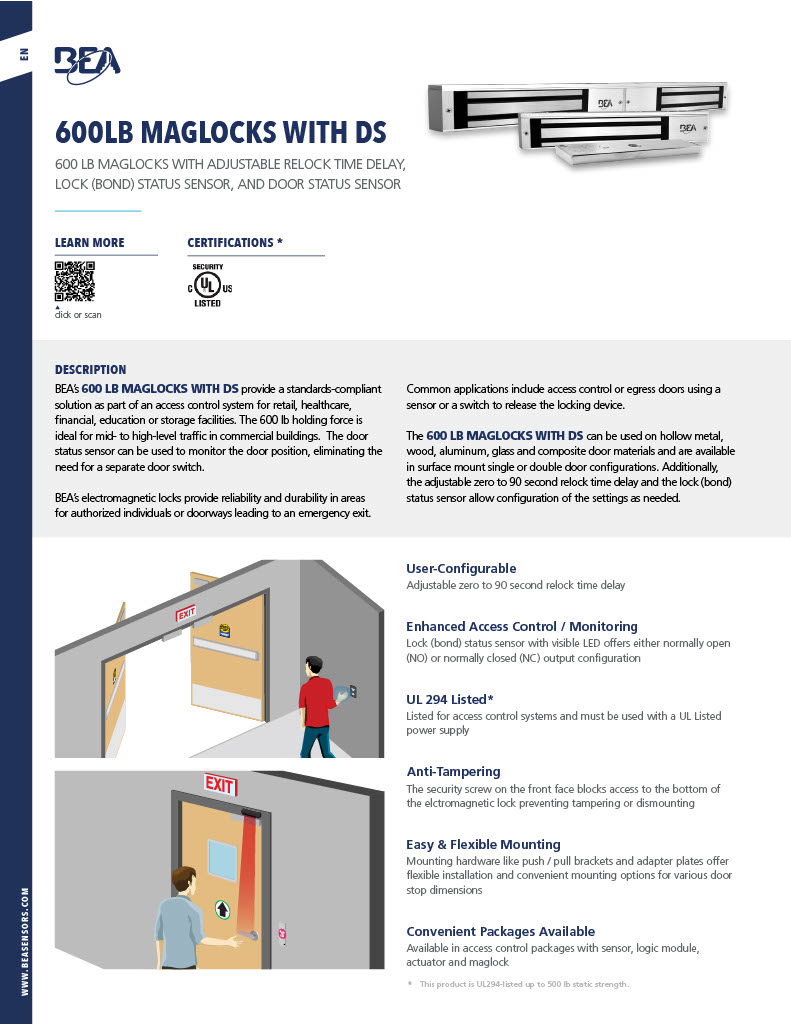

DESCRIPTION: BEA's UL LISTED MAGLOCK WITH DS provides a standards compliant locking solution for retail, healthcare, banking and other high security facilities that require a UL listed security product. Maglocks can be used on hollow metal, wood, aluminum, glass and composite door materials.

The UL LISTED MAGLOCK WITH DS is available in surface mount, single or double door configurations, with a holding force of 600 or 1,200 lbs. These locks include an adjustable zero to 90 second relock time delay, lock status sensor with visible LED and door status sensor.

Customizable: Adjustable zero to 90 second relock time delay.

Enhanced Reliability: Lock status sensor with visible LED offers either normally open (NO) or normally closed (NC) output configurations.

UL Listed: Input voltage of 12 / 24 VDC, must be used with UL Listed power supply.

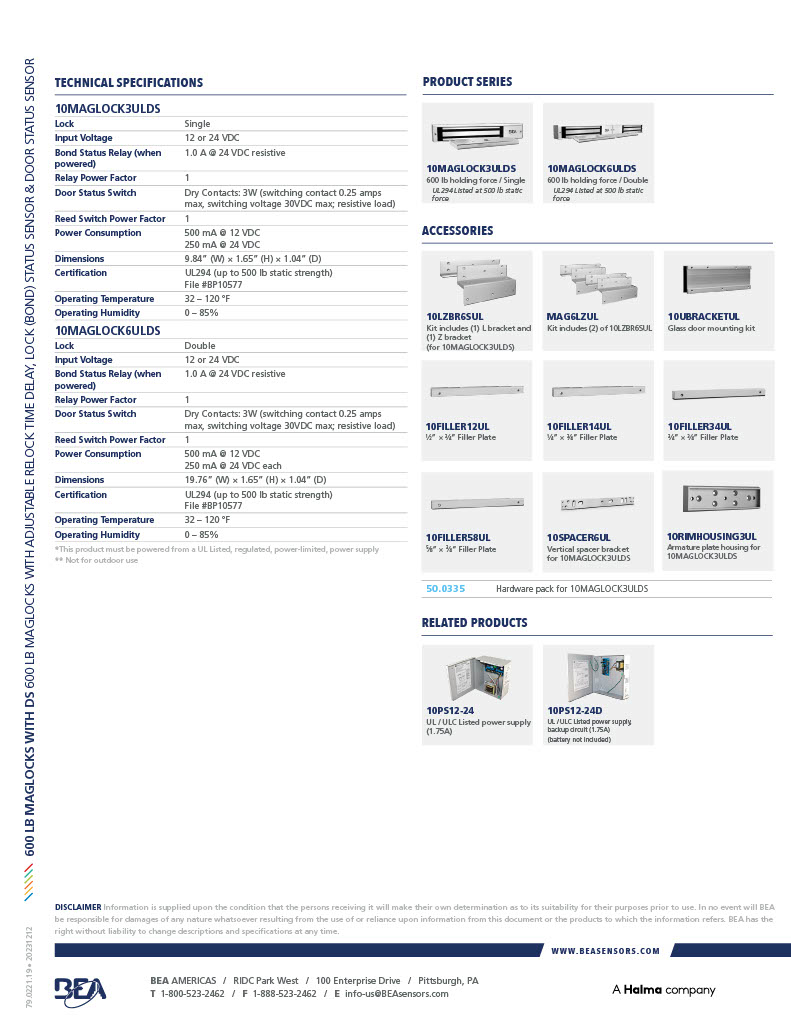

Mounting Accessories: Variety of mounting hardware available. TECHNICAL SPECIFICATIONS:

Door Configuration:Single, surface mount.

Holding Force:600 lb.

Input Voltage:12 / 24 VDC (UL Listed power supply required).

Power Consumption:  505 mA @ 12 VDC  260 mA @ 24 VDC

Dimensions:9.84" (W) x 1.65" (H) x 1.02" (D).

Material:Anodized Aluminum housing.

Relock Time Delay:0 - 90 s.

Sensor:Lock Status Sensor (NO or NC outputs).

Output Relay:Up to 1 A @ 24 VDC.

BEA MAGLOCK, BEA MAGLOCKS, BEA 10MAGLOCK3ULDS, 10MAGLOCK3ULDS, 10MAGLOCK3ULDS  BEA, BEA10MAGLOCK3ULDS, 10MAGLOCK3ULDS, 10MAGLOCK3ULDS BEA, BEA 10MAGLOCK3ULDS, 10MAGLOCK3ULDS, MAGLOCK3ULDS BEA, BEAMAGLOCK3ULDS, MAGLOCK3ULDS, MAGLOCK3ULDS BEA, BEA 10MAGLOCK3ULDS, 10MAGLOCK3ULDS, 10MAGLOCK3ULDS  BEA, BEA10MAGLOCK3ULDS, 10MAGLOCK3ULDS, 10MAGLOCK3ULDS BEA, BEA 10MAGLOCK3ULDS, 10MAGLOCK3ULDS, MAGLOCK3ULDS BEA, MAGLOCK3ULDSBEA, MAGLOCK3ULDS, BEA MAGLOCK3ULDS,

BEA 10MAGLOCK3ULDS Single Electromagnetic Surface Mount Lock - Lock Status Sensor / Door Status Sensor - LED Status - 600 lb / Single

SKU: 10MAGLOCK3ULDS

In Stock
icon Chat
Picture for manufacturer BEA

$167.54

$413.48

You saved $245.94

About this item

UL LISTED MAGLOCKS MAGLOCKS WITH ADJUSTABLE RELOCK TIME DELAY & LOCK STATUS SENSOR, DOOR STATUS SENSOR

Resources

BEA 10MAGLOCK3ULDS Single Electromagnetic Surface Mount Lock, UL / ULC Listed, LED Status, Lock Status Sensor / Door Status Sensor, 0 to 90 S Hold Open Timer (Relock), 12 / 24 VDC (UL Listed Power Supply Required), 600 Lb.

DESCRIPTION: BEA's UL LISTED MAGLOCK WITH DS provides a standards compliant locking solution for retail, healthcare, banking and other high security facilities that require a UL listed security product. Maglocks can be used on hollow metal, wood, aluminum, glass and composite door materials.

The UL LISTED MAGLOCK WITH DS is available in surface mount, single or double door configurations, with a holding force of 600 or 1,200 lbs. These locks include an adjustable zero to 90 second relock time delay, lock status sensor with visible LED and door status sensor.

Customizable: Adjustable zero to 90 second relock time delay.

Enhanced Reliability: Lock status sensor with visible LED offers either normally open (NO) or normally closed (NC) output configurations.

UL Listed: Input voltage of 12 / 24 VDC, must be used with UL Listed power supply.

Mounting Accessories: Variety of mounting hardware available. TECHNICAL SPECIFICATIONS:

Door Configuration:Single, surface mount.

Holding Force:600 lb.

Input Voltage:12 / 24 VDC (UL Listed power supply required).

Power Consumption:  505 mA @ 12 VDC  260 mA @ 24 VDC

Dimensions:9.84" (W) x 1.65" (H) x 1.02" (D).

Material:Anodized Aluminum housing.

Relock Time Delay:0 - 90 s.

Sensor:Lock Status Sensor (NO or NC outputs).

Output Relay:Up to 1 A @ 24 VDC.
