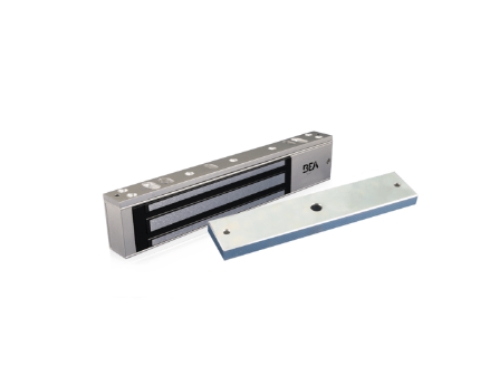

BEA 10MAGLOCK3UL Single Electromagnetic Surface Mount Lock - LED Status - Lock Status Sensor - 600 lb / Single

BEA 10MAGLOCK3UL Single Electromagnetic Surface Mount Lock, UL / ULC Listed, LED Status, Lock Status Sensor (NO or NC Outputs), 0 to 90 S Hold Open Timer (Relock), (1) Bond Status Relay, 12 / 24 VDC (UL Listed Power Supply Required), 600 Lb.

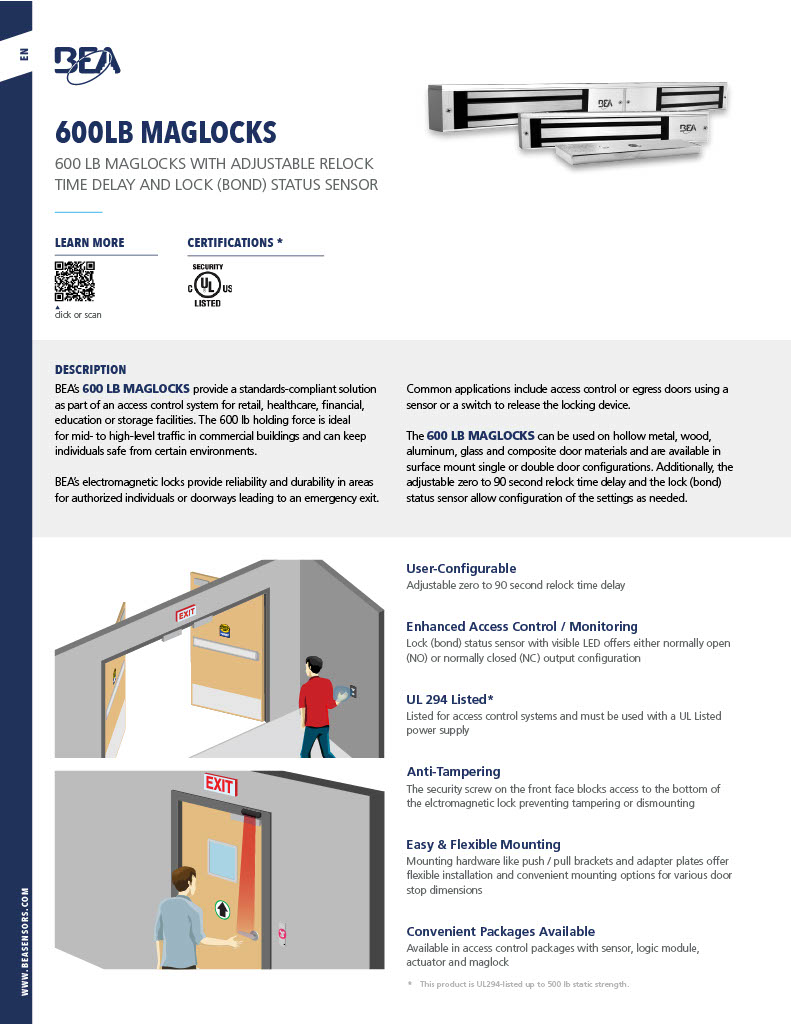

DESCRIPTION BEA's UL LISTED MAGLOCKS provide a standards compliant locking solution for retail, healthcare, banking and other high security facilities that require UL Listed security products. maglocks can be used on hollow metal, wood, aluminum, glass and composite door materials.

The UL LISTED MAGLOCKS are available in surface mount single or double door configurations, with holding force of 600 or 1,200 lbs. These locks include adjustable zero to 90 second relock time delay and a lock status sensor with visible LED.

Customizable: Adjustable zero to 90 second relock time delay.

Enhanced Reliability: Lock status sensor with visible LED offers either normally open (NO) or normally closed (NC) output configurations.

UL Listed: Input voltage of 12 / 24 VDC, must be used with UL Listed power supply.

Mounting Accessories: Variety of mounting hardware available.

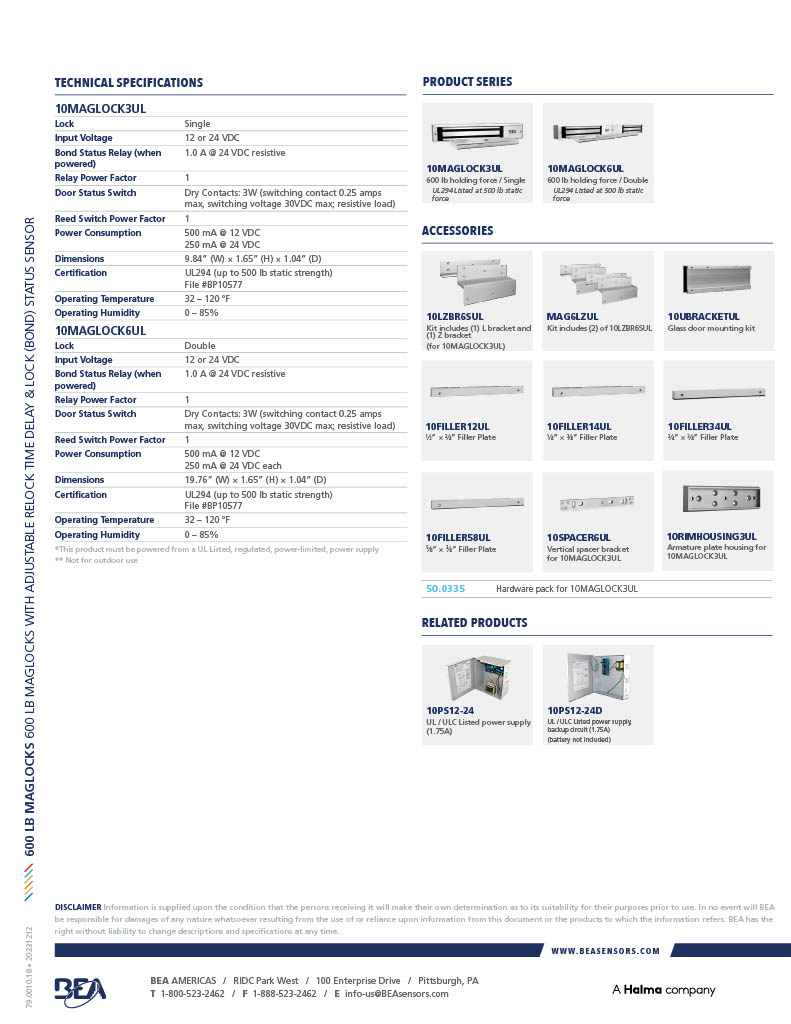

Convenient Packages Available: Available in access control packages with request-to-exit sensor, logic module, actuator, power supply and maglock. TECHNICAL SPECIFICATIONS:

Door Configuration:Single, surface mount.

Holding Force:600 lb.

Input Voltage:12 / 24 VDC (UL Listed power supply required).

Power Consumption:  505 mA @ 12 VDC  260 mA @ 24 VDC

Dimensions:9.84" (W) x 1.65" (H) x 1.02" (D).

Material:Anodized Aluminum housing.

Relock Time Delay:0 - 90 s.

Sensor:Lock Status Sensor (NO or NC outputs).

Output Relay:Up to 1 A @ 24 VDC.
