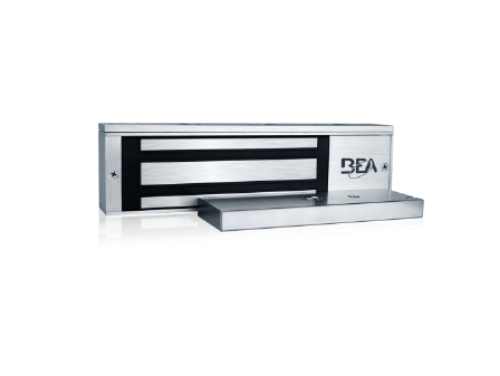

BEA 10MAGLOCK1UL Single Electromagnetic Surface Mount Lock - LED Status - Lock Status Sensor - 1200 lb / Single

10MAGLOCK1UL..

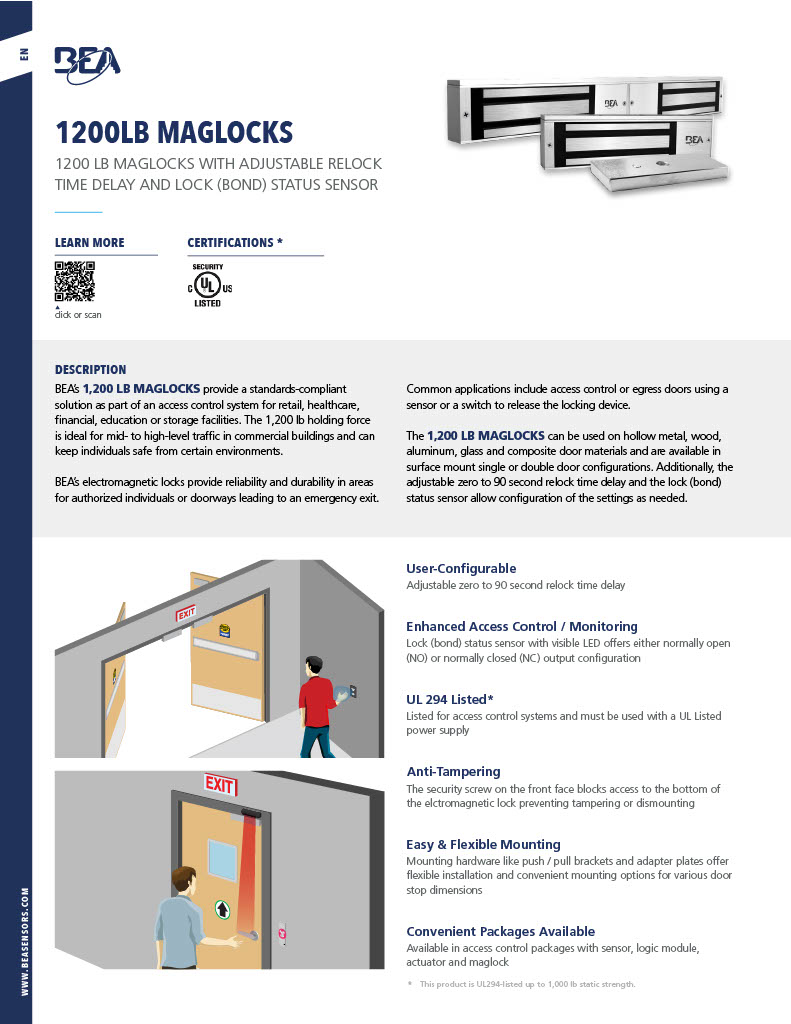

1-page1-EN-MAGLOCKS

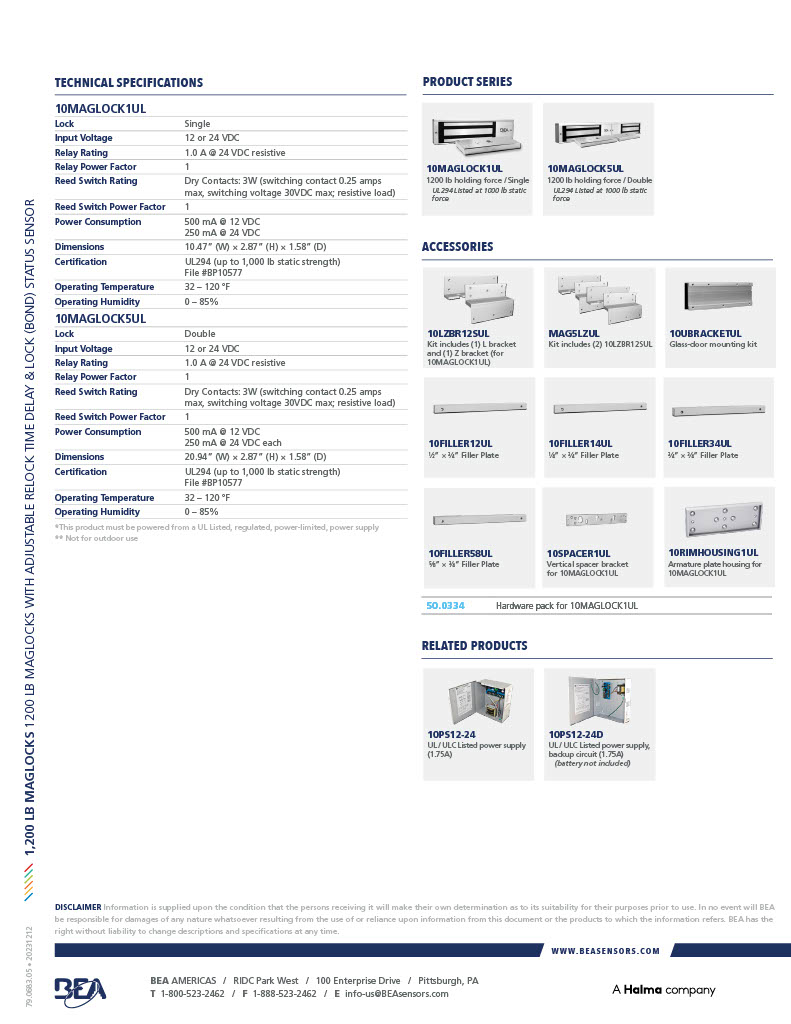

1-page2-EN-MAGLOCKS
10MAGLOCK1UL..
1-page1-EN-MAGLOCKS
1-page2-EN-MAGLOCKS
naxt
prev

Product Details

BEA 10MAGLOCK1UL Single Electromagnetic Surface Mount Lock, UL / ULC Listed, LED Status, Lock Status Sensor (NO or NC Outputs), 0 to 90 S Hold Open Timer (Relock), (1) Bond Status Relay, 12 / 24 VDC (UL Listed Power Supply Required), 1200 Lb.

DESCRIPTION BEA's UL LISTED MAGLOCKS provide a standards compliant locking solution for retail, healthcare, banking and other high security facilities that require UL Listed security products. maglocks can be used on hollow metal, wood, aluminum, glass and composite door materials.

The UL LISTED MAGLOCKS are available in surface mount single or double door configurations, with holding force of 600 or 1,200 lbs. These locks include adjustable zero to 90 second relock time delay and a lock status sensor with visible LED.

Customizable: Adjustable zero to 90 second relock time delay.

Enhanced Reliability: Lock status sensor with visible LED offers either normally open (NO) or normally closed (NC) output configurations.

UL Listed: Input voltage of 12 / 24 VDC, must be used with UL Listed power supply.

Mounting Accessories: Variety of mounting hardware available.

Convenient Packages Available: Available in access control packages with request-to-exit sensor, logic module, actuator, power supply and maglock. TECHNICAL SPECIFICATIONS:

10MAGLOCK1UL

Door Configuration:Single, surface mount.

Holding Force:1200 lb.

Input Voltage:12 / 24 VDC (UL Listed power supply required).

Power Consumption:   505 mA @ 12 VDC.   260 mA @ 24 VDC.

Dimensions:10.47" (W) x 2.87" (H) x 1.58" (D).

Material:Anodized Aluminum housing.

Relock Time Delay:0 - 90 s.

Sensor:Lock Status Sensor (NO or NC outputs).

Output Relay:Up to 1 A @ 24 VDC.

BEA MAGLOCK, BEA MAGLOCKS, BEA 10MAGLOCK1UL, 10MAGLOCK1UL, 10MAGLOCK1UL  BEA, BEA10MAGLOCK1UL, 10MAGLOCK1UL, 10MAGLOCK1UL BEA, BEA 10MAGLOCK1UL, 10MAGLOCK1UL, MAGLOCK1UL  BEA, BEAMAGLOCK1UL, MAGLOCK1UL, MAGLOCK1UL BEA, BEA 10MAGLOCK1UL, 10MAGLOCK1UL, 10MAGLOCK1UL  BEA, BEA10MAGLOCK1UL, 10MAGLOCK1UL,  10MAGLOCK1UL BEA, BEA 10MAGLOCK1UL, 10MAGLOCK1UL, MAGLOCK1UL BEA, MAGLOCK1ULBEA, MAGLOCK1UL,  BEA MAGLOCK1UL,

BEA 10MAGLOCK1UL Single Electromagnetic Surface Mount Lock - LED Status - Lock Status Sensor - 1200 lb / Single

SKU: 10MAGLOCK1UL

In Stock
icon Chat
Picture for manufacturer BEA

$172.41

$413.48

You saved $241.07

About this item

UL LISTED MAGLOCKS MAGLOCKS WITH ADJUSTABLE RELOCK TIME DELAY & LOCK STATUS SENSOR

Resources

BEA 10MAGLOCK1UL Single Electromagnetic Surface Mount Lock, UL / ULC Listed, LED Status, Lock Status Sensor (NO or NC Outputs), 0 to 90 S Hold Open Timer (Relock), (1) Bond Status Relay, 12 / 24 VDC (UL Listed Power Supply Required), 1200 Lb.

DESCRIPTION BEA's UL LISTED MAGLOCKS provide a standards compliant locking solution for retail, healthcare, banking and other high security facilities that require UL Listed security products. maglocks can be used on hollow metal, wood, aluminum, glass and composite door materials.

The UL LISTED MAGLOCKS are available in surface mount single or double door configurations, with holding force of 600 or 1,200 lbs. These locks include adjustable zero to 90 second relock time delay and a lock status sensor with visible LED.

Customizable: Adjustable zero to 90 second relock time delay.

Enhanced Reliability: Lock status sensor with visible LED offers either normally open (NO) or normally closed (NC) output configurations.

UL Listed: Input voltage of 12 / 24 VDC, must be used with UL Listed power supply.

Mounting Accessories: Variety of mounting hardware available.

Convenient Packages Available: Available in access control packages with request-to-exit sensor, logic module, actuator, power supply and maglock. TECHNICAL SPECIFICATIONS:

10MAGLOCK1UL

Door Configuration:Single, surface mount.

Holding Force:1200 lb.

Input Voltage:12 / 24 VDC (UL Listed power supply required).

Power Consumption:   505 mA @ 12 VDC.   260 mA @ 24 VDC.

Dimensions:10.47" (W) x 2.87" (H) x 1.58" (D).

Material:Anodized Aluminum housing.

Relock Time Delay:0 - 90 s.

Sensor:Lock Status Sensor (NO or NC outputs).

Output Relay:Up to 1 A @ 24 VDC.
