BEA 10MAGDE1 UL Listed Delayed Egress Electromagnetic Lock 1200 lb. UL Listed Delayed Egress Maglock for Single Out-Swinging Doors

BEA UL Listed Delayed Egress Electromagnetic Lock 1200 lb. UL Listed Delayed Egress Maglock for Single Out-Swinging Doors

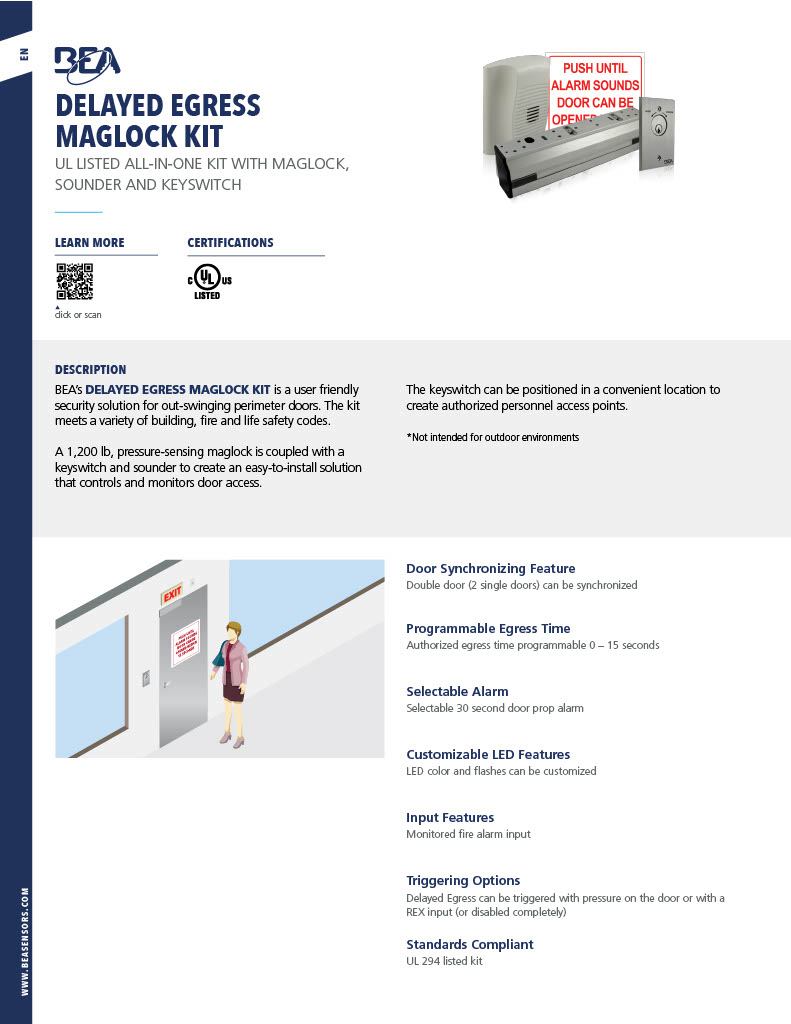

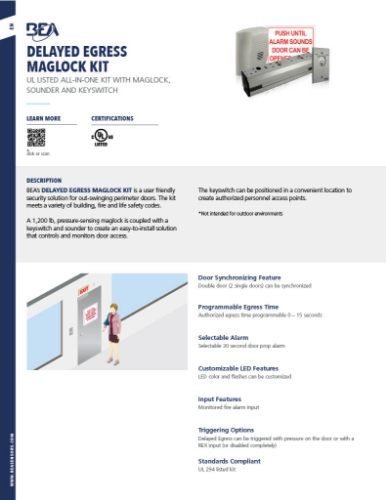

DESCRIPTION BEA's DELAYED EGRESS MAGLOCK KIT is a user friendly security solution for out-swinging perimeter doors. The kit meets a variety of building, fire and life safety codes.

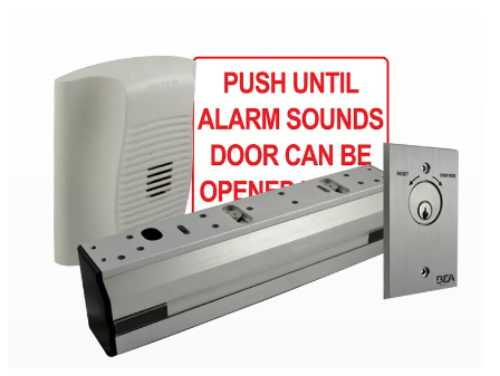

A 1,200 lb, pressure-sensing maglock is coupled with a keyswitch and sounder to create an easy-to-install solution that controls and monitors door access.

The keyswitch can be positioned in a convenient location to create authorized personnel access points.

Features:

Programmable egress time: Authorized egress time programmable 0 - 15 seconds.

Standards driven: UL 294 listed kit.

Customizable LED features: LED color and flashes can be customized.

Triggering options: Delayed Egress can be triggered with pressure on the door or with a REX input (or disabled completely).

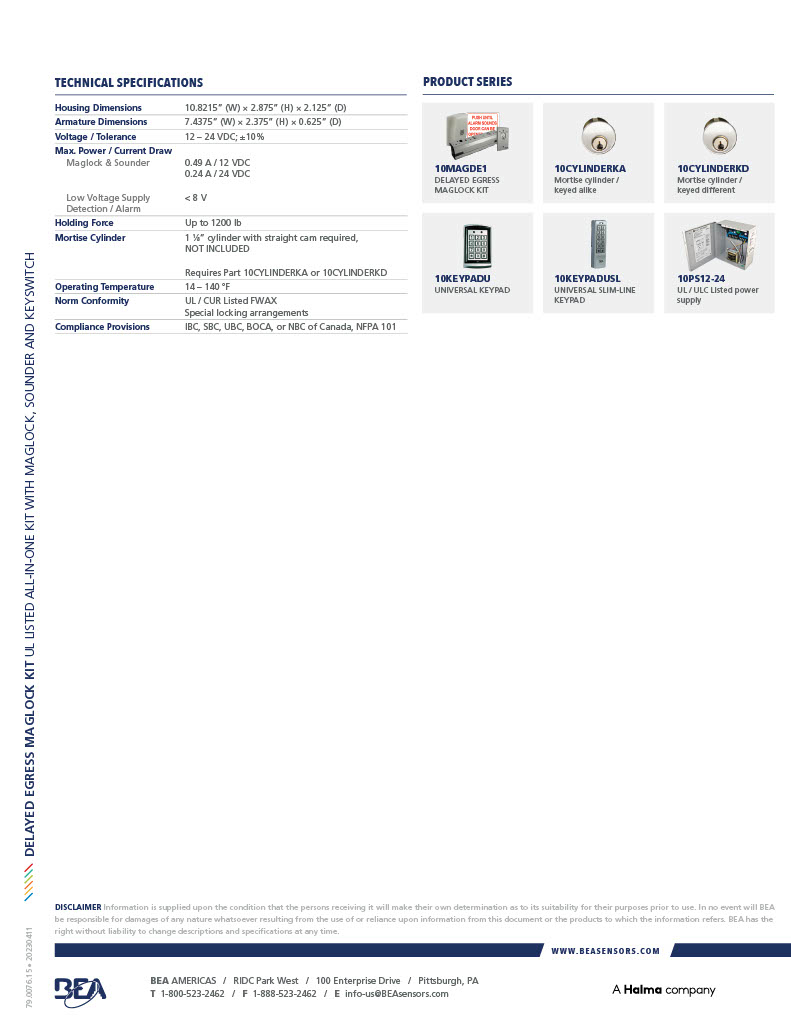

TECHNICAL SPECIFICATIONS:

Housing Dimensions:10.8215" (W) x 2.875" (H) x 2.125" (D).

Armature Dimensions:7.4375" (W) x 2.375" (H) x 0.625" (D).

Voltage / Tolerance:12 " 24 VDC; "10%.

Max. Power / Current Draw:  Maglock & Sounder:   0.49 A / 12 VDC.   0.24 A / 24 VDC.  Low Voltage Supply: < 8 V.  Detection / Alarm

Holding Force:Up to 1200 lb.

Mortise Cylinder:1 1⁄8" cylinder with straight cam required, NOT INCLUDED. Requires Part 10CYLINDERKA or 10CYLINDERKD.

Operating Temperature:14 - 140 F.

Norm Conformity:UL / CUR Listed FWAX.  Special locking arrangements.

Compliance Provisions:IBC, SBC, UBC, BOCA, or NBC of Canada, NFPA 101.
