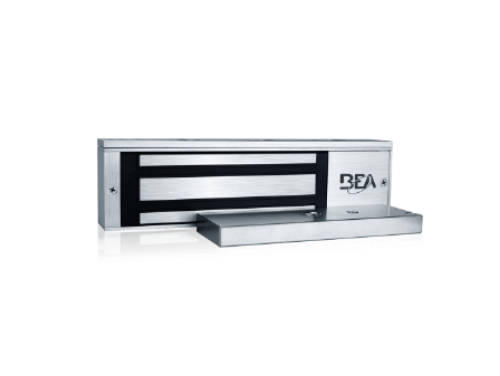

BEA 10MAGLOCK1ULDS Single Electromagnetic Surface Mount Lock - Lock Status Sensor / Door Status Sensor - LED Status - 1200 lb / Single

10MAGLOCK1ULDS....

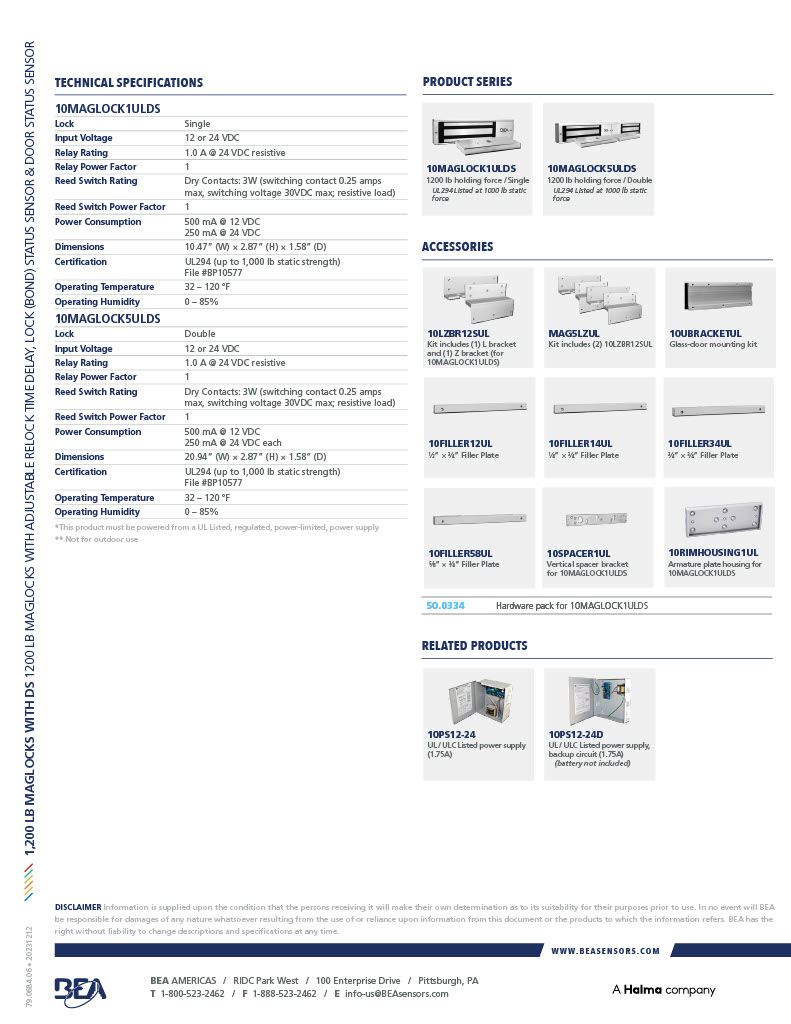

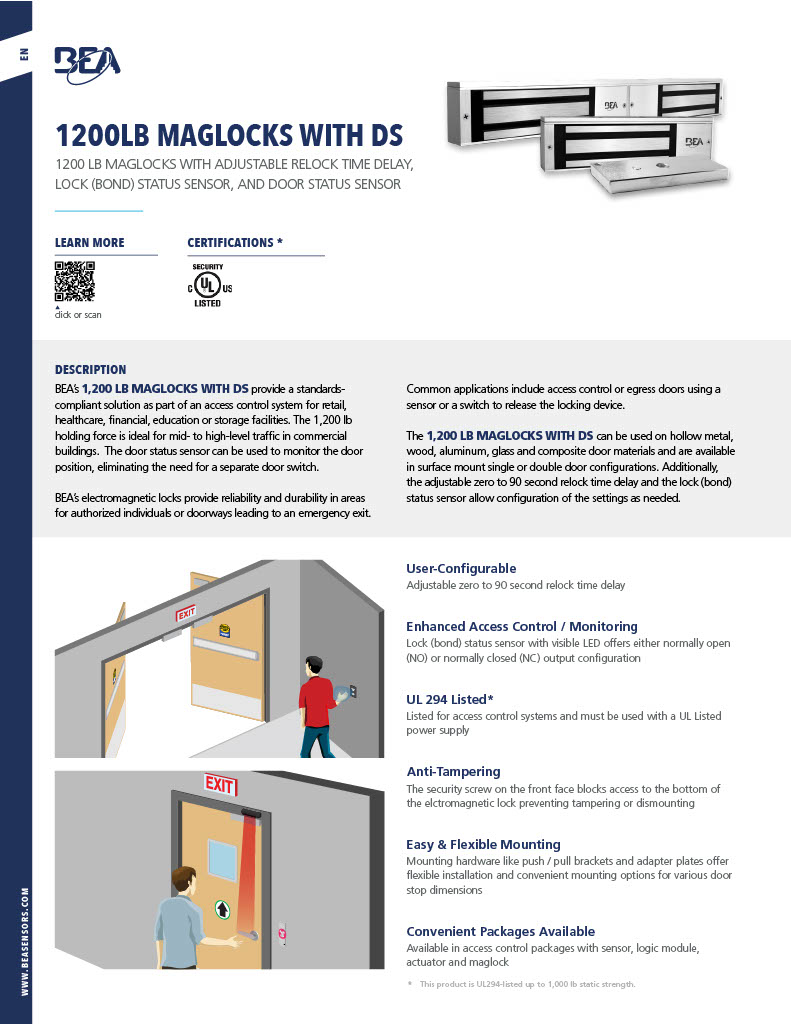

1-Page1-EN-MAGLOCK-DS
1-Page2-EN-MAGLOCK-DS
10MAGLOCK1ULDS....
1-Page1-EN-MAGLOCK-DS
1-Page2-EN-MAGLOCK-DS
naxt
prev

Product Details

BEA 10MAGLOCK1ULDS Single Electromagnetic Surface Mount Lock, UL / ULC Listed, LED Status, Lock Status Sensor / Door Status Sensor, 0 to 90 S Hold Open Timer (Relock), 12 / 24 VDC (UL Listed Power Supply Required), 1200 Lb.

DESCRIPTION: BEA's UL LISTED MAGLOCK WITH DS provides a standards compliant locking solution for retail, healthcare, banking and other high security facilities that require a UL listed security product. Maglocks can be used on hollow metal, wood, aluminum, glass and composite door materials.

The UL LISTED MAGLOCK WITH DS is available in surface mount, single or double door configurations, with a holding force of 600 or 1,200 lbs. These locks include an adjustable zero to 90 second relock time delay, lock status sensor with visible LED and door status sensor.

Customizable: Adjustable zero to 90 second relock time delay.

Enhanced Reliability: Lock status sensor with visible LED offers either normally open (NO) or normally closed (NC) output configurations.

UL Listed: Input voltage of 12 / 24 VDC, must be used with UL Listed power supply.

Mounting Accessories: Variety of mounting hardware available. TECHNICAL SPECIFICATIONS:

Door Configuration:Single, surface mount.

Holding Force: 1200 lb.

Input Voltage:12 / 24 VDC (UL Listed power supply required).

Power Consumption:  505 mA @ 12 VDC  260 mA @ 24 VDC

Dimensions:10.47" (W) x 2.87" (H) x 1.58" (D)

Material:Anodized Aluminum housing.

Relock Time Delay:0 - 90 s.

Sensor:Lock Status Sensor (NO or NC outputs).

Output Relay:Up to 1 A @ 24 VDC.

BEA MAGLOCK, BEA MAGLOCKS, BEA 10MAGLOCK1ULDS, 10MAGLOCK1ULDS, 10MAGLOCK1ULDS  BEA, BEA10MAGLOCK1ULDS, 10MAGLOCK1ULDS, 10MAGLOCK1ULDS BEA, BEA 10MAGLOCK1ULDS, 10MAGLOCK1ULDS, MAGLOCK1ULDS BEA, BEAMAGLOCK1ULDS, MAGLOCK1ULDS, MAGLOCK1ULDS BEA, BEA 10MAGLOCK1ULDS, 10MAGLOCK1ULDS, 10MAGLOCK1ULDS  BEA, BEA10MAGLOCK1ULDS, 10MAGLOCK1ULDS, 10MAGLOCK1ULDS BEA, BEA 10MAGLOCK1ULDS, 10MAGLOCK1ULDS, MAGLOCK1ULDS BEA, MAGLOCK1ULDSBEA, MAGLOCK1ULDS, BEA MAGLOCK1ULDS,
