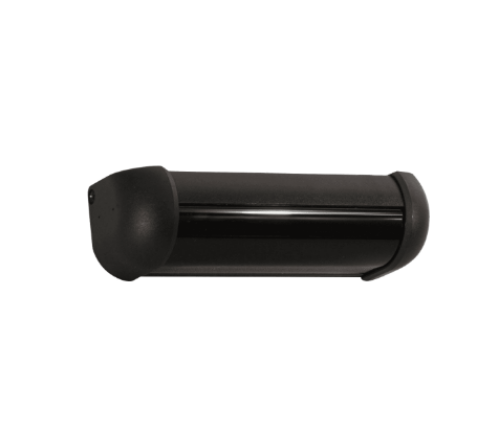

BEA 10R2E-100 Active Infrared Request-To-Exit Detector
The 10R2E-100 Is a UL/cUL Listed, active infrared request-to-exit detector specifically designed for access control applications
? Mounts on or above the door frame with pattern placed in front of the door handle
? Rejects false detection for parallel traffic or objects slid under the door
? Optional alarm can be sounded when door is open or Maglock is activated
? 20 to 48 Inch detection range with three inputs
? UL/cUL Listed
? Power: 12 to 24 V AC/DC
? UL 294 Listed
? Adjustable tilt angle from 0? to 10?
? Low profile sensor mounts on or above the door frame
? Multiple re-locking modes for timed or door position conditions
? Relay output consists of two Form “C" contacts for NO/ NC wiring
? Adjustable, built-in audible alarm notes activation
