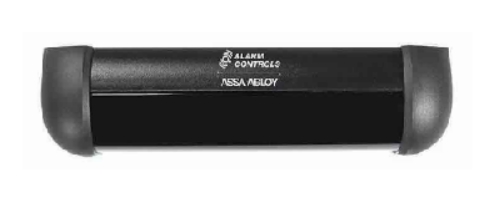

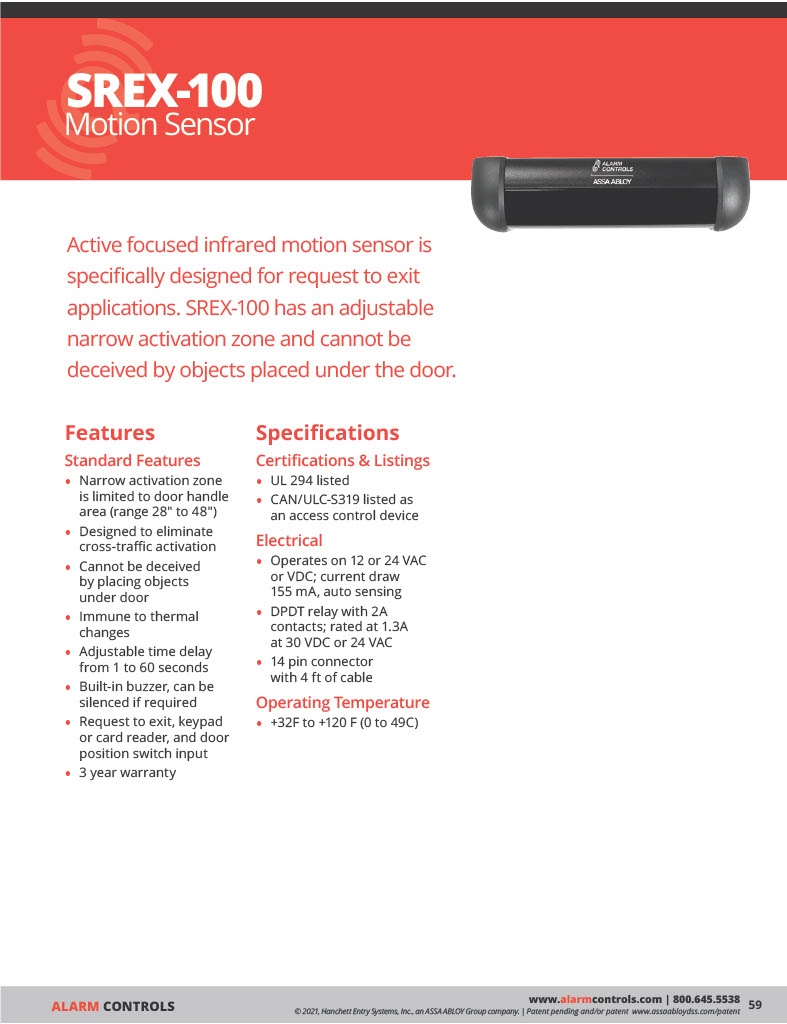

Alarm Controls SREX-100 IR Request to Exit Sensor

Alarm Controls SREX-100 IR Request to Exit Sensor

Features:

Narrow activation zone is limited to door handle area (range 28" to 48").

Designed to eliminate cross-traffic activation.

Cannot be deceived by placing objects under door . Immune to thermal changes.

Adjustable time delay from 1 to 60 seconds.

Built-in buzzer, can be silenced if required.

Request to exit, keypad or card reader, and door position switch input.

3 year warranty.

Options:

CP1-MREX for hazardous locations

Certifications & Listings: UL 294 listed. CAN/ULC-S319 listed as an access control device.

Operates on 12 or 24 VAC or VDC; current draw 155 mA, auto sensing.

DPDT relay with 2A contacts; rated at 1.3A at 30 VDC or 24 VAC.

14 pin connector with 4 ft of cable.

Operating Temperature: +32F to +120 F (0 to 49C).

Alarm Controls SREX-100, SREX-100 Alarm Controls,  SREX-100
