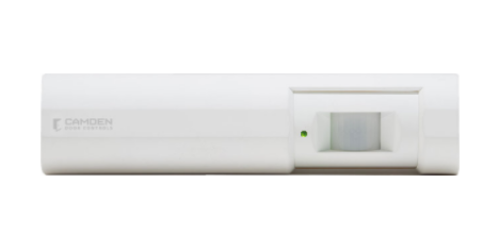

**Camden CM-RQE70A Request to Exit Detector, 12/24 VDC, Includes Wiring Terminal, (2) DPDT Relays, Fail Safe/Fail Secure Selectable, Multi Function, White Finish
FEATURES**
- COMPACT SIZE, DESIGNED TO MOUNT ON DOOR FRAMES.
- EASY TO USE ON-BOARD PROGRAMMING BUTTONS. NO DIP SWITCHES.
- (4) FACTORY DEFAULT OPERATING MODES, WITH THE ABILITY TO CUSTOMIZE MODE ATTRIBUTES.
- PLUG-IN WIRING HARNESS, MAKES INSTALLATION EASY AND FAST.
- SELECTABLE FAIL SAFE/FAIL SECURE.
- (2) FORM C CONTACTS.
- MOMENTARY AND LATCHING RELAY MODES.
- SECONDARY ACTIVATION DEVICE INPUT.
- CARD/KEYPAD INPUT.
- DOOR POSITION SWITCH INPUT.
- REQUEST TO EXIT INPUT.
- BUILT-IN SOUNDER (ADJUSTABLE).
- TAMPER SWITCH.
CAMDEN CM-RQE70 SERIES REX DETECTORS OFFER 4 FACTORY DEFAULT OPERATING MODES, SELECTED BY PROGRAMMING BUTTONS ON THE CIRCUIT BOARD.
MODE 1:LATCHED REX SENSOR: RELAY ACTIVATED, HELD BY TIMER.
MODE 2:DOOR PROP ALARM: DETECTOR WILL ALARM IF HELD OPEN.
MODE 3: ACCESS CONTROL: DETECTOR CONTROLLED BY SYSTEM OR SECURE DEVICE.
MODE 4:CUSTOM SETTINGS: INSTALLER CAN PROGRAM ALARM PARAMETERS.

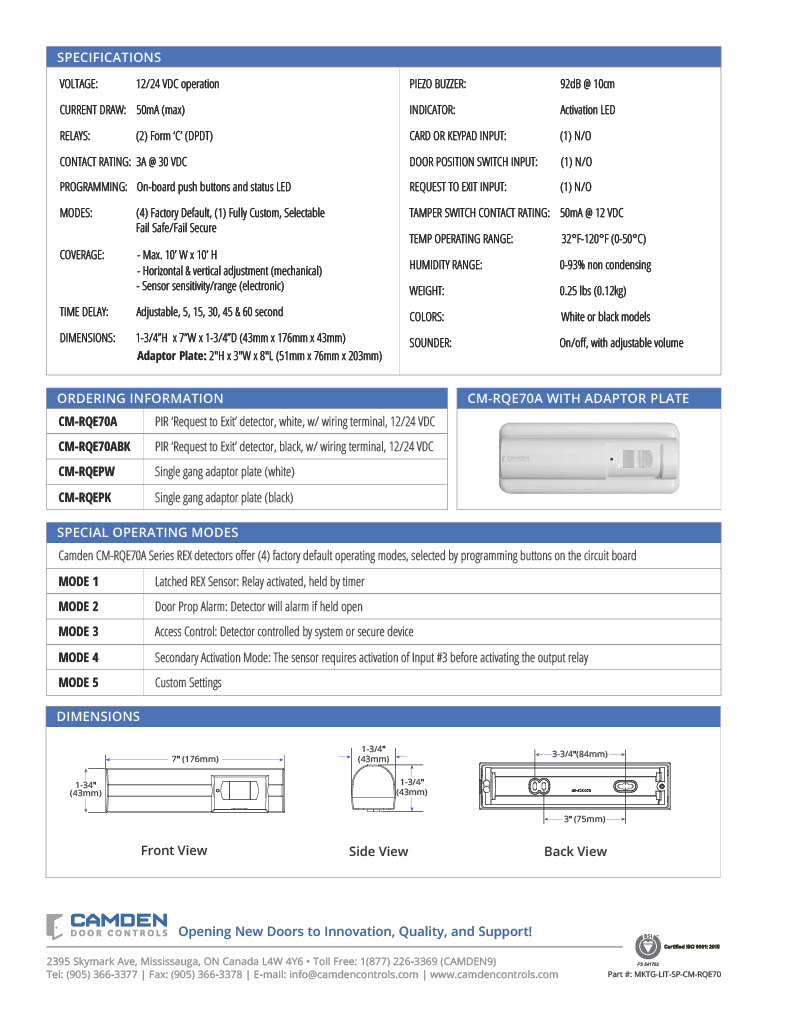

SPECIFICATIONS
VOLTAGE:12 /24V DC OPERATION.
CURRENT DRAW:50MA (MAX).
RELAYS:(2) FORM 'C' (DPDT).
CONTACT RATING:3A @ 30VDC.
PROGRAMMING:ON-BOARD PUSH BUTTONS AND STATUS LED.
MODES:(4) FACTORY DEFAULT, (1) FULLY CUSTOM, SELECTABLE FAIL
SAFE/FAIL SECURE.
COVERAGE:
- MAX. 10' W X 10' H.
- HORIZONTAL & VERTICAL ADJUSTMENT (MECHANICAL).
- SENSOR SENSITIVITY/RANGE (ELECTRONIC).
TIME DELAY:ADJUSTABLE, 5, 15, 30, 45 & 60 SECOND.
SOUNDER:ON/OFF, WITH ADJUSTABLE VOLUME.
PIEZO BUZZER:92DB.@ 10CM.
INDICATOR:ACTIVATION LED.
CARD OR KEYPAD INPUT:(1) N/O.
DOOR POSITION*SWITCH INPUT:(1) N/O.
*REQUEST TO EXIT INPUT:(1) N/O.
TAMPER SWITCH CONTACT RATING:50MA @ 12VDC.
TEMP OPERATING RANGE:32 F-120 F (0-50 C).
HUMIDITY RANGE:0- 93% NON-CONDENSING
DIMENSIONS:1 3/4"H X 7"W X 1 3/4"D (43mm x 176mm x 43mm).
WEIGHT:0.25 LBS. (0.12KG.).
COLORS:WHITE OR BLACK MODELS.

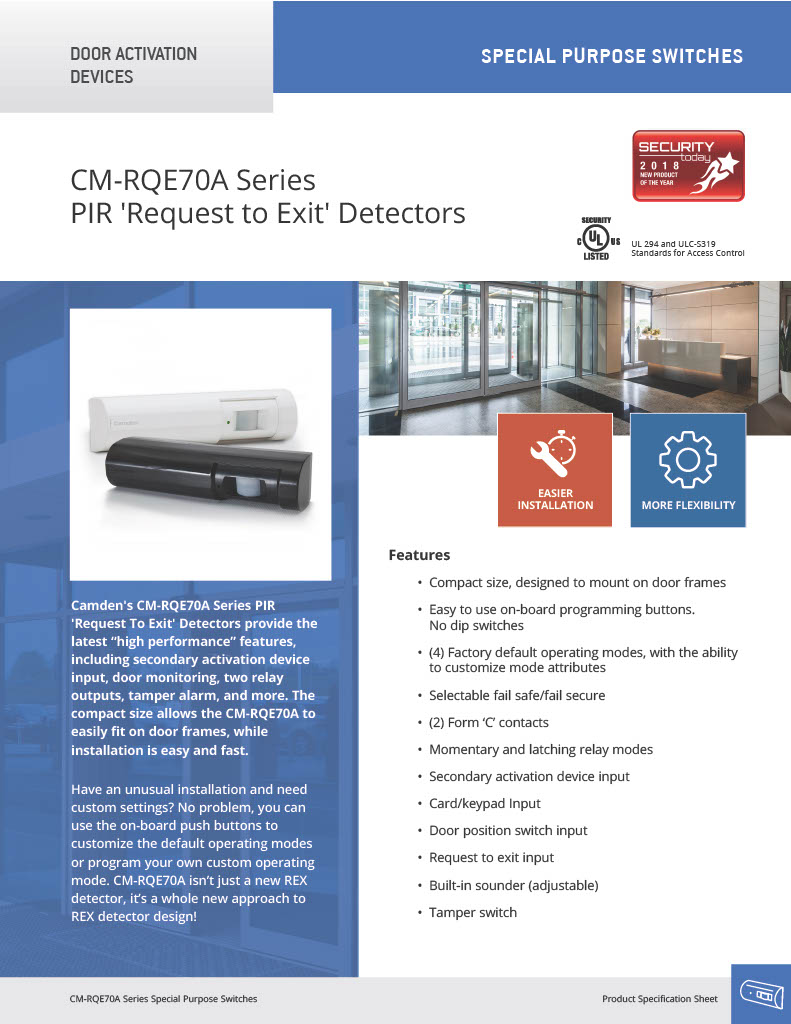

DESCRIPTION
Camden Door Controls, CM-RQE70 PIR 'REQUEST TO EXIT' DETECTORS provide the latest word in design, with a complete list of high performance features, including secondary activation device input, door monitoring, two relay outputs, and tamper alarm.
Many new programming, installation, and set-up features that have never previously been available. Camden started by making the CM-RQE70 smaller, so it can easily fit on door frames, and then made installing the detector faster and easier.
CM-RQE70 comes with 4 factory default operating modes that can be selected with simple push buttons on the circuit board. Have an unusual installation and need custom settings No problem, you can use the on-board push buttons to customize the default operating modes or program your own custom operating mode.
Camden also makes detector mounting and wiring easier with a simple plug-in wiring harness. CM-RQE70 isn't just a new REX detector, it's a whole new approach to REX detector design!
UL 294 ACCESS CONTROL PERFORMANCE LEVELS
1) ACCESS CONTROLS, DESTRUCTIVE ATTACK - LEVEL I (NO ATTACK)
2) LINE SECURITY - LEVEL I (NO LINE SECURITY)
3) ENDURANCE - LEVEL IV (100,000 CYCLES)
4) STANDBY POWER - LEVEL I (NO STAND BY POWER)
PARCHITECTS /ENGINEERS SPECIFICATIONS
IR Request To Exit (REX) detectors shall be UL and ULC listed Camden Door Control model CM-RQE70, providing horizontal and vertical sensor adjustment, adjustable range sensitivity, (2) Form 'C' relay outputs, inputs for Card or keypad, door position, request to exit switch and shall be powered 12/24V DC. The REX detector shall not have a height exceeding 1 3/4" (43 mm), so that it may be mounted on the door frame, if required. The REX detector shall have (4) factory default operating modes, including door prop alarm and secondary device activation, with field selection via on-board push buttons.
