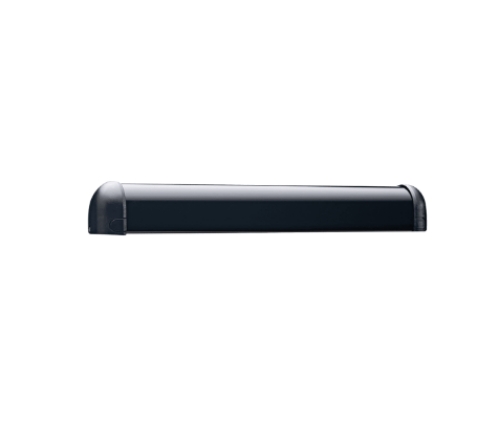

BEA 10SSTII Active Infrared With Background Suppression, 1 Primary & 1 Secondary, 34.5" end cap to end cap, 12 to 24 V AC/DC

BEA 10SSTII Active Infrared With Background Suppression, 1 Primary & 1 Secondary, 34.5" end cap to end cap, 12 to 24 V AC/DCModel: 10SSTII

1 Primary 1 Secondary 34.5 in (end cap to end cap).

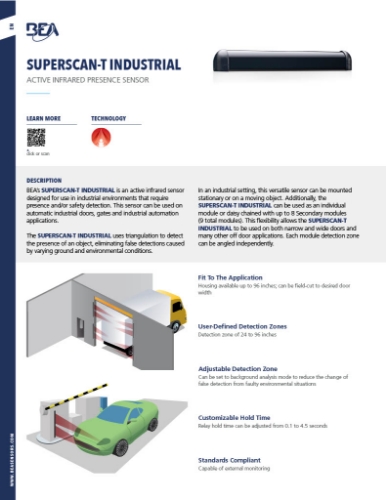

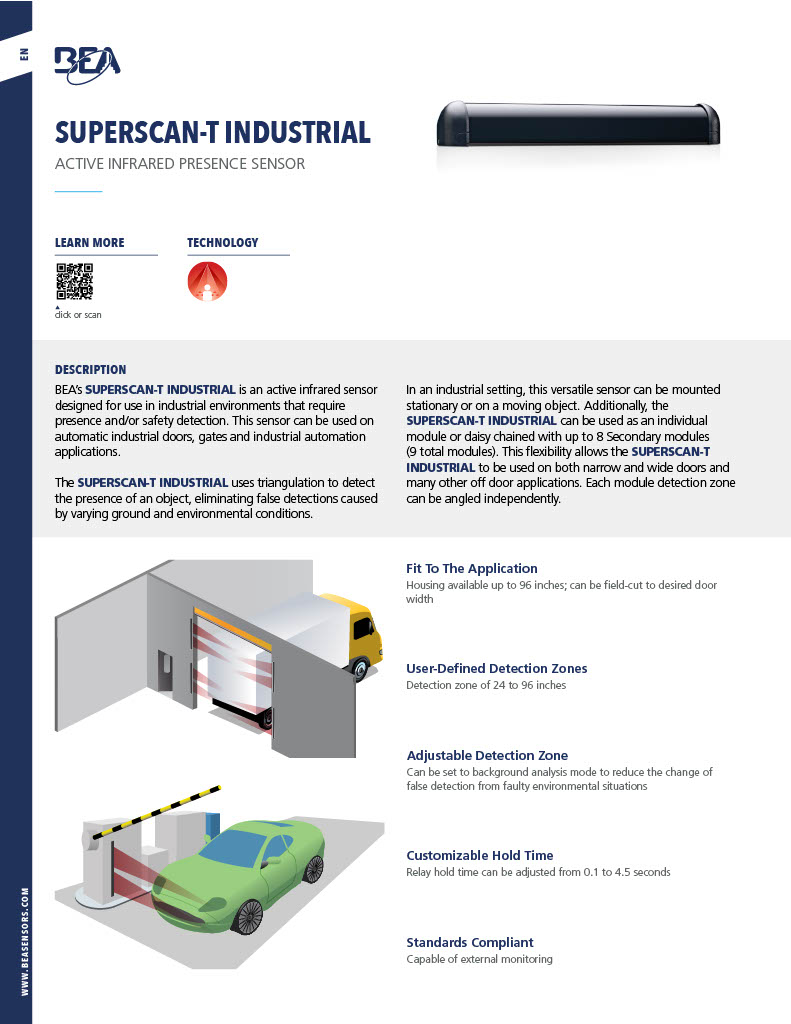

Description:

BEA's SUPERSCAN-T INDUSTRIAL is an active infrared sensor designed for use in industrial environments that require presence and/or safety detection. This sensor can be used on automatic industrial doors, gates and industrial automation applications.

The SUPERSCAN-T INDUSTRIAL uses triangulation to detect the presence of an object, eliminating false detections caused by varying ground and environmental conditions.

In an industrial setting, this versatile sensor can be mounted stationary or on a moving object. Additionally, the SUPERSCAN-T INDUSTRIAL can be used as an individual module or daisy chained with up to 8 secondary modules (9 total modules). This flexibility allows the SUPERSCAN-T INDUSTRIAL to be used on both narrow and wide doors and many other off door applications. Each module detection zone can be angled independently.

Features:

Fit to the application: Housing available up to 96 inches; can be field-cut to desired door width.

User-defined detection zones: Detection zone of 24 to 96 inches.

Adjustable detection zone: Can be set to background analysis mode to reduce the change of false detection from faulty environmental situations.

Standards compliant: Capable of external monitoring.

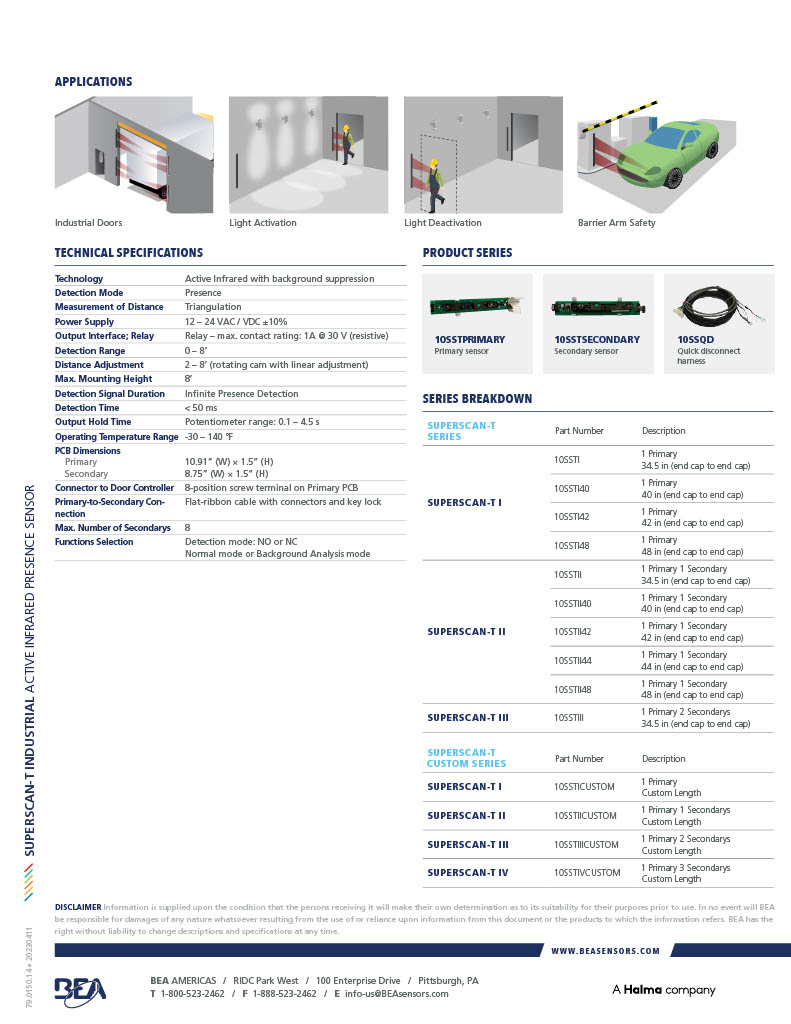

Specifications:

Technology:Active Infrared with background suppression.

Detection Mode:Presence.

Measurement of Distance:Triangulation.

Power Supply:12 - 24 VAC / VDC +10%.

Output Interface; Relay:  Relay - max. contact rating: 1A @ 30 V (resistive).

Detection Range:0 - 8'.

Distance Adjustment:2 - 8' (rotating cam with linear adjustment).

Max. Mounting Height:8'.

Detection Signal Duration:Infinite Presence Detection.

Detection Time:< 50 ms.

Output Hold Time:Potentiometer range: 0.1 - 4.5 s.

Operating Temperature Range:-30 - 140 F.

PCB Dimensions:  Primary: 10.91" (W) x 1.5" (H).  Secondary: 8.75" (W) x 1.5" (H).

Connector to Door Controller:8-position screw terminal on Primary PCB.

Primary-to-Secondary Connection:Flat-ribbon cable with connectors and key lock.

Max. Number of Secondarys:8.

Functions Selection:   Detection mode: NO or NC.   Normal mode or Background Analysis mode.
