About this item

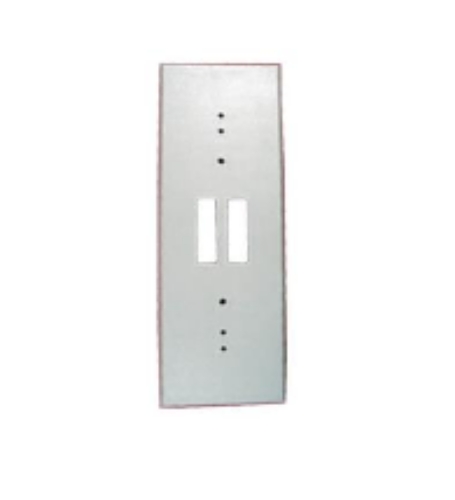

The Bosch TP160 is a light gray trim plate used when mounting a Bosch DS150 or DS160 Series request-to-exit (REX) PIR detector over a standard single-gang electrical box. It covers the single-gang box opening and creates a clean, finished appearance on the wall or door frame when the detector is surface-mounted without a recessed box. American Locksets stocks the TP160 as an authorized Bosch Security dealer with same-day shipping and free shipping on orders over $300.
Also referenced in the field and in distributor catalogs as DS-TP160 and BOS-TP160. The black version for DS161 applications is the TP161.
Bosch TP160 Trim Plate Specifications
-
SKU: TP160
-
Color: Light Gray (matches DS150 and DS160 light gray enclosure)
-
Dimensions: 3 inches x 8.25 inches x 0.25 inches (76mm x 210mm x 6.35mm)
-
Material: Durable plastic
-
Mounting: Over standard single-gang electrical box
-
Compatible Detectors: Bosch DS150 Series and DS160 Series request-to-exit PIR detectors
What the TP160 Is For
When a Bosch DS150i or DS160 PIR detector is wall-mounted over a single-gang box used for the wiring connection, the box opening remains exposed around the base of the detector unless a trim plate is used. The TP160 covers that gap and provides a professional, finished installation that hides the mounting hardware and the box edge. It is not required when the detector is surface-mounted on a flat wall without a single-gang box, but on installations where the wiring was roughed into a standard electrical box, the TP160 is the correct finishing accessory.
The TP160 matches the light gray color of the DS150 and DS160 enclosures so the trim plate and detector body present as a single unified unit on the wall. It installs as part of the detector mounting process and does not require separate fasteners beyond those used in the detector mount itself.
DS150 and DS160 Series: What These Detectors Do
The Bosch DS150i and DS160 are passive infrared (PIR) request-to-exit detectors, UL listed as access control devices under UL 294. They are designed for REX applications where a person approaching a controlled door from the secured side triggers a motion detection signal that commands the access control system to release the electric lock or electric strike without requiring a credential from the inside. The PIR coverage area of the DS150i is 8 feet x 10 feet (2.4m x 3m). Both series are intended for interior installation only.
The DS160 adds capabilities beyond the DS150i, including door monitor input, a built-in sounder for door-propped alerts, Sequential Logic Input (SLI) for high-security REX applications where a second device must be triggered before the exit relay fires, and an adjustable latch time up to 64 seconds. The DS150i is suited for standard interior doors in low to medium security applications. The DS160 is specified for higher-security installations, exterior access doors, and doors with gaps or weather stripping where unauthorized remote triggering of the REX is a concern.
The TP160 trim plate is a required accessory whenever either detector is wall-mounted over a single-gang box on any of these installations.
TP160 vs. TP161
The TP160 is light gray, matching the DS150 and DS160 light gray detector enclosures. The TP161 is black, matching the DS151i and DS161 black enclosures. Confirm the enclosure color of your installed detector before ordering. Mixing a gray trim plate with a black detector enclosure produces a visible mismatch at the wall.
Browse all Bosch Sensors and the complete Sensors and Detectors catalog at American Locksets.
