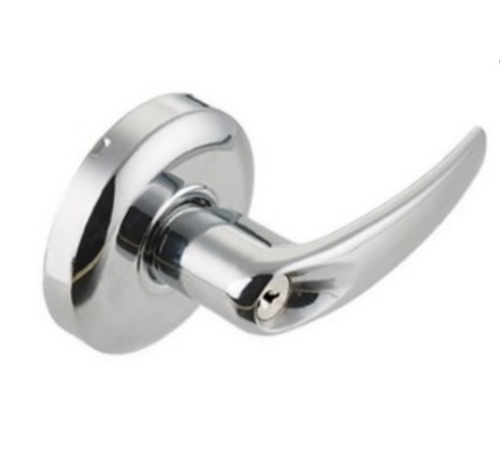

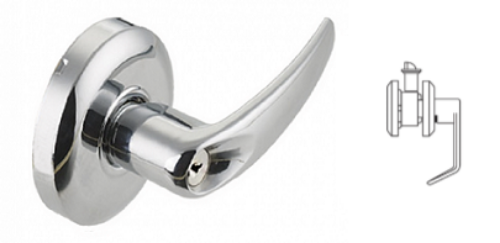

Cal-Royal AG50 Exit Lock

Cal-Royal AG50 Exit Lock - ANSI: F89

Blank plate outside. Inside lever always unlocked.

ANSI:Grade 2 Lock

Door Range:- 1-3/8" to 1-3/4" thickness doors.

Backset:- 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front- 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike:ASA strike standard, "T" and full lip strike available on request.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed.

Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

Tactile & Lead Lining - Available upon request.

Model:Cal-Royal AG50,Cal-Royal AG50US26D,Cal-Royal AG50US1,Cal-Royal AG50US,3Cal-Royal AG50US4,Cal-Royal AG50US10,Cal-Royal AG50US10BE,Cal-Royal AG50US26,

ANSI Standards - Meets or exceeds requirements of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim - Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
