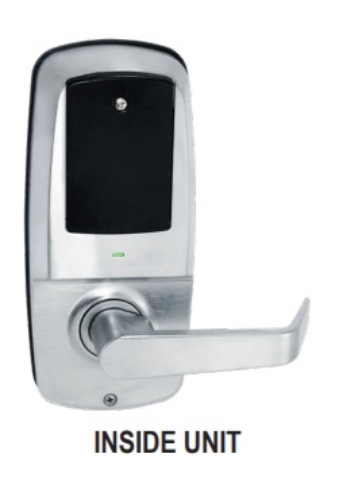

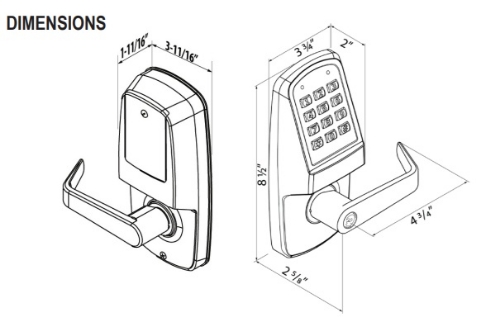

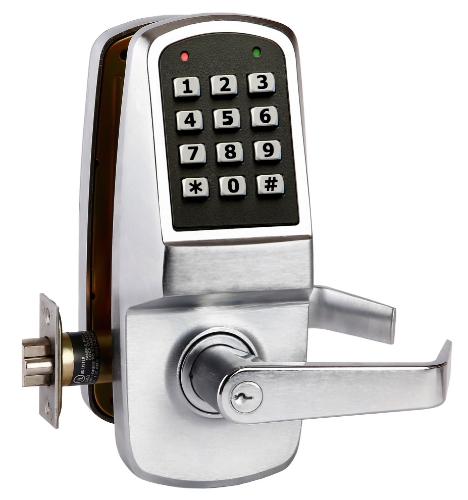

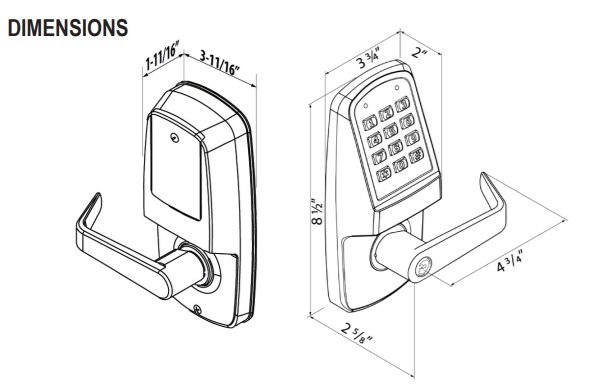

Cal-Royal CR8000 Heavy Duty Digital Keypad Door Lock

Cal-Royal CR8000 Heavy Duty Digital Keypad Door Lock

Function: Latch bolt operated by lever from either side, except outside would need to enter a pre-programmed code on the keypad in order to retract the latch upon turning lever. Key overrides the use of the keypad.

Door Ranges: 1 3/8" to 1 3/4" thickness.

Backset: 2 3/4” standard, 2 3/8”, 3 3/4” or 5” optional backset.

Latch Faceplate: Standard 2 1/4" x 1 1/8" for 2 3/4" backset. Optional 2 1/4" x 1 1/8" for 2 3/8" backset.

Strikes: ASA strike standard, "T" and full lip strike available on request.

Cylinder: 6-pin solid brass “Schlage C” keyway standard with two brass keys per lock.

Ansi Standards: Meets or exceeds BHMA / ANSI A 156.2 Series 4000 Grade 1 requirements.

Power Supply: 4 AA Batteries (comes standard in packing)

Clutch: Clutch technology allows turning of lever without retracting latch, thus prolonging the life of the lock by reducing stress on the spindle and other parts.

Weather Resistant: All models are weather resistant for temperature ranges of -30° F ~ 150°F (-35°C ~ 66°C).

Keypad: 12 programmable buttons for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service codes.

Model:Cal-Royal CR8000, CR8000US26D, CR8000US10B

FEATURES

Master PIN Code - Use for programming the lock and entering Manager and User PIN codes. Can also be use to open the lock and reset to factory settings.

Manager PIN Code - Use to open the door with lock out mode. Also functions like a User PIN code. This feature can also program 3 one-time user codes.

User PIN Code - This feature only opens the lock by entering the code on the touch pad. It won’t be able to program or change settings. This lock can accommodate up to 1000, 3 to 6 digits combined RFID and
User PIN codes.

One-Time User PIN Code - Can only be used once. This lock can store up to 3 one-time User PIN code simultaneously.

Passage Mode - Enabling passage mode allows continuous entry for non-restricted traffic. Passage mode can either be enabled or disabled by the Master Pin code. When in passage mode, the unlocked padlock icon will appear on the screen.

Beep & LED Indicators - This indicators can either be programmed for different settings. This feature is useful in making sure that every keypress was successfully entered.

Lock-Out Mode - This feature can either be enabled by the Master or Manager PIN Codes. When enabled, it restricts all User PIN codes access except Master and Manager PIN codes.

Keypad Anti-Tamper Lock Out - This function will auto shut off the lock if an invalid code is entered 5 times in succession to prevent
tampering.

Non-Handed - The CR8000 can be installed for both left and right door opening.
