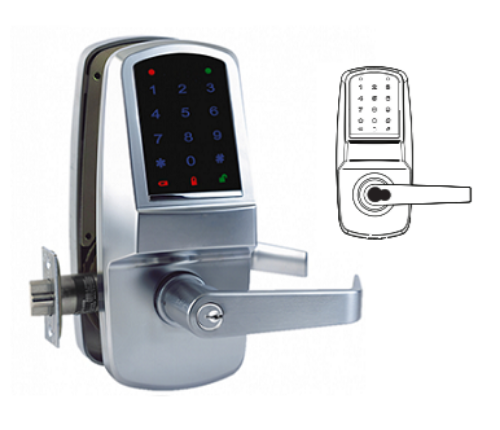

Cal-Royal ICCR6000 Digital Touch Screen Door Lock, With RFID Proximity Card Capability - Accepts SFIC Core

Cal-Royal ICCR6000*Heavy Duty Digital Touch Screen Door Lock, With RFID Proximity Card Capability*- Accepts Small-format Interchangeable Core (SFIC) (core not included)

Function:Latch bolt operated by lever from either side. Outside would need to enter pre-programmed code on the touch screen in order to retract the latch upon turning lever. Key overrides the use of the touch screen. Available with Small Format Interchangeable Core

Door Ranges:1 3/8" to 2" thickness.

Backset:2 3/4" standard or 2 3/8" optional backset

Latch Faceplate:Standard 2 1/4" x 1 1/8" for 2 3/4" backset. Optional 1" x 2 1/4" for 2 3/8" backset

Strikes:ASA strike standard, "T" and full lip strike available on request.

Ansi Standards:Meets or exceeds BHMA / ANSI A 156.2 Series 4000 Grade 1 requirements.

Clutch:Clutch technology allows turning of lever without retracting latch, thus prolonging the life of the lock by reducing stress on the spindle and other parts.

Proximity Card (Standard):Compatible with existing MIFARE infrastructures. Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 3/16".

Rfid Keyfob (Optional):Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 3/16". Interchangeable Core (IC): Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix "IC" before part number.

Weather Resistant:All models are weather resistant for temperature ranges of -30○F ~ 150○F (-35○C ~ 66○C).

Touch Screen:Responds to human touch enabling convenient entrance or access to programming menu. After operation has been completed, the lock reverts to sleep mode

Model:Cal-Royal CR6000, CR6000US26D, CR6000US10B

Master PIN Code- Use for programming the lock and entering Manager and User PIN codes. Can also be use to open the lock and reset to factory settings.

Manager PIN Code- Use to open the door with lock out mode. Also functions like a User PIN code. This feature can also program 3 one-time user codes.

User PIN Code- This feature only opens the lock by entering the code on the touch pad. It won't be able to program or change settings. This lock can accommodate up to 1000, 3 to 6 digits combined RFID and User PIN codes.   One-Time User PIN Code- Can only be used once. This lock can store up to 3 one-time User PIN code simultaneously.

Passage Mode- Enabling passage mode allows continuous entry for non-restricted traffic. Passage mode can either be enabled or disabled by the Master Pin code. When in passage mode, the unlocked padlock icon will appear on the screen.

Beep & LED Indicators- This indicators can either be programmed for different settings. This feature is useful in making sure that every keypress was successfully entered.

Lock-Out Mode- This feature can either be enabled by the Master or Manager PIN Codes. When enabled, it restricts all User PIN codes access except Master and Manager PIN codes.

SMART Card - Compatible with existing MIFARE infrastructures - Operates at 13.56 MHz in accordance with ISO14443A - Inductive distance up to 1 3/16?

Touch Screen Anti-Tamper Lock Out- This function will auto shut off the lock if an invalid code is entered 5 times in succession to prevent tampering.

Weather Resistant- CR6000 are manufactured making sure that internal electronic parts are protected form moisture, dust water and corrosion. All models are weather resistant for temperature ranges of -30○F ~ 150○F (-35○C ~ +66○C).

Wake-Up Button- Pressing this button activates the number pad. Enter the PIN code when while the number pad is illuminated. This button is also used to quit programming mode.
