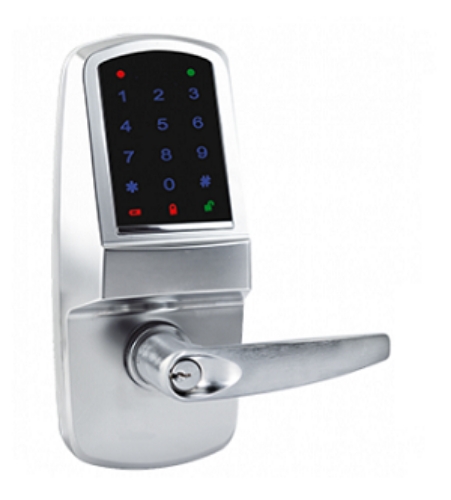

Cal-Royal AT6000 Digital Touch Screen Door Lock, With RFID Proximity Card Capability

Cal-Royal*AT6000*Heavy Duty Digital Touch Screen Door Lock, With RFID Proximity Card Capability

Function:Latch bolt operated by lever from either side. Outside would need to enter pre-programmed code on the touch screen in order to retract the latch upon turning lever. Key overrides the use of the touch screen.

Door Ranges:1 3/8" to 2" thickness.

Backset:2 3/4" standard or 2 3/8" optional backset

Latch Faceplate:Standard 2 1/4" x 1 1/8" for 2 3/4" backset. Optional 1" x 2 1/4" for 2 3/8" backset

Strikes:ASA strike standard, "T" and full lip strike available on request.

Ansi Standards:Meets or exceeds BHMA / ANSI A 156.2 Series 4000 Grade 1 requirements.

Clutch:Clutch technology allows turning of lever without retracting latch, thus prolonging the life of the lock by reducing stress on the spindle and other parts.

Proximity Card (Standard):Compatible with existing MIFARE infrastructures. Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 3/16".

Cylinder:6-pin solid brass "Schlage C" keyway standard with two brass keys per lock.

Rfid Keyfob (Optional):Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 3/16". Interchangeable Core (IC): Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix "IC" before part number.

Weather Resistant:All models are weather resistant for temperature ranges of -30○F ~ 150○F (-35○C ~ 66○C).

Touch Screen:Responds to human touch enabling convenient entrance or access to programming menu. After operation has been completed, the lock reverts to sleep mode

Model:Cal-Royal AT6000, AT6000US26D, AT6000US10B, AT6000US3, AT6000US4, AT6000US26

Master PIN Code- Use for programming the lock and entering Manager and User PIN codes. Can also be use to open the lock and reset to factory settings.

Manager PIN Code- Use to open the door with lock out mode. Also functions like a User PIN code. This feature can also program 3 one-time user codes.

User PIN Code- This feature only opens the lock by entering the code on the touch pad. It won?t be able to program or change settings. This lock can accommodate up to 1000, 3 to 6 digits combined RFID and User PIN codes.   One-Time User PIN Code- Can only be used once. This lock can store up to 3 one-time User PIN code simultaneously.

Passage Mode- Enabling passage mode allows continuous entry for non-restricted traffic. Passage mode can either be enabled or disabled by the Master Pin code. When in passage mode, the unlocked padlock icon will appear on the screen.

Beep & LED Indicators- This indicators can either be programmed for different settings. This feature is useful in making sure that every keypress was successfully entered.

Lock-Out Mode- This feature can either be enabled by the Master or Manager PIN Codes. When enabled, it restricts all User PIN codes access except Master and Manager PIN codes.

SMART Card - Compatible with existing MIFARE infrastructures - Operates at 13.56 MHz in accordance with ISO14443A - Inductive distance up to 1 3/16?

Touch Screen Anti-Tamper Lock Out- This function will auto shut off the lock if an invalid code is entered 5 times in succession to prevent tampering.

Weather Resistant- CR6000 are manufactured making sure that internal electronic parts are protected form moisture, dust water and corrosion. All models are weather resistant for temperature ranges of -30○F ~ 150○F (-35○C ~ +66○C).

Wake-Up Button- Pressing this button activates the number pad. Enter the PIN code when while the number pad is illuminated. This button is also used to quit programming mode.
