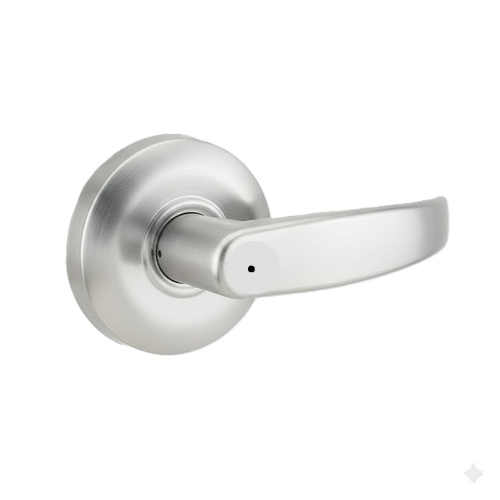

Cal-Royal CRL20 Privacy Lock - with Clutch

Cal-Royal CRL20 Privacy Lock - ANSI F76

Latch bolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside. Turning inside lever or closing door release push button. Clutch: Featuring CLUTCH System, free turning handle to deter breaking of the handle.

ANSI:Grade 2 Lock

Door Range:- 1-3/8" to 1-3/4" thickness doors.

Backset:- 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front- 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike:ASA strike standard, "T" and full lip strike available on request.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed.

Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

Model:Cal-Royal CRL20,Cal-Royal CRL20US26D,Cal-Royal CRL20US1,Cal-Royal CRL20US,3Cal-Royal CRL20US4,Cal-Royal CRL20US10,Cal-Royal CRL20US10BE,Cal-Royal CRL20US26,

ANSI Standards - Meets or exceeds requirements of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim - Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
