Cal-Royal 6660V / F6660V Surface Vertical Rod Panic Bar Exit Device

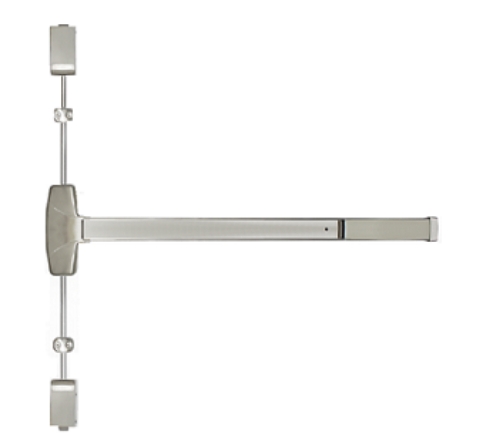

Cal-Royal 6600V / F6600V Surface Vertical Rod Panic Bar Exit Device

For Doors:1 3/4" thick Standard. Optional 2 1/4" thick. 3 3/4" minimum Stile Width required for single door application. 3 1/2" minimum Stile Width required for double door application. Lever, thumb piece and escutcheon trims available.

Top & Bottom Chassis:Steel material for Panic and Fire Grade.

Cover:Aluminum, Zinc or Stainless Steel S304 material. Covers stock hollow metal doors with 161 cut out.

Mounting:Furnished with wood and machine screws. (9) Thru-Bolts are included and standard packaging on fire rated devices.

End Cap:Steel or Stainless Steel S304 construction

End Bracket:Steel material

Hand:Handed. Easily field reversible.

Latch Bolt:Stainless Steel S304 material

Rod Guide:Steel or Stainless Steel S304

ANSI Standard:A156.3, Grade 1

Rail Assembly:Heavy gauge extruded Steel or Stainless Steel S304 body and push pad

Strike:Top Strike, Bottom Strike, Optional Handicap Bottom Strike (See strike page)

Dogging Feature:Allen-type key furnished standard on non-fire labeled devices

UL and ULC Listed:6660V Series for panic. F6660V Series for fire exit hardware for all types of 8' x 8' double doors for up to 3 hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes

Dimensions:Touchbar height to finished floor: 41" (1041mm) at center

Touchbar projection:Neutral 2-5/8" (67mm), Depressed 1-7/8" (48mm)

Center case:8-1/16 x 2 3/4 x 2 1/2 (205 mm X 70 mm X 63 mm

Panic grade top & bottom latch case:4" x 2" x 1 3/4" (102 mm x 51 mm x 44 mm)

Fire grade top & bottom latch case:4" x 2" x 1 3/4" (102 mm x 51 mm x 44 mm)

Top and bottom rod length for 36" x 84" doors:Top rod 37 1/2" (953 mm), bottom rod 33 1/2" (851 mm)

Top and bottom rod length for 48" x 96" doors:Top rod 37 1/2" + 12" ETR (1257 mm), bottom rod 33 1/2" (851 mm)

Vertical Rods:  15/32" (11.9 mm) round tubing

6660V3684, F6660V3684 Actual Length: 32" - Max Cut Down: 6" Door size: 30" to 36" door width - Push Bar Length 21"

6680V4896, F6680V4896 Actual Length: 44" - Max Cut Down: 12" Door size: 36" to 48" door width - Push Bar Length 26 1/2"

Model: Cal Royal, 6660V3684, F6660V3684, 6680V4896, F6680V4896, US32D, US3, US4, US10, US10B, L1 Black

All exit devices must be listed under "Panic Hardware" in the Accident Equipment List of Underwriters' Laboratories, Inc. Where labeled doors are used as exits, they must be equipped with labeled Fire Exit Hardware and UL10C, UBC 7-2-1997 codes

All springs shall be of stainless steel throughout

All exit devices shall be of chassis mounted unit construction

All exit devices shall be ANSI A156.3, Grade 1

All exit devices shall be of touch bar design with smooth operation and be operative over 2/3 of the door's clear opening width
