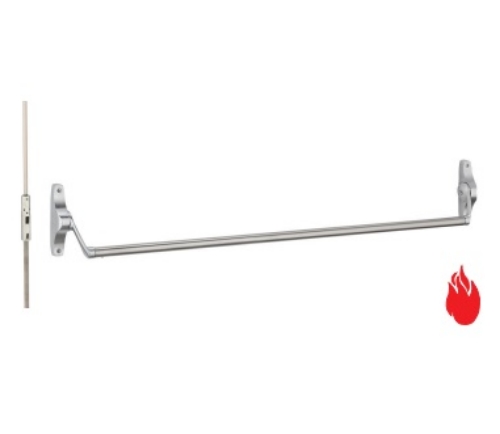

Von Duprin 5547WDC-EO-F Concealed Vertical Rod Fire Rated Device

Von Duprin 5547WDC -EO-F Concealed Vertical Rod Fire Rated Device - Exit Only

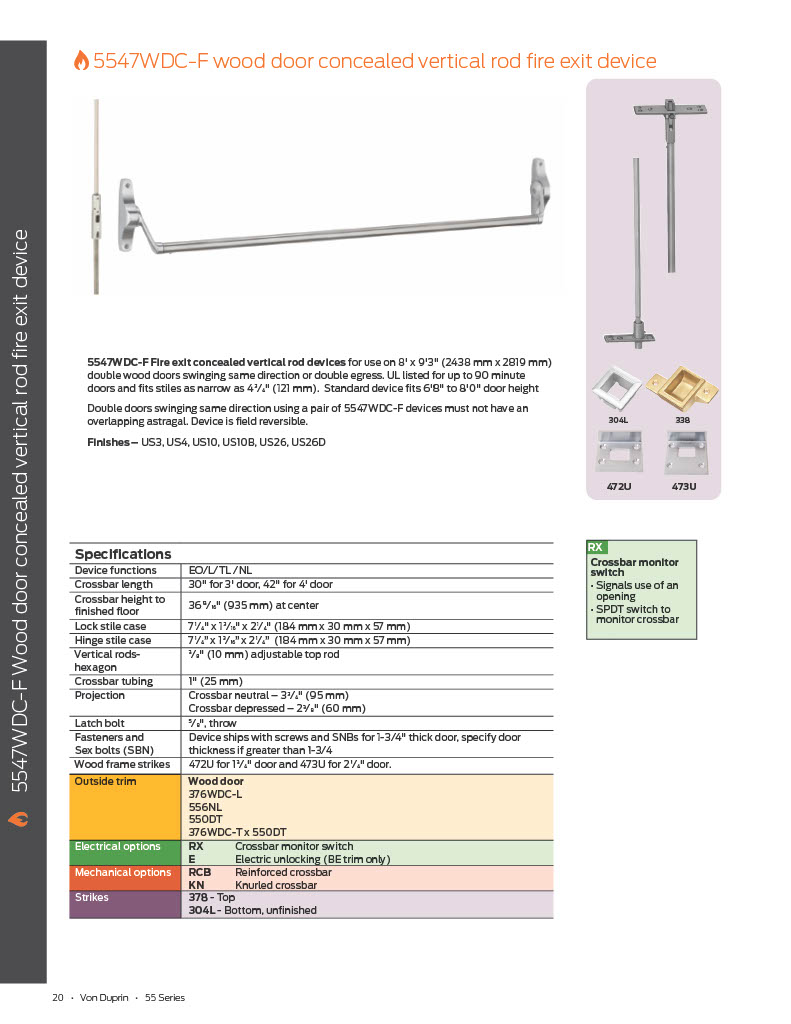

5547WDC-F:fire exit concealed vertical rod devices for use on 8' x 9'3" (2438mm x 2819mm) doublewood doorsswinging same direction or double egress. UL listed for up to 90 minute doors and fits stiles as narrow as 4-3/4" (121mm).

Double doors swinging same direction using a pair of 5547WDC-F devices must not have an overlapping astragal.

Crossbar length:42" (1067mm), Field sizeable.

Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze, US10B - Oil Rubbed Bronze, US26 - Bright Chrome, US26D - Satin Chrome.

Device is furnished with standard 338 and 304L strikes

.

Fasteners::Sex nuts and bolts for mounting are included for 1-3/4" (44mm) and 2-1/4" (57mm) thick doors.

Latch Bolt::5/8" (13mm) throw latch bolt.

Crossbar height to finished floor 36-13/16" (1011mm) at center.

All 55 series exit devices are UL listed for Accident Hazard or Fire Exit Hardware, and are tested in accordance to ANSI A156.3, 1994, Grade I.

Model:Von Duprin 5547WDC-F, 5547WDCEO-F, US10B, US26D
